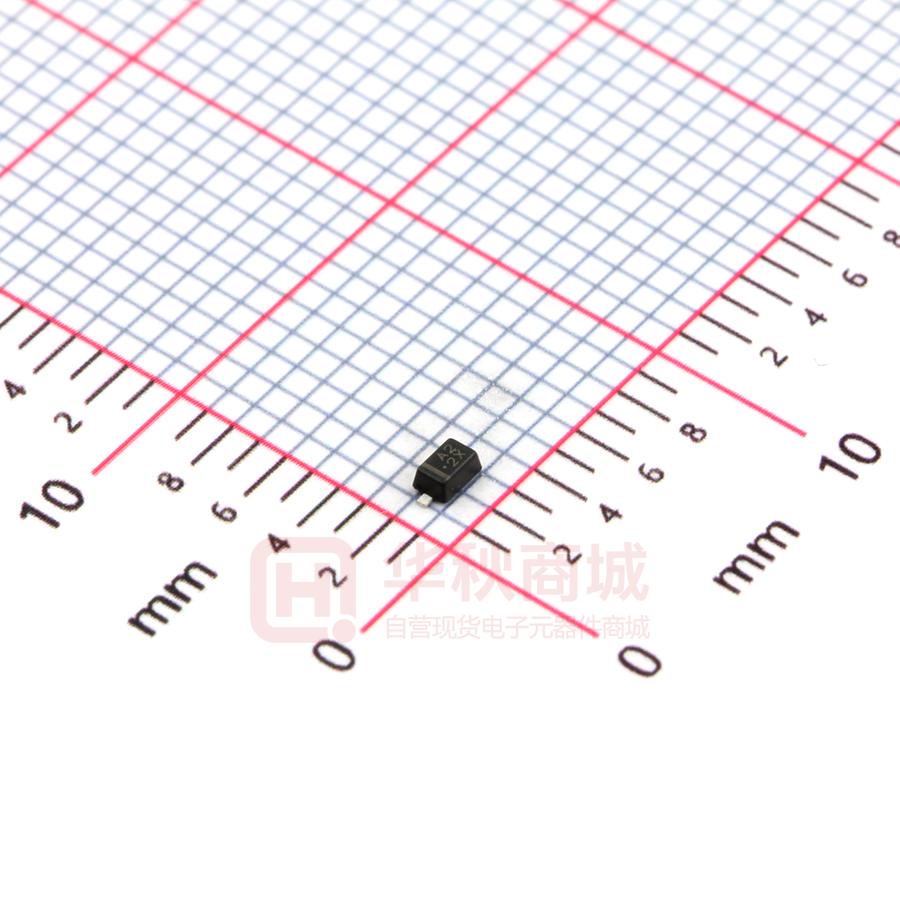

P1N4148WS SURFACE MOUNT SWITCHING DIODES Voltage 100 V 250mW Power SOD-323 Unit: inch(mm) Features       Fast switching speed. Surface mount package Ideally Suited for Automatic insertion Electrically Identical to Standard JEDEC High Conductance Lead free in compliance with EU RoHS 2.0 Green molding compound as per IEC 61249 standard Mechanical Data     Case: SOD-323, plastic Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Approx. Weight: 0.00014 ounces, 0.0041 grams o Maximum Ratings (TA=25 C unless otherwise noted) PARAMETER SYMBOL VALUE UNIT - A2 - Reverse voltage VR 75 V Maximum dc blocking voltage VDC 75 V Peak reverse voltage VRM 100 V RMS voltage VRMS 50 V IF(AV) 200 4 1.5 0.5 mA 250 mW Marking code o Maximum average forward current at TA=25 C 0.001ms 10ms 1s Peak forward surge current IFSM o Power dissipation derate above 25 C PD A 0.715@1mA Maximum forward voltage 0.855@10mA VF V 1@50mA 1.25@150mA Maximum dc reverse current at rated dc blocking voltage Junction capacitance Typical thermal resistance A 2.5@75V CJ 1.5 pF (Note 3) TRR 4 ns (Note 1) RθJA 500 (Note 2) RθJA 650 (Note 4) RθJC 280 (Note 4) RθJL 400 TJ, TSTG -55 to +150 Measured at 1MHz and applied VR=0V Maximum reverse recovery time 0.025@20V IR Operating and storage temperature range o C/W o C Note : 1. Mounted on a FR4, single-sided copper, with 50 x 15mm PCB. 2. Mounted on a FR4, single-sided copper, with mini pad. 3. From IF=10mA to IR=1mA, VR=6Volts, RL=100Ω. 2 4. Mounted on a FR-4 PCB, single-sided copper, mini pad, with 100cm copper pad area. March 12,2019-REV.12 Page 1 P1N4148WS TYPICAL CHARACTERISTIC CURVES Fig.1 Power Derating Curve Fig.2 Typical Reverse Characteristics Fig.3 Typical Forward Characteristics March 12,2019-REV.12 Page 2 P1N4148WS Part No Packing Code Version Part No Packing Code Package Type Packing Type Marking Version 1N4148WS_R1_00001 SOD-323 5K pcs / 7” reel A2 Halogen free 1N4148WS_R2_00001 SOD-323 12K pcs / 13” reel A2 Halogen free Mounting Pad Layout March 12,2019-REV.12 Page 3 P1N4148WS Disclaimer ● Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. ● Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. ● Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. ● Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, noninfringement and merchantability. ● Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. ● The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. ● Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. March 12,2019-REV.12 Page 4
