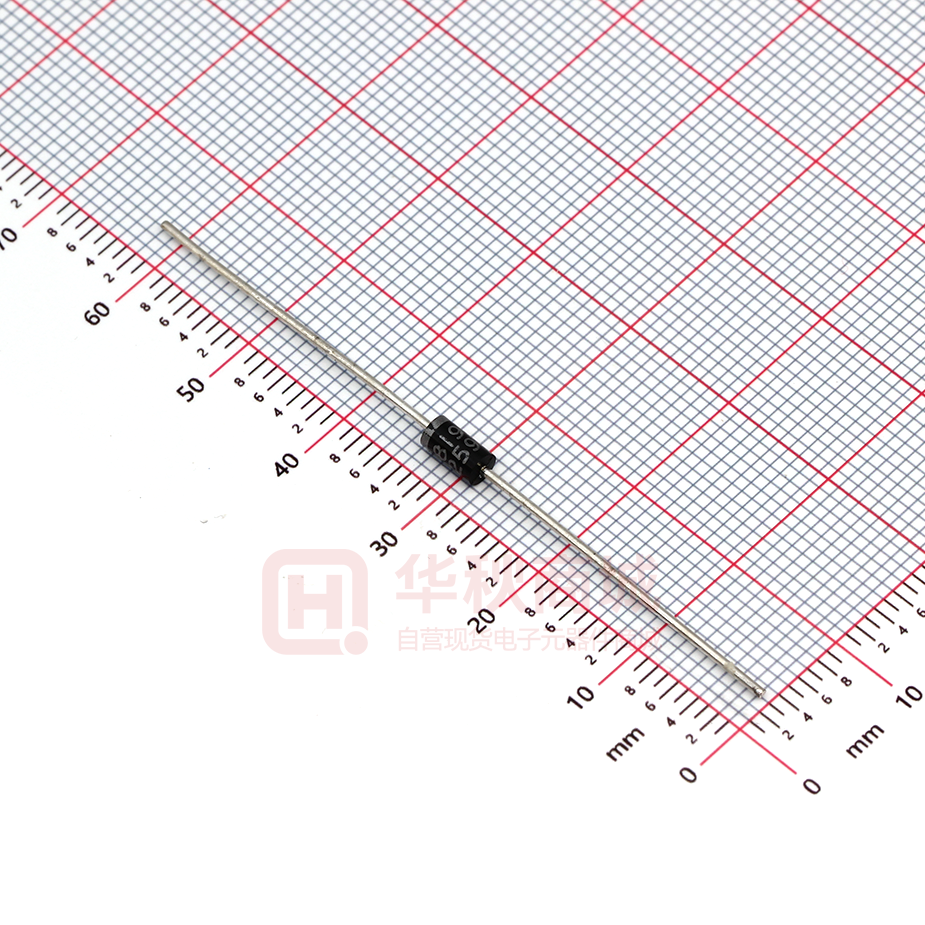

1N5819_AY_10001

1N5817~1N5819 SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 40 Volt 1 Ampere CURRENT FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. 0.034(0.86) 0.028(0.71) 0.107(2.7) 0.080(2.0) 1.0(25.4)MIN. • Lead free in compliance with EU RoHS 2011/65/EU directive 0.160(4.1) 0.205(5.2) • For use in low voltage,high frequency inverters ,free wheeling ,and polarity protection applications . MECHANICAL DATA • Case: DO-41 Molded plastic • Terminals: Axial leads, solderable per MIL-STD-750,Method 2026 • Polarity: Color band denotes cathode • Weight: 0.0118 ounces, 0.336 grams 1 Cathode 2 Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. PAR A M ET E R SY MBOL 1 N5 8 1 7 1 N5 8 1 8 1 N5 8 1 9 UNI T S M a ximum R e c ur r e nt P e a k R e ve r s e Vo lt a g e V RRM 20 30 40 V M a ximum R M S Vo lt a g e VRMS 14 21 28 V M a ximum D C B lo c k ing Vo lt a g e V DC 20 30 40 V M a ximum A ve r a g e F o r w a r d C ur r e nt 0 . 3 7 5 " ( 9 . 5 mm) le a d l e ng t h ( Se e F i g ur e 1 ) I F ( AV ) 1 A P e a k F o r w a r d S ur g e Cur r e nt : 8 . 3 ms s ing le ha lf s i ne - w a ve s up e r imp o s e d o n r a t e d lo a d I FSM 25 A M a ximum F o r w a r d Vo lt a g e a t 1 A D C M a ximum F o r w a r d Vo lt a g e a t 3 A D C VF M a ximum D C R e ve r s e C ur r e nt a t Ra t e d D C B lo c k ing T J = 2 5 O C Vo lt a g e T J= 1 0 0OC IR 0.2 10 R θJ A 80 Ty p i c a l T he r ma l R e s is t a nce O p e r a t ing J unc t i o n a nd S t o r a g e Te mp e r a t ur e Ra ng e April 20,2016­REV.08 T J, T STG 0.47 0.75 0.55 0.875 -55 to +125 0.6 0.9 V mA O -55 to +150 C / W O C PAGE . 1 Percent of Reverse Voltage (%) 1N5817~1N5819 120 100 80 60 20~30V 40 40V 20 0 0 25 50 75 100 125 150 TJ, Junction Temperature (°C) Fig.6 Operating Temperature Derating Curve April 20,2016­REV.08 PAGE . 2 1N5817~1N5819 Part No_packing code_Version 1N5817_AY_00001 1N5817_AY_10001 1N5817_B0_00001 1N5817_B0_10001 1N5817_R2_00001 1N5817_R2_10001 For example : RB500V-40_R2_00001 Serial number Version code means HF Part No. Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING April 20,2016­REV.08 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 3 1N5817~1N5819 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. April 20,2016­REV.08 PAGE . 4
