1SS400
SURFACE MOUNT SWITCHING DIODE

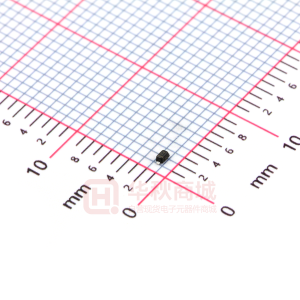

This device is an extremely fast switching diode housed in the ultra-small SOD-523 package. Ideal for applications where board space is at a SOD-523
FEATURES
Extremely fast reverse recovery time to reduce switching losses Very low capacitance for reduced insertion losses Reverse voltage rating of 80V Also available in lead-free plating (100% matte tin finish) Cathode Band Indicates Polarity
APPLICATIONS
Mobile phones and accessories Hand-held computers High Speed Switching Applications
Marking Code: 14
MAXIMUM RATINGS
Rating Peak Reverse Voltage Continuous Reverse Voltage Continuous Forward Current
TJ = 25°C Unless otherwise noted Symbol VRM VR IF I FSM P tot TJ Tstg Value 90 80 225 500 200 -55 to +150 -55 to +150 Units V V mA mA mW °C °C
Non-repetitive Peak Forward Current, t = 1sec, Square Wave Total Power Dissipation (Note 1) Operating Junction Temperature Range Storage Temperature Range
Note 1. FR-5 Board 1.0 x 0.75 x 0.062 in.
THERMAL CHARACTERISTICS
Characteristic Thermal Resistance, Junction to Ambient Symbol R thja Value 625 Units °C/W
8/25/2005
Page 1
www.panjit.com
1SS400
ELECTRICAL CHARACTERISTICS
Parameter Forward Voltage (Note 2) Reverse Leakage Current Junction Capacitance Reverse Recovery Time (See Figure 1) Symbol VF IR CD t rr Tj = 25°C Unless otherwise noted
Conditions I F = 100mA V R = 80V 0.5Vdc Bias, f =1 MHz I F = 10mA, I R= 10mA R L= 100 Ohms; measured at IRrec = 1mA
Min -
Typ 0.7 -
Max 1.2 0.1 2.0 4.0
Units V
uA
pF ns
Note 2. Short duration pulse test to avoid self-heating effect
820 Ω
+10 V
2 .0 k Ω
100 µH 0 .1 µ F IF
0 .1 µ F
?
DUT
5 0 Ω O u tp u t P u ls e G e n e ra to r
5 0 Ω In p u t S a m p li n g O s c il lo s c o p e
Notes: 1. A 2.0kΩ variable resistor adjusted for a forward current (IF) to 10mA 2. Input pulse is adjusted to IR(peak) is equal to 10mA
F igure 1. REVERSE RECOVERY TIME EQUIVALENT TEST CIRCUIT
8/25/2005
Page 2
www.panjit.com
1SS400
TYPICAL CHARACTERISTIC CURVES
100 TJ = 150 °C
Reverse Leakage Current, I R ( uA)
10.000 TJ = 150 °C 1.000
Forward Current, IF ( mA)
10 TJ = 25 °C TJ = 75 °C 1 TJ = -25 °C 0.1 0.0 0.2 0.4 0.6 0.8 1.0 1.2 Forward Voltage, VF (V)
0.100
TJ = 75 °C
0.010
TJ = 25 °C
0.001 0 20 40 Reverse Voltage, V R (V) 60 80
Fig. 2. Typical Forward Characteristics
Fig. 3. Typical Reverse Characteristics
0.8
0.6
Capacitance (pF)
0.4
0.2
0.0 0 10 20 30 40 50 60 Reverse Voltage, V R (V)
Fig. 4. Typical Capacitance
8/25/2005
Page 3
www.panjit.com
1SS400
PACKAGE LAYOUT AND SUGGESTED PAD DIMENSIONS
ORDERING INFORMATION
1SS400 T/R7 - 7" reel, 3K units per reel 1SS400 T/R13 - 13" reel, 10K units per reel
Copyright PanJit International, Inc 2005
The inform ation presented in this docum ent is believed to be accurate and reliable. The specifications and inform ation herein are subject to change without notice. Pan Jit m akes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose. Pan Jit products are not authorized for use in life support devices or system s. Pan Jit does not convey any license under its patent rights or rights of others.
8/25/2005
Page 4
www.panjit.com
