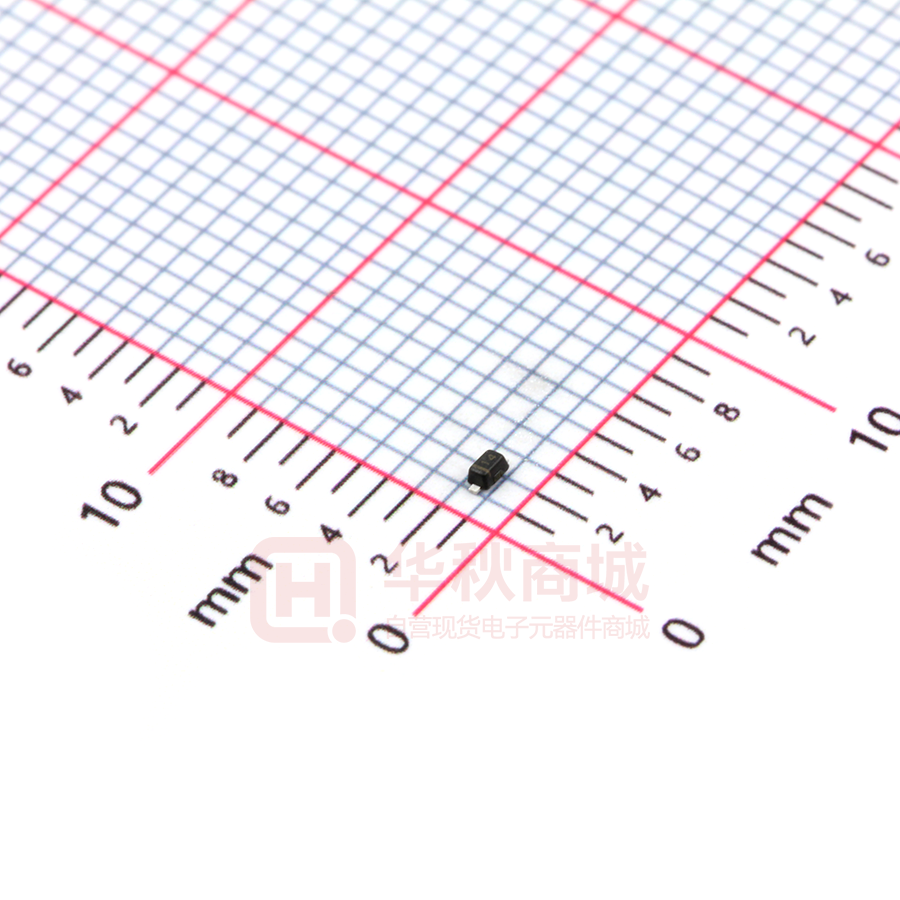

1SS400_R1_00001

厂商：
PANJIT(强茂)
封装：
SOD-523(SC-79)
描述：
开关二极管 VR=90V Ir=100nA SOD523

数据手册：

下载1SS400_R1_00001.pdf

立即购买

详情介绍
数据手册
价格&库存

1SS400_R1_00001 数据手册

1SS400 SURFACE MOUNT SWITCHING DIODE This device is an extremely fast switching diode housed in the ultra-small SOD-523 package. Ideal for applications FEATURES • Extremely fast reverse recovery time to reduce switching losses • Very low capacitance for reduced insertion losses 0.050(1.25) 0.045(1.15) • Reverse voltage rating of 80V • Also available in lead-free plating (100% matte tin finish) 0.014(0.35) 0.009(0.25) 0.034(0.85) 0.029(0.75) 0.026(0.65) 0.021(0.55) • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std..(Halogen Free) 0.006(0.15) 0.002(0.05) 0.067(1.70) 0.059(1.50) MECHANICAL DATA 0.20 MIN. • Case: SOD-523, Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Polarity : Color band denotes cathode end • Approx.Weight : 0.0014 ounces, 0.0001 grams • Marking : 14 MAXIMUM RATINGS TJ = 25OC UNLESS OTHERWISE NOTED SYMBOL LIMITS UNITS VRM 90 V Continuous Reverse Voltage VR 80 V Continuous Forward Current IF 225 mA Non-repetitive Peak Forward Current , t = 0.001ms, Square Wave I FSM 4 A Total Power Dissipation (Note1) P to t 200 mW TJ,TSTG -55 to 150 O SYMBOL LIMITS UNITS RθJA 625 PARAMETER Peak Reverse Voltage Operating Junction and Storage Temperature Range C Note 1. FR-5 Board 1.0 x 0.75 x 0.062 in THERMAL CHARACTERISTICS PARAMETER Thermal Resistance, Junction to Ambient O 1 Cathode April 8,2016-REV.03 C/W 2 Anode PAGE . 1 1SS400 ELECTRICAL CHARACTERISTICS TJ = 25OC UNLESS OTHERWISE NOTED PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS Forward Voltage (Note 2) VF I F = 100mA - - 1.2 V Reverse Leakage Current IR V R = 80V - - 0.1 μA Junction Capacitnace CD 0Vdc Bias, f = 1MHz - 3 - pF Reverse Recovery Time (See Figure 1) trr I F = 10mA, I R = 10mA RL = 100 Ohms; measured at I Rrec = 1mA - - 4.0 ns Note 2. Short duration pulse test to avoid self-heating effect Figure 1. Reverse Recovery Time Equivalent Test Circuit April 8,2016-REV.03 PAGE . 2 1SS400 3.0 2.25 1.5 0.75 0.0 April 8,2016-REV.03 PAGE . 3 1SS400 MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 5K per 7" plastic Reel April 8,2016-REV.03 PAGE . 4 1SS400 Part No_packing code_Version 1SS400_R1_00001 1SS400_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING April 8,2016-REV.03 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 1SS400 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. April 8,2016-REV.03 PAGE . 6

下载 PDF

1SS400_R1_00001

物料型号：1SS400

器件简介：这是一种超快速开关二极管，封装在超小型SOD-523封装中，适用于需要快速切换的应用。

特点： - 极快的反向恢复时间，以减少开关损耗。 - 非常低的电容，以减少插入损耗。 - 反向电压等级为80V。 - 也提供无铅镀层（100%亚光锡表面处理）。 - 符合EU RoHS 2011/65/EU指令的无铅。 - 符合IEC61249标准的绿色模塑化合物（无卤）。

机械数据： - 封装类型：SOD-523，塑料。 - 极性：色带表示阴极端。 - 大约重量：0.0014盎司，0.0001克。 - 标记：14。

最大额定值： - 峰值反向电压：90V。 - 连续反向电压：80V。 - 连续正向电流：225mA。 - 非重复峰值正向电流（0.001ms方波，t=0.001ms）：4A。 - 总功率耗散：200mW。 - 工作结和存储温度范围：-55至150°C。

热特性： - 结到环境的热阻：625°C/W。

电气特性： - 正向电压（IF=100mA）：最小值为空，典型值为1.2V。 - 反向漏电流（VR=80V）：最小值为空，最大值为0.1A。 - 结电容（0Vdc偏置，f=1MHz）：最小值为3pF。 - 反向恢复时间（见图1）：在IF=10mA，IR=10mA，RL=100Ω的条件下，测量值为4.0ns。

典型特性曲线：文档提供了正向特性、反向特性和典型电容的图表。

安装垫布局：提供了SOD-523封装的安装垫布局尺寸。

订单信息：提供了包装信息和订单示例。

免责声明：文档最后包含了PANJIT国际公司的免责声明，强调了对文档信息的复制和修改需要获得许可，公司保留随时更改文档内容的权利，并且不承担因应用或使用产品而产生的任何责任。
