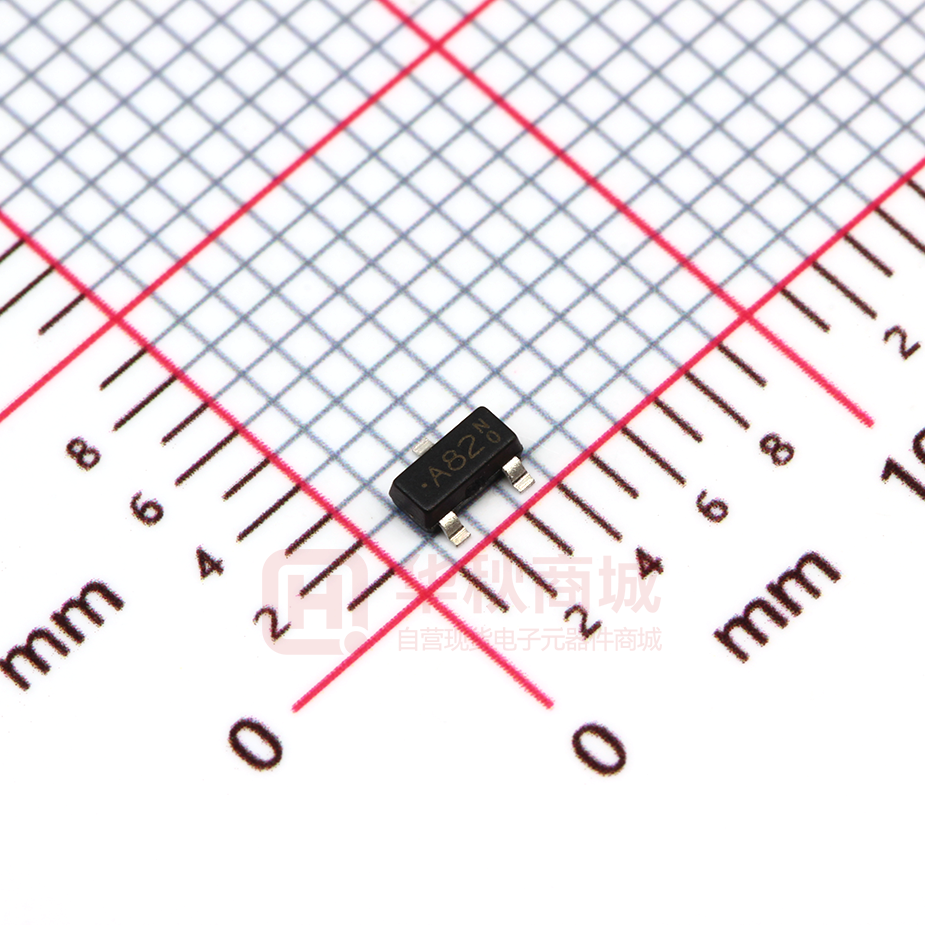

PBAS16~BAS21 SURFACE MOUNT SWITCHING DIODES 100~250 V Voltage 350 mW POWER       0.006(0.15)MIN. Features 0.120(3.04) Fast switching speed. Surface mount package Ideally Suited for Automatic insertion Electrically Identical to Standard JEDEC High Conductance Lead free in compliance with EU RoHS 2.0 Green molding compound as per IEC 61249 standard 0.110(2.80) 0.056(1.40) 0.047(1.20) Mechanical Data 0.008(0.20) 0.079(2.00) 0.003(0.08) 0.070(1.80)  Case: SOT-23, Plastic  Terminals: Solder plated, solderable per MIL-STD-750, Method 2026  Approx. Weight: 0.0003 ounces, 0.0084 grams 0.004(0.10) 0.044(1.10) 0.000(0.00) 0.035(0.90) 0.020(0.50) 0.013(0.35) o Maximum Ratings (TA=25 C unless otherwise noted) PARAMETER SYMBOL Marking Code BAS16 BAS19 BAS20 BAS21 A6 A8 A80 A82 UNIT Reverse Voltage VR 75 100 150 200 V Peak Reverse Voltage VRM 100 120 200 250 V IO 250 200 200 200 mA IFSM 2 2.5 2.5 2.5 A PTOT 350 350 350 350 mW VF 0.855@10mA 1.0@100mA V IR 1 1 1 1 A Typical Junction Capacitance (Notes1) CJ 2 1.5 1.5 1.5 pF Maximum Reverse Recovery Time (Note 2) TRR 6 50 50 50 nS Typical Thermal Resistance (Note 3) RθJA 357 TJ,TSTG -55 to +150 Rectified Current (Average), Half Wave Rectification With Resistive Load And f >50Hz Peak Forward Surge Current, tp=1s Single Half Sine-Wave Superimposed On Rated Load Power Dissipation Derate Above 25 oC Maximum Forward Voltage 1.0@100mA 1.0@100mA Maximum Dc Reverse Current At Rated Dc Blocking Voltage TJ=25 oC Operating Junction Temperature And Storage o C/W o C Temperature Range NOTES : 1. CJ at VR=0, f=1MHz 2. From IF=10mA to IR =1mA, VR=6Volts, RL=100 3. Mounted on a FR-4 PCB, single-sided copper, with 100cm2 copper pad area. September 27,2018-REV.05 Page 1 PBAS16~BAS21 September 27,2018-REV.05 Page 2 PBAS16~BAS21 MOUNTING PAD LAYOUT ORDER INFORMATION ˙Packing information T/R – 12K per 13" plastic Reel T/R – 3K per 7" plastic Reel September 27,2018-REV.05 Page 3 PBAS16~BAS21 Part No_packing code_Version BAS16_R1_00001 BAS16_R2_00001 For example : RB500V-40_R2_00001 ˙Serial number ˙ ˙Version code means HF Part No. ˙Packing size code means 13" ˙Packing type means T/R Packing Code XX Version Code XXXXX st nd Packing type 1 Code Packing size code 2 Code HF or RoHS 1 Code 2 ~5 Code Tape and Ammunition Box (T/B) A N/A 0 HF 0 serial number Tape and Reel (T/R) R 7" 1 RoHS 1 serial number Bulk Packing (B/P) B 13" 2 Tube Packing (T/P) T 26mm X Tape and Reel (Right Oriented) (TRR) S 52mm Y Tape and Reel (Left Oriented) (TRL) L PANASERT T/B CATHODE UP (PBCU) U FORMING F PANASERT T/B CATHODE DOWN (PBCD) D September 27,2018-REV.05 st nd th Page 4 PBAS16~BAS21 Disclaimer ● Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. ● Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. ● Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. ● Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. ● Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. ● The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. ● Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. September 27,2018-REV.05 Page 5
