BAS70 SERIES
SURFACE MOUNT SCHOTTKY DIODES
VOLTAGE
70 Volt
CURRENT
0.2 Ampere
0.006(0.15)MIN.
FEATURES
0.120(3.04)
• Fast switching speed
0.110(2.80)
• Surface mount package ideally suited for automatic insertion
Electrical identical standard JEDEC
• Lead free in compliance with EU RoHS 2011/65/EU directive
0.056(1.40)
0.047(1.20)
• Green molding compound as per IEC61249 Std. .
(Halogen Free)
0.008(0.20)
0.079(2.00)
0.003(0.08)
0.070(1.80)
MECHANICAL DATA

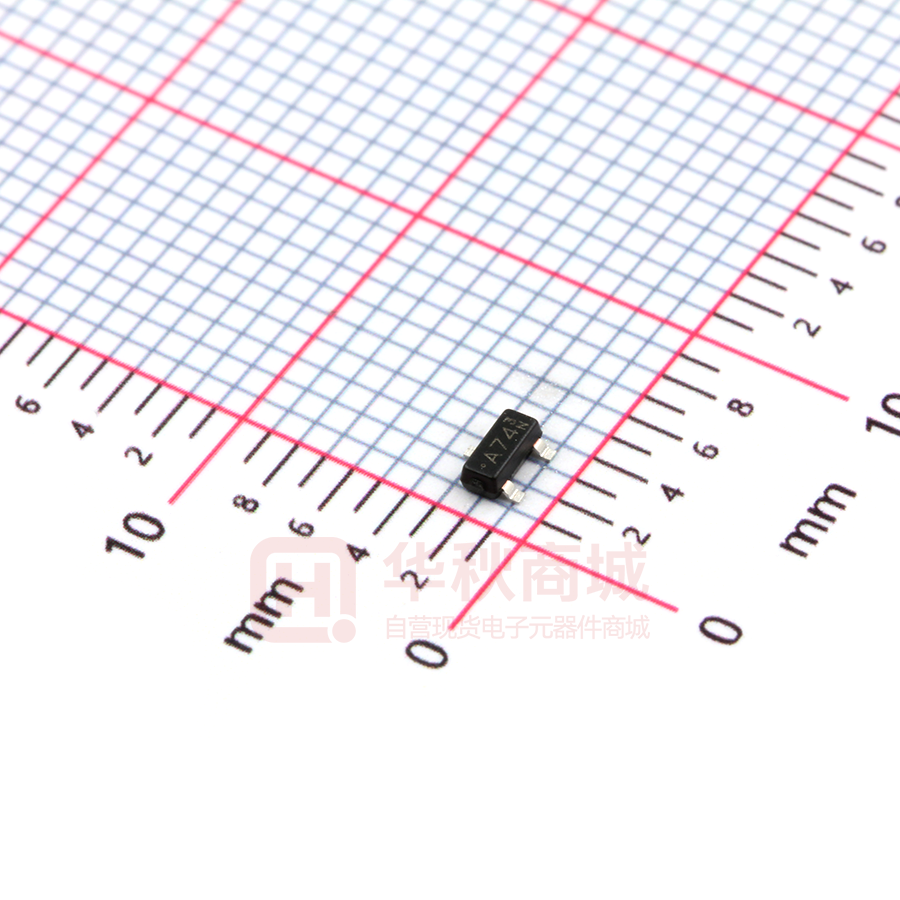

• Case: SOT-23, Plastic
0.044(1.10)
0.004(0.10)
0.035(0.90)
0.000(0.00)
• Terminals: Solderable per MIL-STD-750, Method 2026
0.020(0.50)
0.013(0.35)
• Approx. Weight: 0.0003 ounces, 0.008 grams
ABSOLUTE RATINGS
Parameter
Symbol
Value
Units
VR
70
V
Peak Reverse Voltage
VRRM
70
V
Average Rectified Current at Temp=25 OC
I F(AV )
0.2
A
Non-repetitive Peak Forward Surge Current at
t=1.0 s
I FSM
0.6
A
Reverse Voltage
THERMAL CHARACTERISTICS
Parameter
Marking code
Power Dissipation
Symbol
BAS70
BAS70A
BAS70C
BAS70S
Units
-
A70
A72
A73
A74
-
PD
225
RθJA
556
Operating Junction Temperature
TJ
-55 to 150
O
Operating Storage Temperature
TSTG
-55 to 150
O
Thermal Resistance , Junction to Ambient (Note 1)
Circuit Configuration
-
SINGLE
COMMON
ANODE
mW
O
C/W
C
C
COMMON
CATHODE
SERIES
-
Note : 1.Mounted on min pad conditions using FR-4 PCB
April 25,2016-REV.04
SINGLE
COMMON ANODE
FIG.14
FIG.15
COMMON CATHODE
FIG.16
SERIES
FIG.17
PAGE . 1
BAS70 SERIES
ELECTRICAL CHARACTERISTICS
Parameter
Symbol
Test Condition
Min.
Typ.
Max.
Units
V (BR)
I R=10 uA
70
--
--
V
Reverse Current
IR
VR=70 V
VR=50 V
--
--
1.0
0.1
μA
Forward Voltage
VF
I F=1.0mA
I F=10mA
I F=15mA
--
--
0.41
0.75
1.00
V
Maximum Junction Capacitance
CJ
VR=0V, f=1.0MHZ
--
--
2.0
pF
Reverse Breakdown Voltage
April 25,2016-REV.04
PAGE . 2
BAS70 SERIES
100
REVERSE CURRENT, u A
FORWARD CURRENT, mA
100
10
1.0
T A =25 C
O
0.1
0
0.4
0.6
O
1.0
T A =75 C
O
0.1
0.01
0
0.8
T A =125 C
10
T A =25 C
O
0
FIG. 1 TYPICAL FORWARD CHARACTERISTIC
30
40
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
400
1.2
0.8
0.4
0
10
20
30
40
AVERAGE FORWARD CURRENT, mA
JUNCTION CAPACITANCE, pF
20
REVERSE VOLTAGE, Volts
FORWARD VOLTAGE, Volts
0
10
300
200
100
0
REVERSE VOLTAGE, Volts
50
100
150
200
AMBIENT TEMPERATURE( OC)
FIG. 3 TYPICAL JUNCTION CAPACITANCE
FIG. 4 FORWARD CURRENT DERATING
80
Reverse Voltage (V)
70
60
50
40
30
20
10
0
0
25
50
75
100
125
150
TJ, Junction Temperature (°C)
Fig.5 Operating Temperature Derating Curve
April 25,2016-REV.04
PAGE . 3
BAS70 SERIES
0.035 MIN.
(0.90) MIN.
MOUNTING PAD LAYOUT
0.078
(2.00)
0.037
(0.95)
0.043
(1.10)
0.031 MIN.
(0.80) MIN.
0.043
(1.10)
0.106
(2.70)
ORDER INFORMATION
• Packing information
T/R - 12K per 13" plastic Reel
T/R - 3K per 7" plastic Reel
April 25,2016-REV.04
PAGE . 4
BAS70 SERIES
Part No_packing code_Version
BAS70_R1_00001
BAS70_R2_00001
For example :
RB500V-40_R2_00001
Serial number
Version code means HF
Part No.
Packing size code means 13"
Packing type means T/R
Packing Code XX
Packing type
Tape and Ammunition Box
(T/B)
Tape and Reel
(T/R)
Bulk Packing
(B/P)
Tube Packing
(T/P)
Tape and Reel (Right Oriented)
(TRR)
Tape and Reel (Left Oriented)
(TRL)
FORMING
April 25,2016-REV.04
Version Code XXXXX
1st Code
Packing size code
A
N/A
0
HF
0
serial number
R
7"
1
RoHS
1
serial number
B
13"
2
T
26mm
X
S
52mm
Y
L
F
PANASERT T/B CATHODE UP
(PBCU)
PANASERT T/B CATHODE DOWN
(PBCD)
2nd Code HF or RoHS 1st Code 2nd~5th Code
U
D
PAGE . 5
BAS70 SERIES
Disclaimer
• Reproducing and modifying information of the document is prohibited without permission
from Panjit International Inc..
• Panjit International Inc. reserves the rights to make changes of the content herein the
document anytime without notification. Please refer to our website for the latest
document.
• Panjit International Inc. disclaims any and all liability arising out of the application or use of
any product including damages incidentally and consequentially occurred.
• Panjit International Inc. does not assume any and all implied warranties, including warranties
of fitness for particular purpose, non-infringement and merchantability.
• Applications shown on the herein document are examples of standard use and operation.
Customers are responsible in comprehending the suitable use in particular applications.
Panjit International Inc. makes no representation or warranty that such applications will be
suitable for the specified use without further testing or modification.
•
The products shown herein are not designed and authorized for equipments requiring high
level of reliability or relating to human life and for any applications concerning life-saving
or life-sustaining, such as medical instruments, transportation equipment, aerospace
machinery et cetera. Customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages
resulting from such improper use or sale.
• Since Panjit uses lot number as the tracking base, please provide the lot number for tracking
when complaining.
