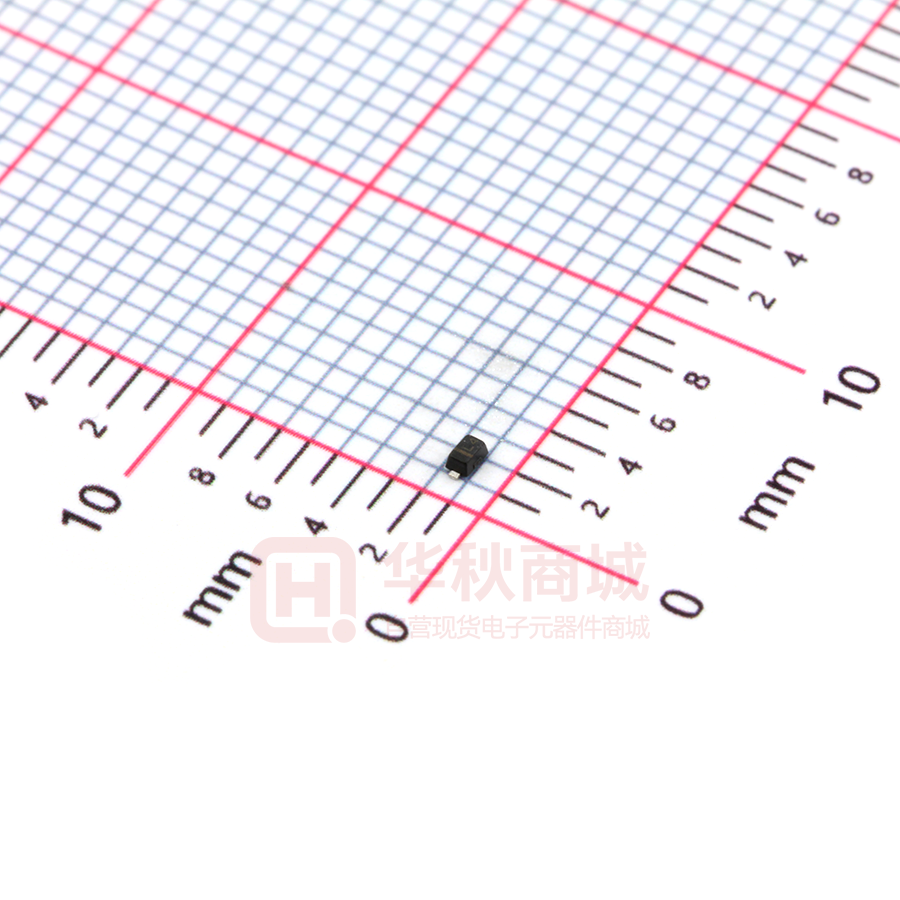

BAT54TS_R1_00001

BAT54TS SURFACE MOUNT SCHOTTKY BARRIER VOLTAGE 30 Volt CURRENT 0.20 Ampere FEATURES • Low turn-on voltage 0.050(1.25) 0.045(1.15) • Fast switching • PN junction guard ring for transient and ESD protection • Lead free in compliance with EU RoHS 2011/65/EU directive 0.014(0.35) 0.009(0.25) 0.034(0.85) 0.029(0.75) 0.026(0.65) 0.021(0.55) • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.006(0.15) 0.002(0.05) 0.067(1.70) 0.059(1.50) MECHANICAL DATA • Case: SOD-523, Plastic 0.20 MIN. • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.0001 ounces, 0.0014 grams • Polarity: Color band denotes cathode end • Marking: L4 1 Cathode 2 Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. For capacitive load, derate current by 20%. P a r a me t e r Symbol Va lue Uni t s P e a k Re p e t it ive Re ve r s e Vo lt a g e V RRM 30 V M a ximum A ve r a g e F o r w a r d Cur r e nt a t T A = 7 5 O C I F ( AV) 0.2 A P e a k F o r w a r d S ur g e C ur r e nt , 1 s s i ng le ha lf s ine - w a ve s up e r imp o s e d o n r a t e d l o a d I F SM 0.6 A 0.32 0.6 V 2 μA pF M a ximum I ns t a nt a ne o us F o r w a r d Vo lt a g e @ I F = 1 mA @ I F = 1 0 0 mA VF M a ximum D C R e ve r s e C ur r e nt a t R a t e d D C B lo c k ing Vo l t a g e @ V R = 2 5 V I J unc t io n C a p a c it a nc e a t V R = 1 V CJ 10 R θJA 667 T J , T STG -55 t o + 125 T he r ma l Re s is t a nc e , J unc t io n t o A mb ie nt O p e r a t i ng J unc t io n a nd S t o r a g e Te mp e r a t ur e R a ng e September 19,2016-REV.06 R O C/ W O C PAGE . 1 BAT54TS TYPICAL CHARACTERISTIC CURVES Fig.1 Forward Current Derating Curve Fig.2 Typical Junction Capacitance Fig.3 Typical Reverse Characteristics Fig.4 Typical Forward Characteristics Fig.5 Operating Temperature Derating Curve September 19,2016-REV.06 PAGE . 2 BAT54TS MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 5K per 7" plastic Reel September 19,2016-REV.06 PAGE . 3 BAT54TS Part No_packing code_Version BAT54TS_R1_00001 BAT54TS_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING September 19,2016-REV.06 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 BAT54TS Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. September 19,2016-REV.06 PAGE . 5
