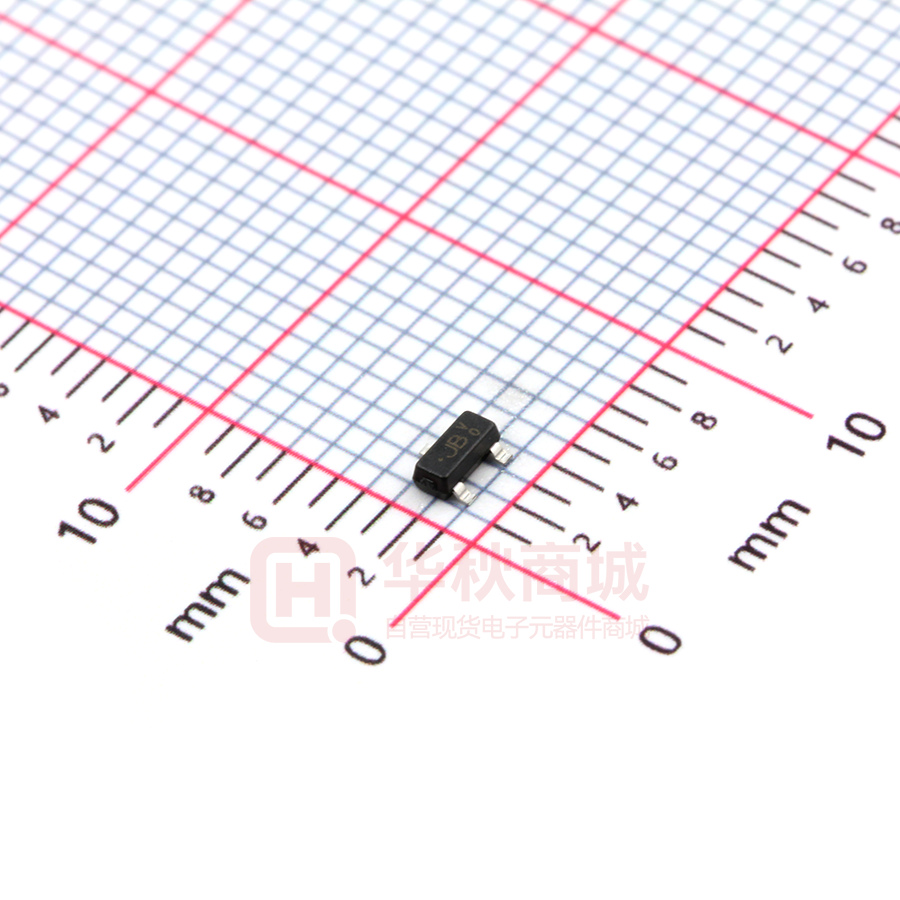

BAV99-AU

BAW56-AU / BAV70-AU / BAV99-AU / BAL99-AU SURFACE MOUNT SWITCHING DIODES VOLTAGE 100 Volt POWER 250mWatt 0.006(0.15)MIN. FEATURES 0.120(3.04) • Fast switching speed. 0.110(2.80) • Surface mount package ideally suited for automatic insertion • Electrically identical to Standard JEDEC • High Conductance • AEC-Q101 qualified 0.056(1.40) • Lead free in compliance with EU RoHS 2.0 0.047(1.20) • Green molding compound as per IEC 61249 standard 0.008(0.20) 0.079(2.00) 0.003(0.08) 0.070(1.80) MECHANICAL DATA 0.044(1.10) 0.004(0.10) 0.000(0.00) • Case: SOT-23, Plastic 0.035(0.90) 0.020(0.50) • Terminals: Solderable per MIL-STD-750, Method 2026 0.013(0.35) • Apporx. Weight: 0.0003 ounce, 0.0084 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. For capacitive load, derate current by 20%. PA R A M E T E R S Y M B O L B AW 5 6 - A U B AV 7 0 - A U M a r k i ng Co d e - JC B AV 9 9 - A U BAL99-AU UNI T S JB JF - JA R e ve r s e Vo l t a g e VR 75 V P e a k R e ve r s e Vo l t a g e V RM 100 V R e c t i f i e d C ur r e nt ( A ve r a g e ) , Ha l f W a ve R e c t i f i c a t i o n w i t h R e s is t i ve L o a d a n d f > 5 0 Hz I 150 mA P e a k F o r w a r d S ur g e C ur r e nt , 0 . 0 0 1 ms I F SM 4. 0 A P o w e r D i s s i p a t i o n De r a t e A b o ve 2 5 O C P TO T 250 mW M a xi mum F o r w a r d Vo l t a g e VF 0 . 7 1 5 @ I F = 1 mA 0 . 8 5 5 @ I F = 1 0 mA 1 . 0 @ I F = 5 0 mA 1 . 2 5 @ I F = 1 5 0 mA V M a xi mum D C Re ve r s e C ur r e nt a t 2 5 V 75V IR 0. 03 2.5 μA M a xi mum J unc t io n C a p a c i t a nc e ( No t e s 1 ) CJ 1.5 pF ns M a xi mum R e ve r s e R e c o ve r y Ti me ( No t e s 2 ) O t rr 4. 0 Ty p ic a l T he r ma l R e s i s t a nc e R θJ A R θJ C 360 205 J unc t io n Te mp e r a t ur e R a ng e TJ -55 t o +150 C i r c ui t F ig ur e - Co mmo n A no d e C o mmo n C a t ho d e O Ser ies C / W O S i ng l e ( A lt ) COMMON ANODE COMMON CATHODE SERIES SINGLE(Alt) Fig.15 Fig.16 Fig.17 Fig.18 C - NOTE: 1. CJ at VR=0, f=1MHz 2.From IF=10mA to IR=1mA, VR=6Volts, RL=100Ω January 17,2019-REV.03 PAGE . 1 BAW56-AU / BAV70-AU / BAV99-AU / BAL99-AU January 17,2019-REV.03 PAGE . 2 BAW56-AU / BAV70-AU / BAV99-AU / BAL99-AU MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7" plastic Reel January 17,2019-REV.03 PAGE . 3 BAW56-AU / BAV70-AU / BAV99-AU / BAL99-AU Part No_packing code_Version BAW56-AU_R1_000A1 BAW56-AU_R2_000A1 For example : RB500V-40_R2_00001 Serial number Version code means HF Packing size code means 13" Part No. Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING January 17,2019-REV.03 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 BAW56-AU / BAV70-AU / BAV99-AU / BAL99-AU Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. January 17,2019-REV.03 PAGE . 5
