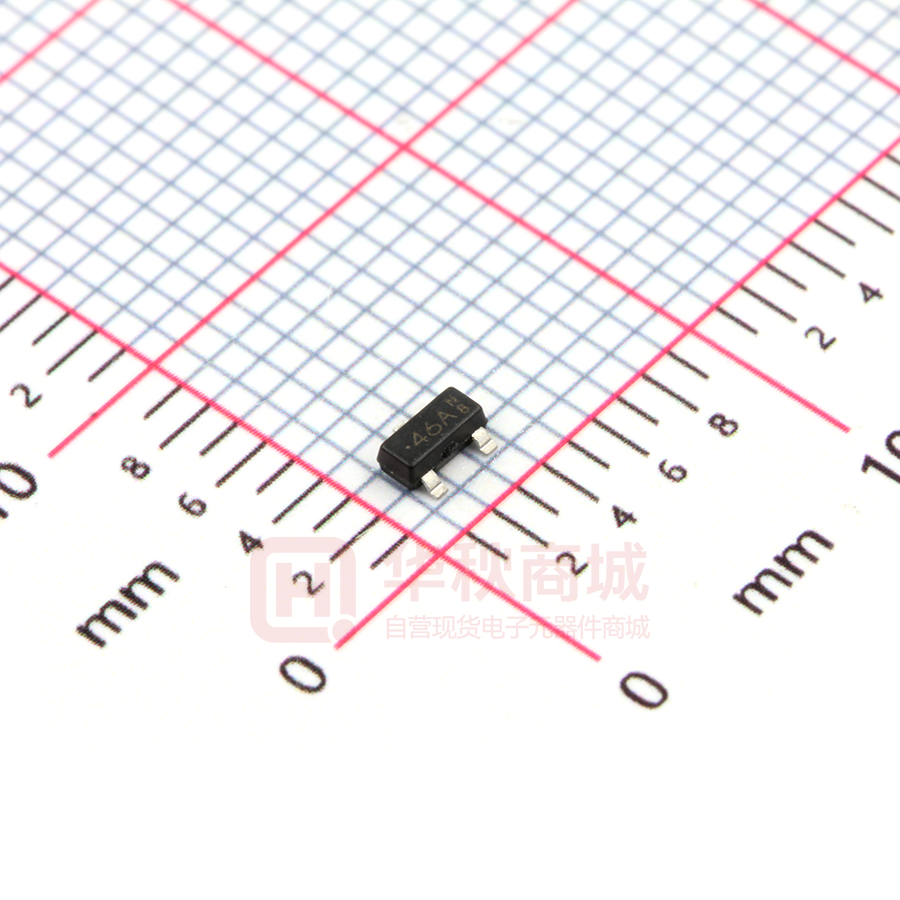

BC846,BC847,BC848,BC849,BC850 SERIES NPN GENERAL PURPOSE TRANSISTORS VOLTAGE 30/45/65 Volt 330 mWatt POWER • General purpose amplifier applications 0.006(0.15)MIN. FEATURES 0.120(3.04) 0.110(2.80) • NPN epitaxial silicon, planar design • Collector current IC = 100mA • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.056(1.40) 0.047(1.20) 0.008(0.20) 0.079(2.00) MECHANICAL DATA 0.003(0.08) 0.070(1.80) Case: SOT-23, Plastic Terminals: Solderable per MIL-STD-750, Method 2026 Approx. Weight: 0.0003 ounce, 0.0084 gram 0.004(0.10) 0.044(1.10) 0.000(0.00) 0.035(0.90) 0.020(0.50) 0.013(0.35) Device Marking: BC846A=46A BC847A=47A BC848A=48A BC846B=46B BC847B=47B BC848B=48B BC849B=49B BC850B=50B BC847C=47C BC848C=48C BC849C=49C BC850C=50C ABSOLUTE RATINGS Parameter Symbol Value Units Collector - Emitter Voltage BC846 BC847,BC850 BC848,BC849 VCEO 65 45 30 V Collector - Base Voltage BC846 BC847,BC850 BC848,BC849 VCBO 80 50 30 V Emitter - Base Voltage BC846 BC847,BC850 BC848,BC849 VEBO 6 6 5 V Collector Current - Continuous I C 100 mA Peak Collector Current ICM 200 mA Symbol Value Units Max Power Dissipation (Note 1) PTOT 330 mW Thermal Resistance , Junction to Ambient RθJA 375 TJ,TSTG -55 to 150 THERMAL CHARACTERISTICS Parameter Operating Junction Temperature and Storage Temperature Range C/W O C O 2 Note 1: Transistor mounted on FR-4 board 8 cm . January 30,2015-REV.07 PAGE . 1 BC846,BC847,BC848,BC849,BC850 SERIES ELECTRICAL CHARACTERISTICS P a ra me te r S ymb o l Te s t C o nd i ti o n MIN. TYP. MA X . Uni ts C o lle c to r - E m i tte r B re a k d o wn Vo lta g e B C 8 4 6 A /B B C 8 4 7 A /B /C ,B C 8 5 0 B /C B C 8 4 8 A /B /C ,B C 8 4 9 B /C V (B R) C E O IC =1 0 mA , IB =0 65 45 30 - - V C o lle c to r - B a s e B r e a k d o wn Vo lta g e B C 8 4 6 A /B B C 8 4 7 A /B /C ,B C 8 5 0 B /C B C 8 4 8 A /B /C ,B C 8 4 9 B /C V (B R) C B O IC =1 0 uA , IE =0 80 50 30 - - V E mi tte r - B a s e B r e a k d o wn Vo lta g e B C 8 4 6 A /B B C 8 4 7 A /B /C ,B C 8 5 0 B /C B C 8 4 8 A /B /C ,B C 8 4 9 B /C V (B R) E B O IE = 1 0 uA , IC = 0 6 6 5 - - V E mi tte r-B a s e C uto ff C urre nt IE B O V E B =5 - - 100 nA C o lle c to r-B a s e C uto ff C urre nt IC B O V C B = 3 0 V, IE =0 V C B = 3 0 V, IE =0 ,T J =1 5 0 O C - - 15 5 nA μA B C 8 4 6 ~B C 8 4 8 S uffi x " A " B C 8 4 6 ~B C 8 5 0 S uffi x " B " B C 8 4 7 ~B C 8 5 0 S uffi x " C " hF E IC = 1 0 uA , V C E = 5 V - 90 150 270 - - B C 8 4 6 ~B C 8 4 8 S uffi x " A " B C 8 4 6 ~B C 8 5 0 S uffi x " B " B C 8 4 7 ~B C 8 5 0 S uffi x " C " hF E IC = 2 mA , V C E = 5 V 11 0 200 420 180 290 520 220 450 800 - D C C urre nt Ga i n D C C urre nt Ga i n C o lle c to r - E mi tte r S a tura ti o n Vo lta g e V C E (S AT) IC = 1 0 mA , IB = 0 .5 mA IC = 1 0 0 mA , IB = 5 mA - - 0 .2 5 0 .6 V B a s e - E m i tte r S a tura ti o n Vo lta g e V B E (S AT) IC = 1 0 mA , IB = 0 .5 mA IC = 1 0 0 mA , IB = 5 mA - 0 .7 0 .9 - V B a s e - E m i tte r Vo lta g e V B E (ON) IC = 2 mA , V C E = 5 V IC = 1 0 mA , V C E = 5 V 0 .5 8 - 0 .6 6 - 0 .7 0 0 .7 7 V - - 4 .5 pF C o lle c to r - B a s e C a p a c i ta nc e C CBO V C B = 1 0 V, IE =0 , f= 1 MHz NPN January 30,2015-REV.07 PAGE . 2 BC846,BC847,BC848,BC849,BC850 SERIES ELECTRICAL CHARACTERISTICS CURVE (BC846A,BC847A,BC848A) 300 VCB=30V TJ =150° C 250 TJ=100° C 200 10 hFE ICB0, Collector Current (nA) 100 TJ=25 C 150 100 1 VCE=5V 50 0 0.01 0 25 50 75 100 125 150 0.1 1 10 100 1000 Collector Current, IC (mA) Junction Temperature, TJ (OC) Fig. 1. Typical ICB0 vs. Junction Temperature Fig. 2. Typical hFE vs. Collector Current 1200 1000 1000 TJ = 25 °C TJ = 100 °C TJ = 100 °C VCE(sat), (mV) VBE(ON), (mV) 800 600 400 0 0.01 0.1 TJ = 25 °C VCE=5V TJ = 150 °C 200 TJ = 150 °C 100 1 10 100 IC/IB=20 10 0.01 1000 0.1 1 100 1000 Collector Current, IC (mA) Fig. 3. Typical VBE(ON) vs. Collector Current Fig. 4. Typical VCE(SAT) vs. Collector Current 10 1200 TJ = 25 °C 1000 Cib (EB) 800 Capacitance, C (pF ) TJ = 25 °C VBE(sat), (mV) 10 Collector Current, IC (mA) TJ = 100 °C 600 400 200 IC/IB=20 TJ = 150 °C 0 0.01 0.1 Cob (CB) 1 10 100 1 0.1 1 10 100 Collector Current, IC (mA) Reverse Voltage (V) Fig. 5. Typical VBE(SAT) vs. Collector Current Fig. 6. Typical Capacitances vs. Reverse Voltage January 30,2015-REV.07 PAGE . 3 BC846,BC847,BC848,BC849,BC850 SERIES ELECTRICA5L CHARACTERISTICS CURVE (BC846B,BC847B,BC848B,BC849B,BC850B) 500 VCE=5V TJ =150° C 450 VCB=30V 400 350 10 TJ=100° C 300 hFE ICB0, Collector Current (nA) 100 TJ =25 °C 250 200 1 150 100 50 0 25 50 75 100 125 0 0.01 150 0.1 1 10 100 1000 Collector Current, IC (mA) Junction Temperature, TJ ( C) O Fig. 1. Typical ICB0 vs. Junction Temperature Fig. 2. Typical hFE vs. Collector Current 1000 1200 1000 TJ = 25 °C TJ = 100 °C VCE(sat), (mV) VBE(ON), (mV) 800 600 TJ = 100 °C TJ = 150 °C 100 400 TJ = 25 °C 200 0 0.01 0.1 IC/IB=20 VCE=5V TJ = 150 °C 1 10 100 10 0.01 1000 0.1 1 100 1000 Collector Current, IC (mA) Fig. 3. Typical VBE(ON) vs. Collector Current Fig. 4. Typical VCE(SAT) vs. Collector Current 1200 10 1000 Cib (EB) 800 TJ = 100 °C 600 400 200 Cob (CB) IC/IB=20 TJ = 150 °C 0 0.01 TJ = 25 °C Capacitance, C (pF ) TJ = 25 °C VBE(sat), (mV) 10 Collector Current, IC (mA) 1 0.1 1 10 100 0.1 1 10 100 Collector Current, IC (mA) Reverse Voltage (V) Fig. 5. Typical VBE(SAT) vs. Collector Current Fig. 6. Typical Capacitances vs. Reverse Voltage January 30,2015-REV.07 PAGE . 4 BC846,BC847,BC848,BC849,BC850 SERIES ELECTRICAL CHARACTERISTICS CURVE (BC847C,BC848C,BC849C,BC850C) 1200 VCB=30V 10 VCE=5V TJ =150° C 1000 hFE ICB0, Collector Current (nA) 100 800 TJ =100° C 600 TJ =25 C 400 1 200 0 0.01 0 25 50 75 100 125 150 0.1 1 10 100 1000 Collector Current, IC, (mA) Junction Temperature, TJ (OC) Fig. 1. Typical ICB0 vs. Junction Temperature Fig. 2. Typical hFE vs. Collector Current 1000 1200 1000 TJ = 25 °C TJ = 100 °C VCE(sat), (mV) VBE(ON), (mV) 800 600 TJ = 100 °C TJ = 150 °C 100 400 TJ = 25 °C 200 VCE=5V TJ = 150 °C 0 0.01 0.1 1 10 100 IC/IB=20 10 0.01 1000 0.1 1 100 1000 Collector Current, IC (mA) Fig. 3. Typical VBE(ON) vs. Collector Current Fig. 4. Typical VCE(SAT) vs. Collector Current 1200 10 1000 TJ = 100 °C TJ = 25 °C Cib (EB) TJ = 25 °C Capacitance, C (pF) 800 VBE(sat), (mV) 10 Collector Current, IC (mA) 600 400 Cob (CB) IC/IB=20 200 TJ = 150 °C 0 0.01 0.1 1 10 100 1 0.1 1 10 100 Collector Current, IC (mA) Reverse Voltage (V) Fig. 5. Typical VBE(SAT) vs. Collector Current Fig. 6. Typical Capacitances vs. Reverse Voltage January 30,2015-REV.07 PAGE . 5 BC846,BC847,BC848,BC849,BC850 SERIES 0.035 MIN. (0.90) MIN. MOUNTING PAD LAYOUT 0.078 (2.00) 0.037 (0.95) 0.043 (1.10) 0.031 MIN. (0.80) MIN. 0.043 (1.10) 0.106 (2.70) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7" plastic Reel January 30,2015-REV.07 PAGE . 6 BC846,BC847,BC848,BC849,BC850 SERIES Part No_packing code_Version BC846_R1_00001 BC846_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING January 30,2015-REV.07 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 7 BC846,BC847,BC848,BC849,BC850 SERIES Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. January 30,2015-REV.07 PAGE . 8
