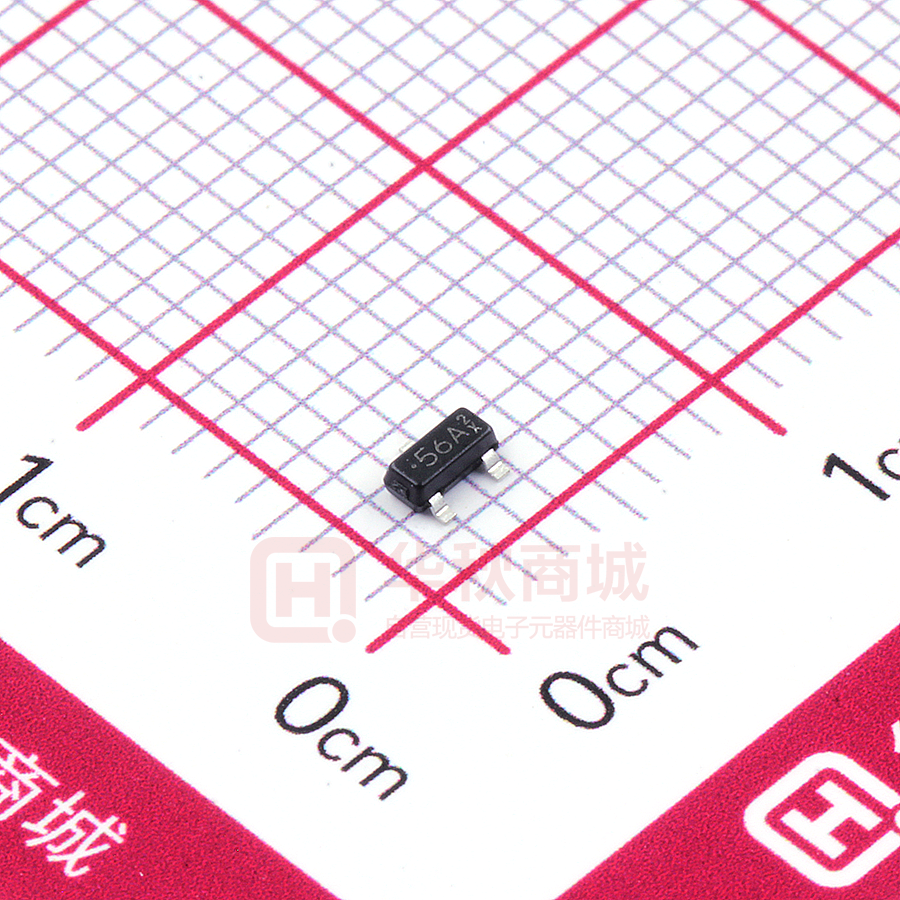

BC856 SERIES PNP GENERAL PURPOSE TRANSISTORS 30/45/65 Volt VOLTAGE POWER 330 mWatt 0.006(0.15)MIN. FEATURES 0.120(3.04) • General Purpose Amplifier Applications 0.110(2.80) • Collector Current IC = -100mA • Complimentary (PNP) Devices : BC846/BC847/BC848/BC849 Series • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.056(1.40) 0.047(1.20) 0.008(0.20) 0.079(2.00) 0.003(0.08) 0.070(1.80) MECHANICAL DATA 0.044(1.10) 0.004(0.10) 0.035(0.90) 0.000(0.00) Case: SOT-23 0.020(0.50) Terminals: Solderable per MIL-STD-750, Method 2026 0.013(0.35) Approx. Weight: 0.0003 ounces, 0.008 grams Marking: Device Marking: Top View BC856A=56A BC857A=57A BC858A=58A BC856B=56B BC857B=57B BC858B=58B BC859B=59B BC857C=57C BC858C=58C BC859C=59C 3 Collector 3 Collector 1 Base 1 Base 2 Emitter 2 Emitter ABSOLUTE RATINGS Parameter Symbol BC856 BC857 Collector - Emitter Voltage VCEO -65 -45 -30 V Collector - Base Voltage VCBO -80 -50 -30 V Emitter - Base Voltage VEBO Collector Current - Continuous I BC858 BC859 Units -5 V C -100 mA Peak Collector Current I CM -200 mA Max Power Dissipation (Note1) PTOT 330 mW Typical Thermal Resistance, Junction to Ambient RΘJA 375 TJ,TSTG -50 to 150 Operating Junction and Storage Temperature Range o C/W o C NOTES : 2 1. Transistor mounted on FR-4 board 8 cm . October 19,2016-REV.05 PAGE . 1 BC856 SERIES ELECTRICAL CHARACTERISTICS Parameter S ymb o l Te st C o nd i ti o n MIN. TYP. MA X . Uni ts C o lle c to r - E mi tte r B re a kd o wn Vo lta g e B C 8 5 6A ,B B C 8 5 7A ,B ,C B C 8 5 8A ,B ,C ,B C 8 59 B ,C V (B R) C E O IC =-1 0 mA , IB =0 -6 5 -4 5 -3 0 - - V C o lle c to r - B a se B re a kd o wn Vo lta g e B C 8 5 6A ,B B C 8 5 7A ,B ,C B C 8 5 8A ,B ,C ,B C 8 59 B ,C V (B R) C B O IC =-1 0 μA , IE =0 -8 0 -5 0 -3 0 - - V IE =-1 μA , IC =0 -5 - - V E mi tte r - B a se B re a kd o wn Vo lta g e V (B R) E B O E mi tte r-B a se C uto ff C urre nt IEB O V E B =-5 V - - -1 0 0 nA C o lle c to r-B a se C uto ff C urre nt IC B O V C B =-3 0 V, IE =0 V C B =-3 0 V, IE =0 ,T J =1 5 0 OC - - -1 5 -4 nA μA D C C urre nt Ga i n B C 8 5 6A ,B C 8 57 A ,B C 85 8A B C 8 5 6B ,B C 8 57 B ,B C 85 8B ,B C 8 5 9B B C 8 5 7C ,B C 8 58 C ,B C 8 59 C hF E IC =-1 0 μA , V C E =-5 V - 90 150 270 - - D C C urre nt Ga i n B C 8 5 6A ,B C 8 57 A ,B C 85 8A B C 8 5 6B ,B C 8 57 B ,B C 85 8B ,B C 8 5 9B B C 8 5 7C ,B C 8 58 C ,B C 8 59 C hF E IC =-2 mA , V C E =-5 V 11 0 220 420 180 290 520 220 475 800 - C o lle c to r - E mi tte r S a tura ti o n Vo lta g e V C E (SAT) IC =-1 0 mA , IB =-0 .5 mA IC =-1 0 0 mA , IB =-5 mA - - -0 .3 -0 .6 5 V B a se - E mi tte r S a tura ti o n Vo lta g e V BE (SAT) IC =-1 0 mA , IB =-0 .5 mA IC =-1 0 0 mA , IB =-5 mA - -0 .7 -0 .9 - V B a se - E mi tte r On Vo lta g e V BE (ON) IC =-2 mA , V C E =-5 V IC =-1 0 mA , V C E =-5 V -0 .6 - - -0 .7 5 -0 .8 2 V C o lle c to r - B a se C a p a ci ta nce CCB V C B =-1 0 V, IE =0 , f=1 MHz - - 4 .5 pF C urre nt-Ga i n-B a nd wi d th P ro d uc t FT IC =-1 0 mA , V C E =-5 V,f=1 0 0 MHz - 200 - MHz October 19,2016-REV.05 PAGE . 2 BC856 SERIES 500 TJ = 150°C VCE = 5V hFE , Current Gain 400 TJ = 75°C 300 TJ = 25°C 200 100 0 1 10 100 1000 IC, Collector Current (mA) October 19,2016-REV.05 PAGE . 3 BC856 SERIES PART NO PACKING CODE VERSION Part No Packing Code Package Type Packing Type Marking Version BC856A_R1_00001 SOT-23 3K pcs / 7" reel 56A Halogen free BC856A_R2_00001 SOT-23 12K pcs / 13" reel 56A Halogen free MOUNTING PAD LAYOUT October 19,2016-REV.05 PAGE . 4 BC856 SERIES Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. October 19,2016-REV.05 PAGE . 5
