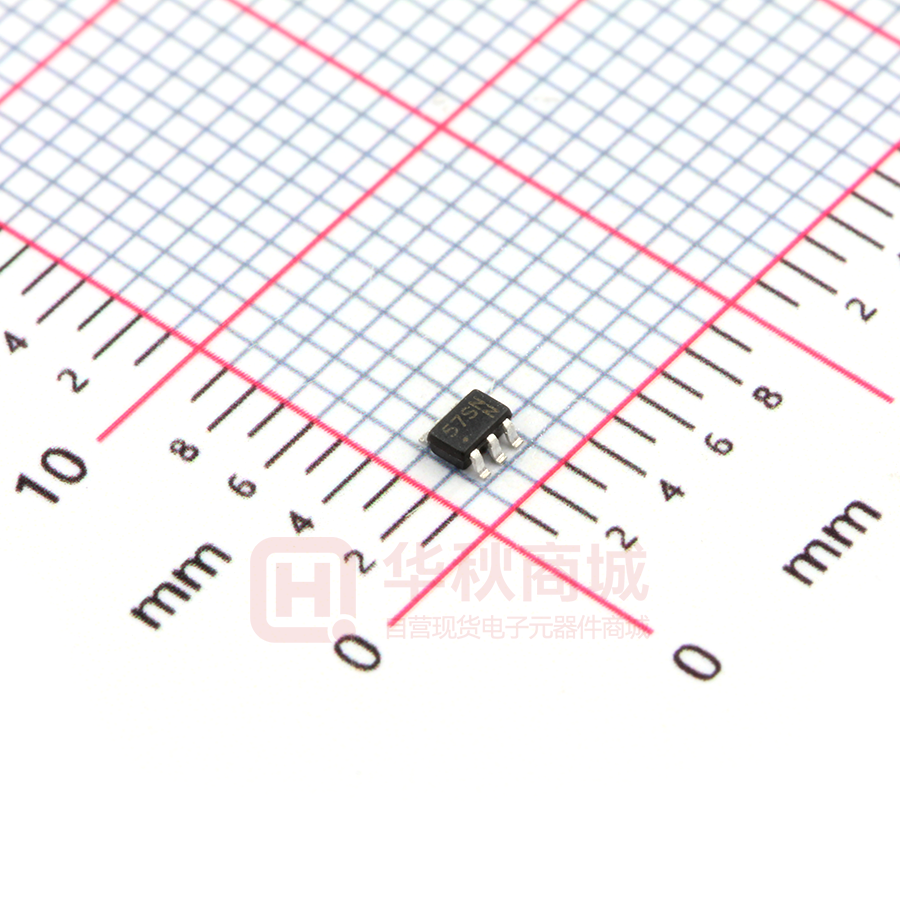

BC857BS PNP GENERAL PURPOSE DUALTRANSISTORS VOLTAGE 45 Volt POWER 150 mWatt FEATURES • General purpose amplifier applications • PNP epitaxial silicon, planar design • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard MECHANICAL DATA • Case: SOT-363, Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.00021 ounce, 0.006 gram • Marking: 57S ABSOLUTE MAXIMUM RATINGS PARAMETER Symbol Value Uni ts C ollector - Emi tter Voltage VCEO -45 V C ollector - Base Voltage VCBO -50 V Emi tter - Base Voltage VEBO -5.0 V IC 100 mA C ollector C urrent - C onti nuous THERMAL CHARACTERISTICS Symbol Value Uni ts Total D evi ce D i ssi pati on Per D evi ce FR-5 Board (Note 1)TA=25OC D erate above 25OC PARAMETER mW PD 300 150 3.0 Thermal Resi stance , Juncti on to Ambi ent RθJA 328 Juncti on Temperature TJ -55 to 150 O C Storage Temperature TSTG -55 to 150 O C mW/OC O C /W Note : 1.FR-4 board 70 x 60 x 1mm. September 13,2017-REV.04 PAGE . 1 BC857BS ELECTRICAL CHARACTERISTICS (TJ=25OC, unless otherwise noted) PA R A M E T E R Sy mbol Te s t C o nd i t i o n M I N. T Y P. MAX. Uni t V O F F C HA R A C T E R I S T I C S Colle ct or - Emit t er Br eakdow n Vo l t a g e V ( B R) C EO I C = - 1 0 mA -45 - - Colle ct or - Emit t er Br eakdow n Vo l t a g e V ( BR ) C ES I C = - 1 0 uA , V EB = 0 -50 - - C o l l e c t o r - B a s e B r e a k d o w n Vo l t a g e V ( B R) C BO I C = - 1 0 uA -50 - - V E mi t t e r - B a s e B r e a k d o w n Vo l t a g e V ( B R) E BO I E = - 1 uA -5.0 - - V I CB O V CB = - 3 0 V, V CB = - 3 0 V, T A = 1 5 0 O C - - -15 -5.0 nA uA D C C u r r e nt G a i n hFE I C = - 1 0 uA , V CE = - 5 V - 150 - - D C C u r r e nt G a i n hFE I C= - 2 . 0 m A , V CE= - 5 V 220 290 475 - C o l l e c t o r C ut o f f C ur r e nt O N CHARACTERI STI CS C o l l e c t o r - E mi t t e r S a t ur a t i o n Vo l t a g e V CE ( SAT ) I C = - 1 0 mA , I B = - 0 . 5 mA I C = - 1 0 0 m A , I B = - 5 . 0 mA - - -0. 3 -0. 65 V B a s e - E m i t t e r S a t ur a t i o n Vo l t a g e V BE ( S AT ) I C = - 1 0 mA , I B = - 0 . 5 mA I C = - 1 0 0 m A , I B = - 5 . 0 mA - -0. 7 -0. 9 - V B a s e - E m i t t e r Vo l t a g e V B E( O N) I C = - 2 mA , V CE = - 5 . 0 V I C = - 1 0 mA , V C E = - 5 . 0 V -0.6 - - -0. 75 -0. 82 V I C = - 1 0 mA , V C E = - 5 . 0 V d c f = 1 0 0 M HZ 100 - - M HZ V CB = - 1 0 V, f = 1 . 0 M H Z - - 4.5 pF I C = 0 . 2 m A , V CE = 5 . 0 V d c , R S = 2 . 0 k Ω , f = 1 . 0 k HZ , B W = 2 0 0 HZ - - 10 dB S M A L L - S I G NA L C HA R A C T E R I S T I C S C ur r e nt - G a i n- B a nd w i d t h P r o d uc t O ut p ut C a p a c i t a nc e No i s e F i g ur e fT C obo NF 6 5 4 1 2 3 Fig.53 September 13,2017-REV.04 PAGE . 2 BC857BS 2.0 1.0 V CE =10V O T A =25 C 1.5 T A =25 OC 0.8 V, VOLTAGE (VOLTS) hFE, NORMALIZED DC CURRENT GAIN ELECTRICAL CHARACTERISTICS CURVE 1.0 0.8 0.6 0.4 V BE (on) @ V CE =10V 0.6 0.4 0.2 0.3 V CE (sat) @ I C /I B =10 0.2 0 0.5 0.2 1.0 5.0 2.0 10 20 100 50 200 0.1 0.2 0.3 0.5 0.7 1.0 Figure 1. Normalized DC Current Gain 5.0 7.0 10 20 30 50 70 100 Figure 2. "Saturation" and " On " Voltages 2.0 O qVB, TEMPER ATURE COEFFI CIENT (mA/ C) 1.0 O T A =25 C 1.6 200mA 1.2 I C= I C= 10mA 2 0mA 100mA 50mA 0.8 0.4 -55 OC to 125 OC 1.2 1.6 2.0 2.4 2.8 0 0.1 0.02 1.0 10 20 0.2 1.0 I B , BASE CURRENT (mA) Cio 30 Cob 2.0 1.0 0.4 2.0 0.6 0.8 1.0 4.0 6.0 8.0 10 20 V R , REVERSE VOLTAGE (VOLTS) Figure 5. Capacitance September 13,2017-REV.04 40 fT, CURRENT-GAIN-BANDWIDTH PRODUCT (MHz) O T A =25 C 50 100 Figure 4. Base-Emitter Temperature Coefficient 10 7.0 10 I C , COLLECTOR CURRENT (mA) Figure 3. Collector Saturation Region C, CAPACITA NCE (pF) 2.0 3.0 I C , COLLECTOR CURRENT(mAdc) I C , COLLECTOR CURRENT(mAdc) V CE , COLLECTOR-EMITTER VOLTAGE (VOLTS) V BE (sat) @ I C /I B =10 400 300 200 V CE =10V O T A =25 C 100 80 60 40 30 20 0.5 0.7 1.0 2.0 3.0 5.0 7.0 10 20 30 50 I C , COLLECTOR CURRENT (mAdc) Figure 6. Current-Gain-Bandwidth Product PAGE . 3 BC857BS MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 10K per 13" plastic Reel T/R - 3K per 7" plastic Reel September 13,2017-REV.04 PAGE . 4 BC857BS Part No_packing code_Version BC857BS_R1_00001 BC857BS_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING September 13,2017-REV.04 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 BC857BS Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. September 13,2017-REV.04 PAGE . 6
