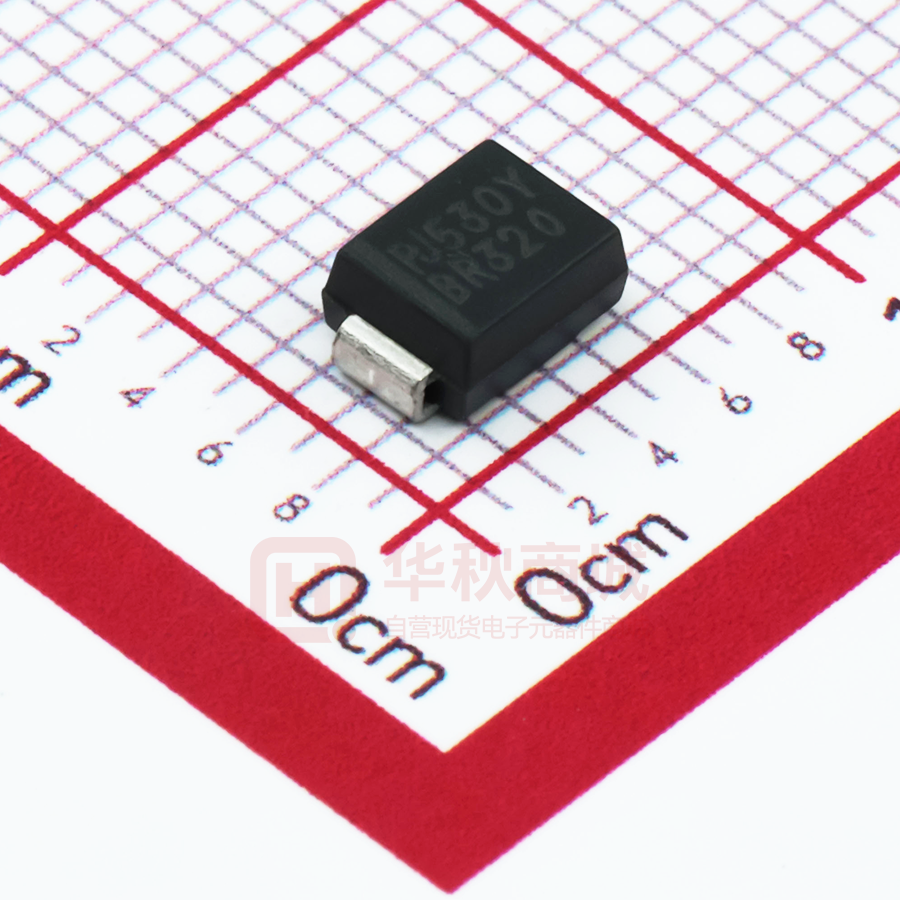

BR320_R1_00001

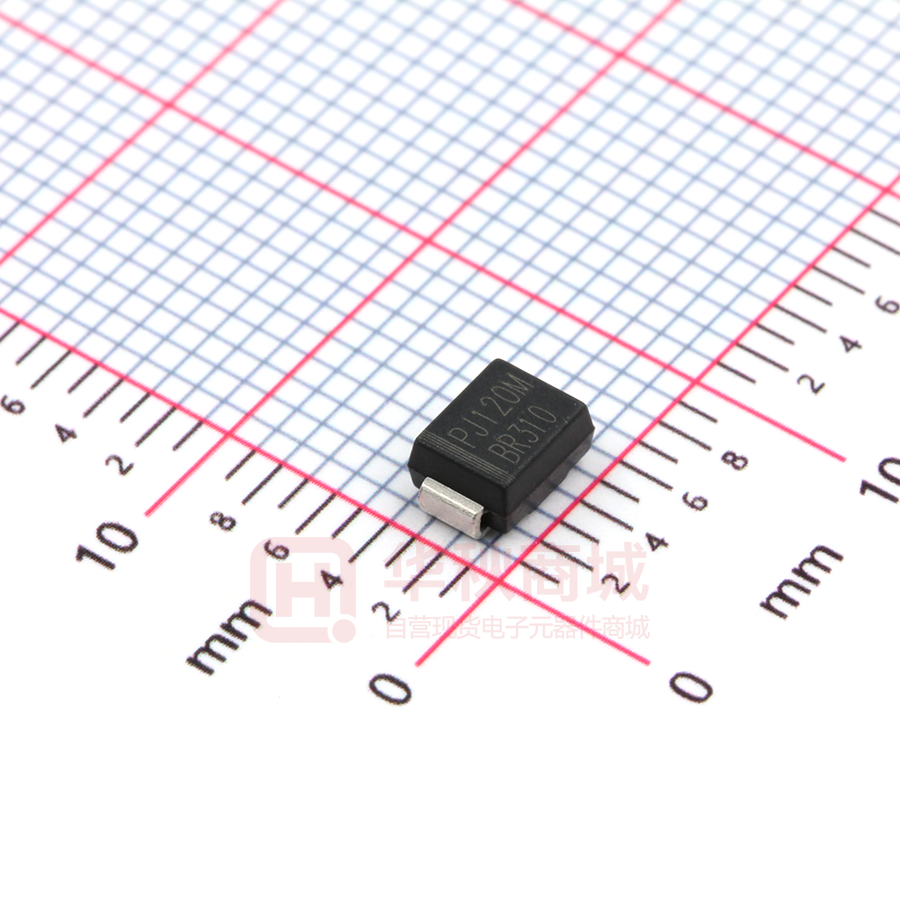

BR34 SERIES MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE 40 to 200 Volt 3 Ampere CURRENT FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • For surface mounted applications in order to optimize board space • Low power loss,high efficiency • High surge capacity • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard MECHANICAL DATA • • • • • Case: JEDEC DO-214AA molded plastic Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Standard packaging: 12mm tape (EIA-481) Weight: 0.0032 ounces, 0.092 grams 1 2 Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Resistive or inductive load. PARAMETER SYMBOL BR34 BR34A BR35 BR36 BR38 BR39 BR310 BR315 BR320 UNITS Maximum Recurrent Peak Reverse Voltage VRRM 40 45 50 60 80 90 100 150 200 V Maximum RMS Voltage VRMS 28 31.5 35 42 56 63 70 105 140 V Maximum DC Blocking Voltage VDC 40 45 50 60 80 90 100 150 200 V Maximum Average Forward Current I F(AV) 3 A Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load IFSM 80 A Maximum Forward Voltage at 3A (Notes 1) VF Maximum DC Reverse Current at Rated DC Blocking Voltage Typical Thermal Resistance Operating Junction and Storage Temperature Range TJ=25OC 0.7 0.74 0.8 0.9 V 0.05 IR TJ=125OC (Notes 2) (Notes 3) mA 20 RθJA RθJL 10 135 23 T J , T STG -55 to +150 -65 to +175 O C/W O C NOTES : 1. Pulse Test with PW= 300µsec, 2% Duty Cycle. 2. Mounted on a FR4 PCB, single-sided copper, mini pad. 3. Mounted on a FR4 PCB, single-sided copper, with 100cm April 26,2018-REV.06 2 copper pad area PAGE . 1 100000 3.0 40V 45-200V 2.5 2.0 1.5 1.0 0 0 20 40 60 80 100 120 140 160 IR, Leakage Current (μA) AVERAGE FORWARD RECTIFIED CURRENT AMPERES BR34 SERIES 10000 1000 100 TJ = 75°C 1 180 40~45V 8 16 50~60V 10000 TJ = 125°C TJ = 75°C 10 1 TJ = 25°C 12 24 36 48 80~100V 1000 100 TJ = 125°C 10 TJ = 150°C TJ = 75°C 1 0.1 0.01 TJ = 25°C 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Reverse Characteristics Fig.4 Typical Reverse Characteristics 1000 10 100 TJ = 125°C TJ = 150°C 10 TJ = 75°C 1 0.1 TJ = 25°C 20 40 150~200V 60 80 100 Percent of Rated Peak Reverse Voltage (%) Fig.5 Typical Reverse Characteristics April 26,2018-REV.06 IF, Forward Current (A) IR, Reverse Current (μA) 40 10000 60 VR, Peak Reverse Voltage (V) 0.01 32 Fig.2 Typical Reverse Characteristics IR, Reverse Current (μA) IR, Leakage Current (μA) 100000 100 24 VR, Peak Reverse Voltage (V) Fig.1 Forward Current Derating Curve TJ = 150°C TJ = 25°C 10 LEAD TEMPERATURE, OC 1000 TJ = 125°C TJ = 150°C TJ=150°C TJ=125°C 1 TJ=75°C 0.1 0.01 TJ=25°C 40~45V 0 0.2 0.4 0.6 0.8 VF, Forward Voltage (V) Fig.6 Typical Forward Characteristics PAGE . 2 BR34 SERIES TJ=150°C 1 TJ=125°C TJ=75°C 0.1 TJ=25°C 0.01 50~60V 0 0.2 0.4 0.6 0.8 10 IF, Forward Current (A) IF, Forward Current (A) 10 80~100V TJ = 150°C 1 TJ = 125°C TJ = 75°C 0.1 TJ = 25°C 0.01 1 0.1 0.3 10 150~200V TJ = 150°C TJ = 125°C 0.01 TJ = 75°C TJ = 25°C 0.1 0.3 0.5 0.7 0.9 VF, Forward Voltage (V) Fig.9 Fig 9 Typical Forward Characteristics April 26,2018-REV.06 0.9 Fig.8 Typical Forward Characteristics Percent of Reverse Voltage (%) IF, Forward Current (A) Fig.7 Typical Forward Characteristics 0.1 0.7 VF, Forward Voltage (V) VF, Forward Voltage (V) 1 0.5 120 100 80 60 40V 40 45~200V 20 0 0 25 50 75 100 125 150 175 TJ, Junction Temperature (°C) Fig. Operating Temperature Derating Curve PAGE . 3 BR34 SERIES MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 3K per 13" plastic Reel T/R - 0.8K per 7" plastic Reel April 26,2018-REV.06 PAGE . 4 BR34 SERIES Part No_packing code_Version BR34_R1_00001 BR34_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING April 26,2018-REV.06 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 BR34 SERIES Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. April 26,2018-REV.06 PAGE . 6
