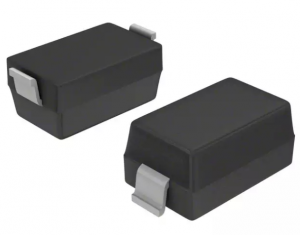

BZT52-C11S

BZT52-C2V4S thru BZT52-C39S SURFACE MOUNT SILICON ZENER DIODES VOLTAGE FEATURES • Planar Die construction • 200mW Power Dissipation • Zener Voltages from 2.4V - 39V • Ideally Suited for Automated Assembly Processes 2.4 - 39 Volts POWER 200 mWatts PACKAGE SOD-323 MECHANICAL DATA Case: SOD-323, Plastic Terminals: Solderable per MIL-STD-202, Method 208 Approx. Weight: 0.008 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Parameter Power Dissipation (Notes A) at 25OC Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method) (Notes B) Operating Junction and StorageTemperature Range Symbol Value 200 2.0 -55 to +150 Units mW Amps O PD IFSM TJ C NOTES: A. Mounted on 5.0mm2(.013mm thick) land areas. B. Measured on 8.3ms, single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum. Part Number: BZT52-C2V4S thru BZT52-C39S PAGE 1 BZT52-C2V4S thru BZT52-C39S ELECTRICAL CHARACTERISTICS (TA=25OC unless otherwise noted) VF=1.2V max, IF=100mA for all types. Nominal Zener Voltage Part Number No m. V Max. Zener Impedance Z ZT @ I ZT Z ZK @ I ZK Ω mA Max Reverse Leakage Current IR @ V R µA V Typical Temp. Coefficient TC V Z @ IZT M i n. V M a x. V P ackag e Ω mA 200 mWatts Zener Diodes BZT52-C2V4S BZT52-C2V7S BZT52-C3S BZT52-C3V3S BZT52-C3V6S BZT52-C3V9S BZT52-C4V3S BZT52-C4V7S BZT52-C5V1S BZT52-C5V6S BZT52-C6V2S BZT52-C6V8S BZT52-C7V5S BZT52-C8V2S BZT52-C9V1S BZT52-C10S BZT52-C11S BZT52-C12S BZT52-C13S BZT52-C15S BZT52-C16S BZT52-C18S BZT52-C20S BZT52-C22S BZT52-C24S BZT52-C27S BZT52-C30S BZT52-C33S BZT52-C36S BZT52-C39S 2.4 2.7 3 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 9.1 10 11 12 13 15 16 18 20 22 24 27 30 33 36 39 2.28 2.5 2.8 3.1 3.4 3.7 4 4.4 4.8 5.2 5.8 6.4 7 7.7 8.5 9.4 10.4 11.4 12.4 13.8 15.3 16.8 18.8 20.8 22.8 25.1 28 31 34 37 2.52 2.9 3.2 3.5 3.8 4.1 4.6 5 5.4 6 6.6 7.2 7.9 8.7 9.6 10.6 11.6 12.7 14.1 15.6 17.1 19.1 21.2 23.3 25.6 28.9 32 35 38 41 85 83 95 95 95 95 95 78 60 40 10 8 7 7 10 15 20 20 25 30 40 50 50 55 80 80 80 80 90 90 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 600 500 500 500 500 500 500 500 480 400 200 150 50 50 50 70 70 90 110 110 170 170 220 220 220 250 250 250 250 300 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 100 75 50 25 15 10 5.0 5.0 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 1 1 1 1 1 1 1 2 0.8 1 2 3 5 6 7 7.5 8.5 9 10 11 12 14 15 17 18 20 22.5 25 27 29 -0.075 -0.065 -0.060 -0.055 -0.055 -0.050 -0.035 -0.015 0.005 0.020 0.030 0.045 0.050 0.055 0.065 0.070 0.075 0.080 0.080 0.090 0.090 0.090 0.090 0.090 0.090 0.090 0.090 0.090 0.090 0.110 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 SOD-323 NOTE: 1.Tolerance and Type Number Designation. The type numbers listed have a standard tolerance on the nominal zener voltage of ±5%. 2.Specials Available Include: A. Nominal zener voltages between the voltages shown and tighter voltage tolerances. B. Matched sets. 3.Zener Voltage (VZ) Measurement. Guarantees the zener voltage when measured at 90 seconds while maintaining the lead temperature (TL) at 30OC, from the diode body. 4.Zener Impedance (ZZ) Derivation. The zener impedance is derived from the 60 cycle ac voltage, which results when an AC current having an rms value equal to 10% of the dc zener current (IZT or IZK) is superimposed on IZT or IZK. 5.Surge Current (IR) Non-Repetitive. The rating listed in the electrical characteristics table is maximum peak, non-repetitive, reverse surge current of 1/2 square wave or equivalent sine wave pulse of 1/120 second duration superimposed on the test current, IZT, per JEDEC registration; however, actual device capability is as described in Figure 5. Part Number: BZT52-C2V4S thru BZT52-C39S PAGE 2 RATING and CHARACTERISTIC CURVES 8 7 100 TEMPERATURE COEFFICIENT,mV / oC) 6 5 4 3 2 1 0 -1 -2 -3 2 3 4 5 6 7 8 9 10 11 12 TEMPERATURE COEFFICIENT,mV / oC) 10 1 10 100 NOMINAL ZENER VOLTAGE, Volts NOMINAL ZENER VOLTAGE, Volts TYPICAL REVERSE CURRENT STEADY STATE POWER DERATING 1000 DYNAMIC IMPEDANCE, W IZ = 1 mA FORWARD CURRENT, mA TJ=25 C IZ(AC)=0.1IZ(DC) F=1 kHZ O 1000 100 5 mA 20 mA 100 10 10 150OC 75 C O 25 C O 5C O 1 1 10 NORMAL ZENER VOLTAGE, Volts 100 1 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 FORWARD VOLTAGE, Volts EFFECT OF ZENER VOLTAGE ON ZENER IMPEDANCE TYPICAL FORWARD VOLTAGE 1000 1.2 1.0 0.8 0.6 0.4 0.2 0 CAPACITANCE, pF 0 V BIAS 1 V BIAS 100 BIAS AT 50% OF VZ NOM 10 TA=25 C o POWER DISSIPATION, Watts PD V.S. TA 1 25 50 75 100 125 150 155 1 10 100 TEMPERATURE (oC) NOMINAL ZENER VOLTAGE, Volts STEADY STATE POWER DERATING TYPICAL CAPACITANCE Part Number: BZT52-C2V4S thru BZT52-C39S PAGE 3 RATING and CHARACTERISTIC CURVES 100 TA=25 C ZENER CURRENT, mA ZENER CURRENT, mA o 100 TA=25 C o 10 10 1 1 0.1 0.1 0.01 0 2 4 6 8 10 12 0.01 10 30 50 70 90 ZENER VOLTAGE, Volts ZENER VOLTAGE, Volts ZENER VOLTAGE V.S. ZENER CURRENT ZENER VOLTAGE V.S. ZENER CURRENT 1000 LEAKAGE CURRENT (mA) 100 10 1 0.1 0.01 0.001 0.0001 0.00001 0 10 20 30 40 50 60 70 +150OC +25OC -55OC 80 90 NOMINAL ZENER VOLTAGE, Vlots TYPICAL LEAKGE CURRENT Part Number: BZT52-C2V4S thru BZT52-C39S PAGE 4 OUTLINE DRAWING SOD-323 .078(1.95) .068(1.75) .054(1.35) .045(1.15) .014(.35) .009(.25) .107(2.70) .090(2.30) .012(.30 MIN.) © Copyright PanjIt International Inc. 2001 All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights. PanJit Internatioal Inc. TEL:886-7-6213121 Fax:886-7-6213129 Internet: http://www.panjit.com.tw email: sales@panjit.com.tw Part Number: BZT52-C2V4S thru BZT52-C39S .006(.15) .002(.05) .038(.95) .027(.70) PAGE 5
