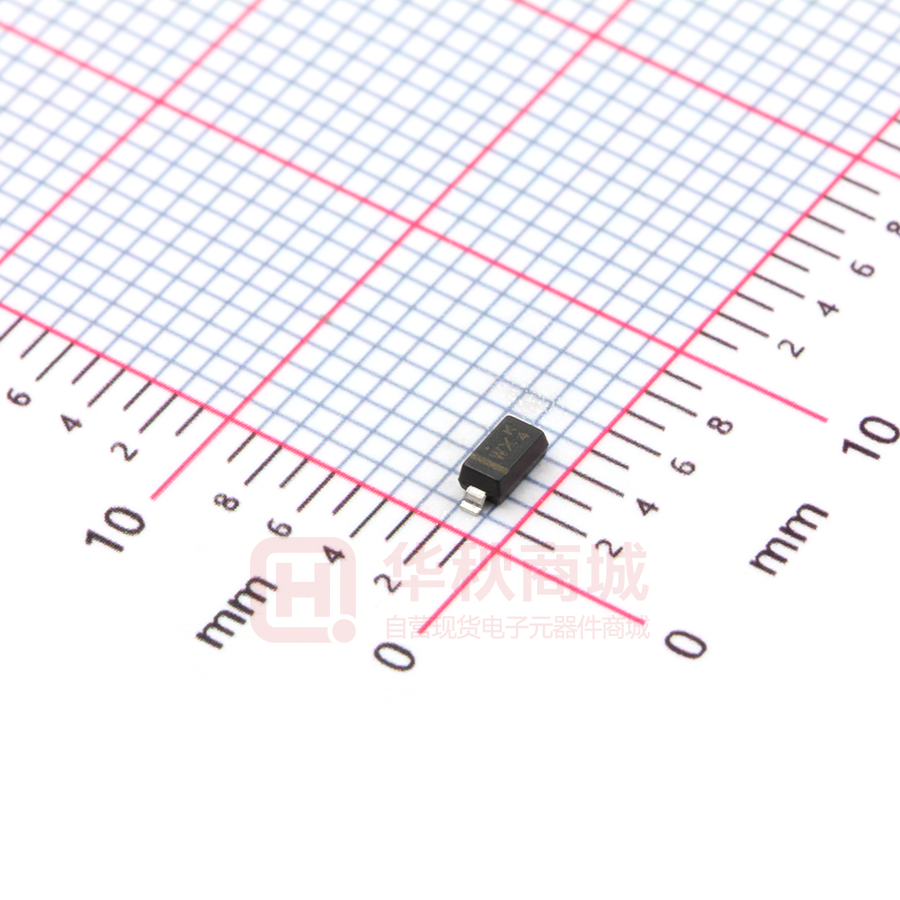

BZT52-C2V4~BZT52-C75 SURFACE MOUNT SILICON ZENER DIODES VOLTAGE 2.4 to 75 Volt POWER 410 mWatt FEATURES 0.154(3.90) 0.141(3.60) • Planar Die construction • 410mW Power Dissipation 0.110(2.80) 0.098(2.50) • Zener Voltages from 2.4~75V • Ideally Suited for Automated Assembly Processes • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard 0.028(0.70) 0.019(0.50) 0.071(1.80) 0.055(1.40) MECHANICAL DATA • Case: SOD-123, Molded Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Polarity: See Diagram Below 0.008(0.20)MAX. 0.053(1.35) 0.037(0.95) • Approx. Weight: 0.0004 ounces, 0.01 grams 0.016(0.40)MIN. 0.005(0.12)MAX. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS PARAMETER Maximum Power Dissipation (Note A) at 25oC Typical Thermal Resistance Operating Junction Temperature and StorageTemperature Range SYMBOL VALUE UNITS PD 410 mW RθJA 510 O C/W TJ -55 to +150 O C NOTES: A. B. Mounted on a FR-4 PCB, single-sided copper, with 100cm2 copper pad area. Mounted on a FR-4 PCB, single-sided copper, mini pad. 1 C a th o d e November 8,2017-REV.06 2 A node PAGE . 1 BZT52-C2V4~BZT52-C75 Nominal Zener Voltage Part Number V Z @ IZT No m. V Mi n. V Max Reverse Leakage Current Max. Zener Impedance Z ZT @ I ZT Z ZK @ I ZK IR @ V R Ma x. V Ω mA Ω mA μA V Marking Code 410 mWatts Zener Diodes BZT52-C2V4 2.4 2.28 2.52 85 5.0 600 1.00 100 1.0 W1 BZT52-C2V7 2.7 2.57 2.84 83 5.0 600 1.00 75 1.0 W2 BZT52-C3 3.0 2.85 3.15 95 5.0 600 1.00 50 1.0 W3 BZT52-C3V3 3.3 3.14 3.47 95 5.0 600 1.00 25 1.0 W4 BZT52-C3V6 3.6 3.42 3.78 95 5.0 600 1.00 15 1.0 W5 BZT52-C3V9 3.9 3.71 4.10 95 5.0 600 1.00 10 1.0 W6 BZT52-C4V3 4.3 4.09 4.52 95 5.0 600 1.00 5.0 1.0 W7 BZT52-C4V7 4.7 4.47 4.94 78 5.0 500 1.00 5.0 1.0 W8 BZT52-C5V1 5.1 4.85 5.36 60 5.0 480 1.00 0.1 0.8 W9 BZT52-C5V6 5.6 5.32 5.88 40 5.0 400 1.00 0.1 1.0 WA BZT52-C6V2 6.2 5.89 6.51 10 5.0 150 1.00 0.1 2.0 WB BZT52-C6V8 6.8 6.46 7.14 8 5.0 80 1.00 0.1 3.0 WC BZT52-C7V5 7.5 7.13 7.88 7 5.0 80 1.00 0.1 5.0 WD BZT52-C8V2 8.2 7.79 8.61 7 5.0 80 1.00 0.1 6.0 WE BZT52-C8V7 8.7 8.27 9.14 7 5.0 100 1.00 0.1 6.5 87C BZT52-C9V1 9.1 8.65 9.56 10 5.0 100 1.00 0.1 7.0 WF BZT52-C10 10 9.50 10.50 15 5.0 150 1.00 0.1 7.5 WG BZT52-C11 11 10.45 11.55 20 5.0 150 1.00 0.1 8.5 WH BZT52-C12 12 11.40 12.60 20 5.0 150 1.00 0.1 9.0 WI BZT52-C13 13 12.35 13.65 25 5.0 170 1.00 0.1 10.0 WK BZT52-C14 14 13.30 14.70 25 5.0 170 1.00 0.1 10.5 WJ BZT52-C15 15 14.25 15.75 30 5.0 200 1.00 0.1 11.0 WL BZT52-C16 16 15.20 16.80 40 5.0 200 1.00 0.1 12.0 WM BZT52-C17 17 16.15 17.85 40 5.0 200 1.00 0.1 13.0 17C BZT52-C18 18 17.10 18.90 50 5.0 225 1.00 0.1 14.0 WN BZT52-C20 20 19.00 21.00 50 5.0 225 1.00 0.1 15.0 WO BZT52-C22 22 20.90 23.10 55 5.0 250 1.00 0.1 17.0 WP BZT52-C24 24 22.80 25.20 80 5.0 250 1.00 0.1 18.0 WR BZT52-C27 27 25.65 28.35 80 5.0 300 1.00 0.1 20.0 WS BZT52-C28 28 26.60 29.40 80 5.0 300 1.00 0.1 22.0 28C BZT52-C30 30 28.50 31.50 80 5.0 300 1.00 0.1 22.5 WT BZT52-C33 33 31.35 34.65 80 5.0 325 1.00 0.1 25.0 WU BZT52-C36 36 34.20 37.80 90 5.0 350 1.00 0.1 27.0 WW BZT52-C39 39 37.05 40.95 90 5.0 350 1.00 0.1 29.0 WX BZT52-C43 43 40.85 45.15 100 5.0 375 1.00 0.1 32.0 WY BZT52-C47 47 44.65 49.35 100 5.0 375 1.00 0.1 35.0 WZ BZT52-C51 51 48.45 53.55 100 5.0 400 1.00 0.1 38.0 XA BZT52-C56 56 53.20 58.80 135 2.5 1000 1.00 0.1 42.0 X2 BZT52-C62 62 58.90 65.10 150 2.5 1000 1.00 0.1 46.0 X3 BZT52-C68 68 64.60 71.40 200 2.5 1000 1.00 0.1 51.0 X4 BZT52-C75 75 71.25 78.75 250 2.5 1000 1.00 0.1 56.0 X5 November 8,2017-REV.06 PAGE . 2 BZT52-C2V4~BZT52-C75 110 100 90 80 70 60 50 40 30 20 10 0 PD - Power Dissipcation(%) CJ - Junction Capacitance(pF) 1,000 0 50 100 150 TA - Ambient Temperature(°C) 10 1 10 100 VZ - Zener Breakdown(V) Fig.2 Typical Junction Capacitance 20 20 2.4V 2.7V 3.3V 3.6V 3.9V 4.3V 5.1V 5.6V 6.2V 6.8V 8.2V 15 10 5 1 2 IZ - Zener Current (mA) IZ - Zener Current (mA) 100 200 Fig.1 Power Derating Curve 0 VR = 0V 3 4 5 6 7 8 9 VZ - Zener Breakdown(V) 9.1V 12V 13V 15V 22V 24V 30V 15 10 5 0 0 5 10 15 20 25 30 35 VZ - Zener Breakdown(V) Fig.3 Typical Zener Breakdown Fig.4 Typical Zener Breakdown IZ - Zener Current (mA) 5.0 36V 39V 56V 75V 4.0 3.0 2.0 1.0 0.0 0 10 20 30 40 50 60 70 80 VZ - Zener Breakdown(V) Fig.5 Typical Zener Breakdown November 8,2017-REV.06 PAGE . 3 BZT52-C2V4~BZT52-C75 MOUNTING PAD LAYOUT SOD-123 Unit: inch(mm) ORDER INFORMATION • Packing information T/R - 10K per 13" plastic Reel T/R - 3K per 7" plastic Reel November 8,2017-REV.06 PAGE . 4 BZT52-C2V4~BZT52-C75 Part No_packing code_Version BZT52-C2V4_R1_00001 BZT52-C2V4_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING November 8,2017-REV.06 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 BZT52-C2V4~BZT52-C75 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. November 8,2017-REV.06 PAGE . 6
