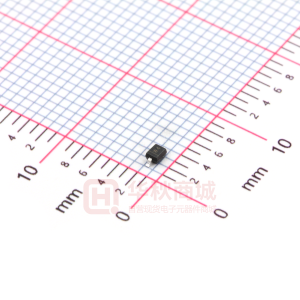

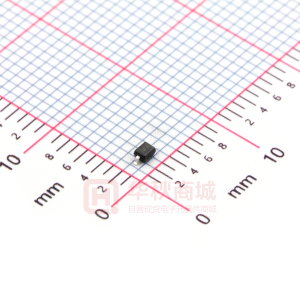

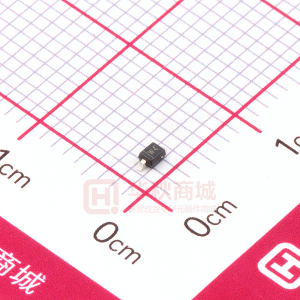

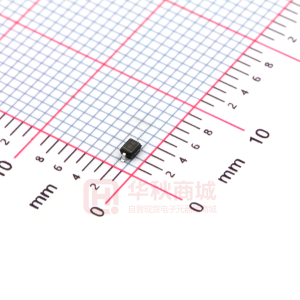

BZT52-C3V6S

BZT52-C2V4S SERIES SURFACE MOUNT SILICON ZENER DIODES VOLTAGE 2.4 to 75 Volts POWER 200 mWatts SOD-323 Unit: inch (mm) FEATURES • Planar Die construction .045(1.15) .054(1.35) .014(.35) • Zener Voltages from 2.4~75V • Ideally Suited for Automated Assembly Processes • In compliance with EU RoHS 2002/95/EC directives .009(.25) • 200mW Power Dissipation .078(1.95) .068(1.75) .038(.95) .027(.70) .006(.15) MECHANICAL DATA • Case: SOD-323, Molded Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Polarity: See Diagram Below • Approx. Weight: 0.0041 grams • Mounting Position: Any .107(2.7) .090(2.3) .012(.30)MIN. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Parameter Power Dissipation (Notes A) at TA = 25OC Operating Junction and StorageTemperature Range Symbol Value 200 -55 to +150 .002(.05) Units mW O PD TJ C NOTES: A. Mounted on 5.0mm2(.013mm thick) land areas. REV.0.3-OCT.2.2009 PAGE . 1 BZT52-C2V4S SERIES Nominal Zener Voltage Part Number No m. V Max. Zener Impedance Z ZT @ I ZT Z ZK @ I ZK Ω mA Max Reverse Leakage Current IR @ V R μA V V Z @ IZT M i n. V M a x. V Marking C ode Ω mA 200 mWatts Zener Diodes BZT52-C2V4S BZT52-C2V7S BZT52-C3S BZT52-C3V3S BZT52-C3V6S BZT52-C3V9S BZT52-C4V3S BZT52-C4V7S BZT52-C5V1S BZT52-C5V6S BZT52-C6V2S BZT52-C6V8S BZT52-C7V5S BZT52-C8V2S BZT52-C8V7S BZT52-C9V1S BZT52-C10S BZT52-C11S BZT52-C12S BZT52-C13S BZT52-C14S BZT52-C15S BZT52-C16S BZT52-C17S BZT52-C18S BZT52-C20S BZT52-C22S BZT52-C24S BZT52-C27S BZT52-C28S BZT52-C30S BZT52-C33S BZT52-C36S BZT52-C39S BZT52-C43S BZT52-C47S BZT52-C51S BZT52-C56S BZT52-C62S BZT52-C68S BZT52-C75S REV.0.3-OCT.2.2009 2.4 2.7 3.0 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 8.7 9.1 10 11 12 13 14 15 16 17 18 20 22 24 27 28 30 33 36 39 43 47 51 56 62 68 75 2.28 2.57 2.85 3.14 3.42 3.71 4.09 4.47 4.85 5.32 5.89 6.46 7.13 7.79 8.27 8.65 9.50 10.45 11.40 12.35 13.30 14.25 15.20 16.15 17.10 19.00 20.90 22.80 25.65 26.60 28.50 31.35 34.20 37.05 40.85 44.65 48.45 53.20 58.90 64.60 71.25 2.52 2.84 3.15 3.47 3.78 4.10 4.52 4.94 5.36 5.88 6.51 7.14 7.88 8.61 9.14 9.56 10.50 11.55 12.60 13.65 14.70 15.75 16.80 17.85 18.90 21.00 23.10 25.20 28.35 29.40 31.50 34.65 37.80 40.95 45.15 49.35 53.55 58.80 65.10 71.40 78.75 85 83 95 95 95 95 95 78 60 40 10 8 7 7 7 10 15 20 20 25 25 30 40 40 50 50 55 80 80 80 80 80 90 90 100 100 100 135 150 200 250 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 2.5 2.5 2.5 2.5 600 600 600 600 600 600 600 500 480 400 150 80 80 80 100 100 150 150 150 170 170 200 200 200 225 225 250 250 300 300 300 325 350 375 375 375 400 1000 1000 1000 1000 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 100 75 50 25 15 10 5.0 5.0 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.8 1.0 2.0 3.0 5.0 6.0 6.5 7.0 7.5 8.5 9.0 10.0 10.5 11.0 12.0 13.0 14.0 15.0 17.0 18.0 20.0 22.0 22.5 25.0 27.0 29.0 32.0 35.0 38.0 42.0 46.0 51.0 56.0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE 87C WF WG WH WI WK WJ WL WM 17C WN WO WP WR WS 28C WT WU WW WX WY WZ XA X2 X3 X4 X5 PAGE . 2 BZT52-C2V4S SERIES TEMPERATURE COEFFICIENT,(mV/ OC) 0.6 100 POWER DISSIPATION, Watts 0.5 0.4 0.3 0.2 0.1 0 10 0 25 50 75 100 125 150 1 10 100 TEMPERATURE ( OC) NOMINAL ZENER VOLTAGE,VOLTS Fig.1 STEADY STATE POWER DERATING Fig.2 TEMPERATURE COEFFICENTS 1000 1000 FORWARD CURRENT,mA LEAKAGE CURRENT,uA 100 10 1 0.1 0.01 0.001 0.0001 0.00001 0 10 20 30 40 50 60 70 100 +150 C O +25 C -55 C 80 90 O O 10 150OC 75 C O 25OC 5OC 1 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 NORMAL ZENER VOLTAGE, VOLTS FORWARD VOLTAGE, VOLTS Fig.3 TYPICAL LEAKAGE CURRENT Fig.4 TYPICAL FORWARD VOLTAGE REV.0.3-OCT.2.2009 PAGE . 3 BZT52-C2V4S SERIES MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 5K per 7" plastic Reel LEGAL STATEMENT Copyright PanJit International, Inc 2009 The information presented in this document is believed to be accurate and reliable. The specifications and information herein are subject to change without notice. Pan Jit makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose. Pan Jit products are not authorized for use in life support devices or systems. Pan Jit does not convey any license under its patent rights or rights of others. REV.0.3-OCT.2.2009 PAGE . 4
