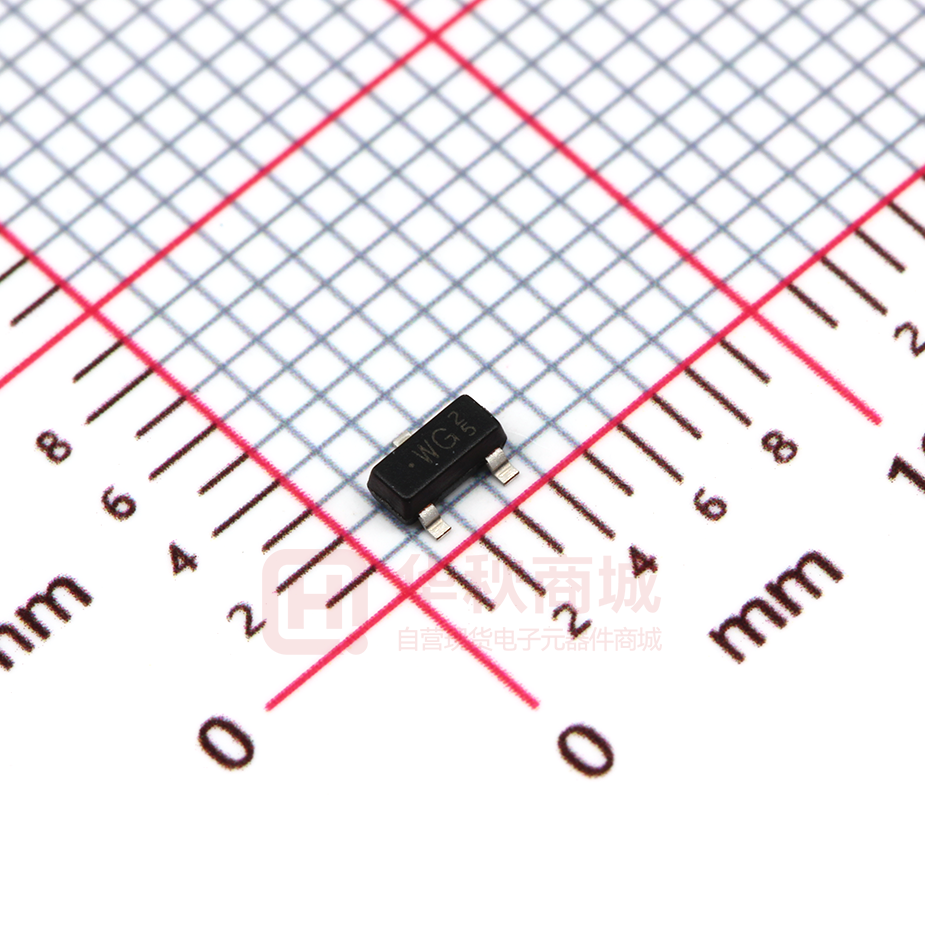

BZX84C2V4 SERIES SURFACE MOUNT SILICON ZENER DIODES VOLTAGE 2.4 to 75 Volt POWER 410 mWatt 0.006(0.15)MIN. FEATURES 0.120(3.04) • Planar Die construction 0.110(2.80) • 410mW Power Dissipation • Zener Voltages from 2.4~75V • Ideally Suited for Automated Assembly Processes 0.056(1.40) 0.047(1.20) • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.008(0.20) 0.079(2.00) 0.003(0.08) 0.070(1.80) MECHANICAL DATA 0.044(1.10) 0.004(0.10) • Case: SOT-23, Molded Plastic 0.035(0.90) 0.000(0.00) 0.020(0.50) • Terminals: Solderable per MIL-STD-750, Method 2026 0.013(0.35) • Approx. Weight: 0.0003 ounces, 0.0084 grams o MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS(TA=25 C unless otherwise noted) Parameter Maximum Power Dissipation (Notes 1) at 25OC Typical Thermal Resistance ,Junction to Ambient (Notes 2) Operating Junction and StorageTemperature Range Symbol Value Units PD 410 mW RΘJA 500 TJ -55 to +150 O C/W O C NOTES: 1. Mounted on 50mmX16mm FR-4 board. SINGLE 2. Mounted on minimum pad layout (1cmX1cm FR-4 board). 3 1 May 6,2015-REV.04 2 PAGE . 1 BZX84C2V4 SERIES Nominal Zener Voltage Part Number Max Reverse Leakage Current Max. Zener Impedance VZ @ I ZT Z ZT @ I ZT Z Z K @ I ZK I R @ VR Marking Code Nom. V M in. V M ax. V Ω mA Ω mA μA V BZX84C2V4 2.4 2.28 2.52 100 5.0 600 1.00 50 1.0 W1 BZX84C2V7 2.7 2.57 2.84 100 5.0 600 1.00 20 1.0 W2 3 2.85 3.15 95 5.0 600 1.00 10 1.0 W3 BZX84C3V3 3.3 3.14 3.47 95 5.0 600 1.00 5.0 1.0 W4 BZX84C3V6 3.6 3.42 3.78 90 5.0 600 1.00 5.0 1.0 W5 BZX84C3V9 3.9 3.71 4.10 90 5.0 600 1.00 3.0 1.0 W6 BZX84C4V3 4.3 4.09 4.52 90 5.0 600 1.00 3.0 1.0 W7 BZX84C4V7 4.7 4.47 4.94 80 5.0 500 1.00 3.0 2.0 W8 BZX84C5V1 5.1 4.85 5.36 60 5.0 480 1.00 2.0 2.0 W9 BZX84C5V6 5.6 5.32 5.88 40 5.0 400 1.00 1.0 2.0 WA BZX84C6V2 6.2 5.89 6.51 10 5.0 150 1.00 3.0 4.0 WB BZX84C6V8 6.8 6.46 7.14 15 5.0 80 1.00 2.0 4.0 WC BZX84C7V5 7.5 7.13 7.88 15 5.0 80 1.00 1.0 5.0 WD BZX84C8V2 8.2 7.79 8.61 15 5.0 80 1.00 0.7 5.0 WE BZX84C8V7 8.7 8.27 9.14 15 5.0 100 1.00 0.7 5.0 87C BZX84C9V1 9.1 8.65 9.56 15 5.0 100 1.00 0.5 6.0 WF BZX84C10 10 9.50 10.50 20 5.0 150 1.00 0.2 7.0 WG BZX84C11 11 10.45 11.55 20 5.0 150 1.00 0.1 8.0 WH BZX84C12 12 11.40 12.60 25 5.0 150 1.00 0.1 8.0 WI BZX84C13 13 12.35 13.65 30 5.0 170 1.00 0.1 8.0 WK BZX84C14 14 13.30 14.70 30 5.0 170 1.00 0.1 10.0 WJ BZX84C15 15 14.25 15.75 30 5.0 200 1.00 0.1 10.5 WL BZX84C16 16 15.20 16.80 40 5.0 200 1.00 0.1 11.2 WM BZX84C3 BZX84C17 17 16.15 17.85 40 5.0 200 1.00 0.1 12.2 17C BZX84C18 18 17.10 18.90 45 5.0 225 1.00 0.1 12.6 WN BZX84C20 20 19.00 21.00 55 5.0 225 1.00 0.1 14.0 WO BZX84C22 22 20.90 23.10 55 5.0 250 1.00 0.1 15.4 WP BZX84C24 24 22.80 25.20 70 5.0 250 1.00 0.1 16.8 WR BZX84C27 27 25.65 28.35 80 5.0 300 1.00 0.1 18.9 WS BZX84C28 28 26.60 29.40 80 5.0 300 1.00 0.1 20.5 28C BZX84C30 30 28.50 31.50 80 5.0 300 1.00 0.1 21.0 WT BZX84C33 33 31.35 34.65 80 5.0 325 1.00 0.1 23.1 WU BZX84C36 36 34.20 37.80 90 5.0 350 1.00 0.1 25.2 WW BZX84C39 39 37.05 40.95 130 5.0 350 1.00 0.1 27.3 WX BZX84C43 43 40.85 45.15 150 5.0 375 1.00 0.1 30.1 WY BZX84C47 47 44.65 49.35 170 5.0 375 1.00 0.1 32.9 WZ BZX84C51 51 48.45 53.55 100 5.0 400 1.00 0.1 38.0 XA BZX84C56 56 53.20 58.80 135 2.5 1000 1.00 0.1 42.0 X2 BZX84C62 62 58.90 65.10 150 2.5 1000 1.00 0.1 46.0 X3 BZX84C68 68 64.60 71.40 200 2.5 1000 1.00 0.1 51.0 X4 BZX84C75 75 71.25 78.75 250 2.5 1000 1.00 0.1 56.0 X5 May 6,2015-REV.04 PAGE . 2 POWER DISSIPATION, Watts 0.6 0.5 O T A =25 C 0.4 0.3 0.2 0.1 0 0 25 50 75 100 125 150 TEMPERATURE COEFFICIENT,(mV/ OC) BZX84C2V4 SERIES 100 10 1 10 100 NOMINAL ZENER VOLTAGE,VOLTS TEMPERATURE ( OC) Fig.2 TEMPERATURE COEFFICENTS Fig.1 STEADY STATE POWER DERATING 1000 100 FORWARD CURRENT,mA LEAKAGE CURRENT,uA 1000 10 1 O +150 C 0.1 0.01 O 0.001 +25 C 0.0001 -55 C O 0.00001 0 10 20 30 40 50 60 70 80 NORMAL ZENER VOLTAGE, VOLTS Fig.3 TYPICAL LEAKAGE CURRENT May 6,2015-REV.04 90 100 150OC 10 O 75 C 25OC 1 0.4 0.5 0.6 0.7 5OC 0.8 0.9 1.0 1.1 1.2 FORWARD VOLTAGE, VOLTS Fig.4 TYPICAL FORWARD VOLTAGE PAGE . 3 BZX84C2V4 SERIES 0.035 MIN. (0.90) MIN. MOUNTING PAD LAYOUT 0.078 (2.00) 0.037 (0.95) 0.043 (1.10) 0.031 MIN. (0.80) MIN. 0.043 (1.10) 0.106 (2.70) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7" plastic Reel May 6,2015-REV.04 PAGE . 4 BZX84C2V4 SERIES Part No_packing code_Version BZX84C2V4_R1_00001 BZX84C2V4_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING May 6,2015-REV.04 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 BZX84C2V4 SERIES Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. May 6,2015-REV.04 PAGE . 6
