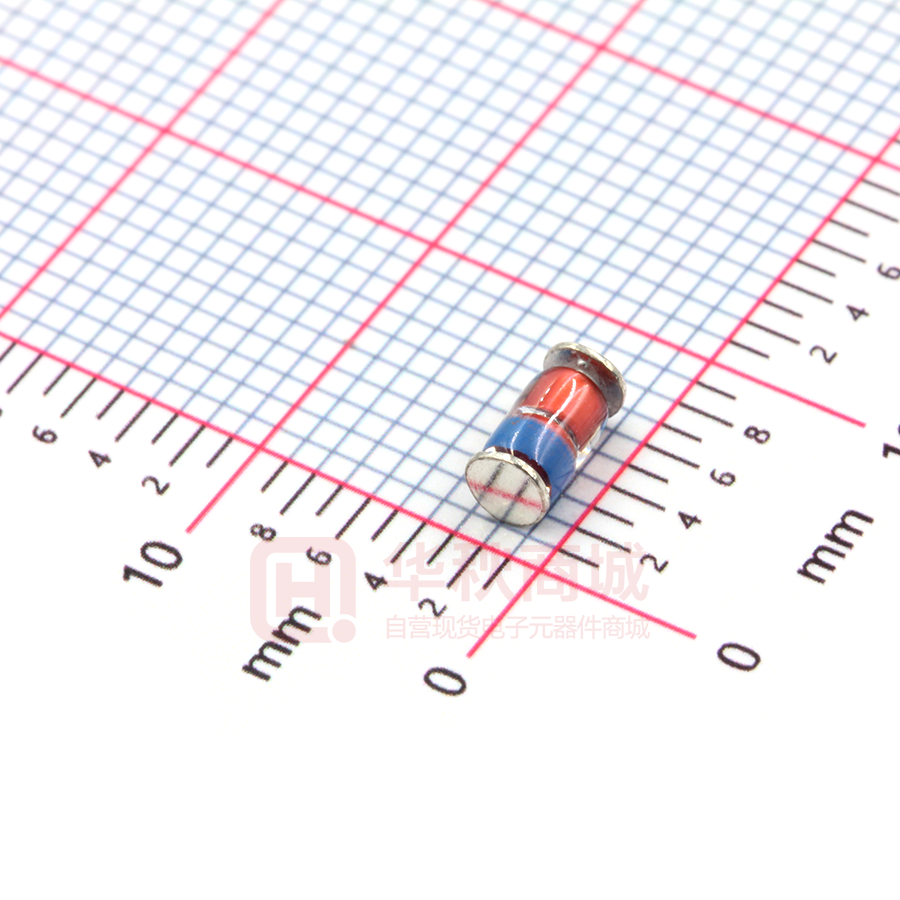

DL4728A SERIES SURFACE MOUNT ZENER DIODES VOLTAGE 3.3 to 75 Volt 1 Watt POWER FEATURES • Low inductance • Lead free in compliance with EU RoHS 2.0 MECHANICAL DATA • Case: Molded Glass MELF / DL-41 • Terminals: Solderable per MIL-STD-750, Method 2026 • Polarity: Color band denotes cathode end • Approx. Weight: 0.006 ounces, 0.16 grams • Packing information T/R - 5K per 13" paper Reel MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Parameter Power Dissipation at TA = 25OC Operating Junction Temperature Range Storage Temperature Range Symbol Value Units PTOT 1* W TJ -65 to +200 O TSTG -65 to +200 O C C *Valid provided that leads at a distance of 10mm from case are kept at ambient temperature. Parameter Thermal Resistance Junction to Ambient Air Forward Voltage at IF = 200mA Symbol Min. Typ. Max. Units RJA -- -- 170* o VF -- -- 1.2 C/W V *Valid provided that leads at a distance of 10mm from case are kept at ambient temperature. March 18,2020 DL4728A_SERIES-REV.06 PAGE . 1 DL4728A SERIES Ma xi mum Ze ne r V o lta g e Part Number V Z @ IZT No m. V M i n. V Z ZT @ IZT M a x. V Ma xi mum Le akage Current Ma xi mum Z e ne r Imp e d a nc e Z ZK @ IZK IR @ V R Ω mA Ω mA µA V 1 Watt Zener Diodes (Glass Sealed Envelope) DL4728A 3.3 3.14 3.47 10 76 400 1 100 1 DL4729A 3.6 3.42 3.78 10 69 400 1 100 1 DL4730A 3.9 3.71 4.1 9 64 400 1 50 1 DL4731A 4.3 4.09 4.52 9 58 400 1 10 1 DL4732A 4.7 4.47 4.94 8 53 500 1 10 1 DL4733A 5.1 4.85 5.36 7 49 550 1 10 1 DL4734A 5.6 5.32 5.88 5 45 600 1 10 2 DL4735A 6.2 5.89 6.51 2 41 700 1 10 3 DL4736A 6.8 6.46 7.14 3.5 37 700 1 10 4 DL4737A 7.5 7.13 7.88 4 34 700 0.5 10 5 DL4738A 8.2 7.79 8.61 4.5 31 700 0.5 10 6 DL4739A 9.1 8.65 9.56 5 28 700 0.5 10 7 DL4740A 10 9.5 10.5 7 25 700 0.25 10 7.6 DL4741A 11 10.45 11.55 8 23 700 0.25 5 8.4 DL4742A 12 11.4 12.6 9 21 700 0.25 5 9.1 DL4743A 13 12.35 13.65 10 19 700 0.25 5 9.9 DL4744A 15 14.25 15.75 14 17 700 0.25 5 11.4 DL4745A 16 15.2 16.8 16 15.5 700 0.25 5 12.2 DL4746A 18 17.1 18.9 20 14 750 0.25 5 13.7 DL4747A 20 19 21 22 12.5 750 0.25 5 15.2 DL4748A 22 20.9 23.1 23 11.5 750 0.25 5 16.7 DL4749A 24 22.8 25.2 25 10.5 750 0.25 5 18.2 DL4750A 27 25.65 28.35 35 9.5 750 0.25 5 20.6 DL4751A 30 28.5 31.5 40 8.5 1000 0.25 5 22.8 DL4752A 33 31.35 34.65 45 7.5 1000 0.25 5 25.1 DL4753A 36 34.2 37.8 50 7 1000 0.25 5 27.4 DL4754A 39 37.05 40.95 60 6.5 1000 0.25 5 29.7 DL4755A 43 40.85 45.15 70 6 1500 0.25 0.5 32.7 DL4756A 47 44.65 49.35 80 5.5 1500 0.25 0.5 35.8 DL4757A 51 48.45 53.55 95 5 1500 0.25 0.5 38.8 DL4758A 56 53.2 58.8 110 4.5 2000 0.25 0.5 42.6 DL4759A 62 58.9 65.1 125 4.0 2000 0.25 0.5 47.1 DL4760A 68 64.6 71.4 150 3.7 2000 0.25 0.5 51.7 DL4761A 75 71.25 78.75 175 3.3 2000 0.25 0.5 56 March 18,2020 DL4728A_SERIES-REV.06 PAGE . 2 DL4728A SERIES March 18,2020 DL4728A_SERIES-REV.06 PAGE . 3 DL4728A SERIES MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 5K per 13" plastic Reel T/R - 1.5K per 7" plastic Reel March 18,2020 DL4728A_SERIES-REV.06 PAGE . 4 DL4728A SERIES Part No_packing code_Version DL4728A_R1_10001 DL4728A_R2_10001 For example : RB500V-40_R2_00001 Serial number Version code means HF Packing size code means 13" Part No. Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING March 18,2020 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) DL4728A_SERIES-REV.06 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 DL4728A SERIES Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. March 18,2020 DL4728A_SERIES-REV.06 PAGE . 6
