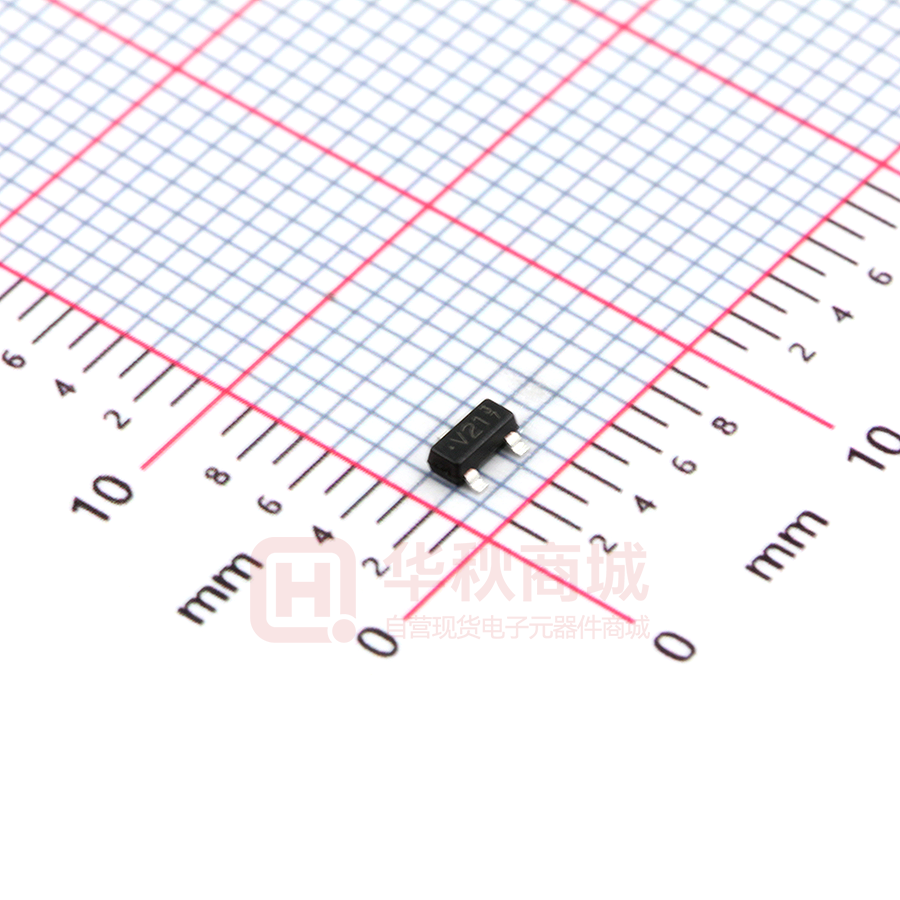

DZ23C18_R1_00001

DZ23C2V4 SERIES DUAL SURFACE MOUNT ZENER DIODES VOLTAGE 2.4 to 51 Volt POWER 300 mWatt 0.006(0.15)MIN. FEATURES 0.120(3.04) • Dual Zeners in Common Cathode Configuration 0.110(2.80) • 300mW Power Dissipation Rating • Zener Voltages from 2.4~51V • Ideally Suited for Automatic Insertion 0.056(1.40) • Common Anode Style Available See AZ Series 0.047(1.20) • Lead free in compliance with EU RoHS 2011/65/EU directive 0.008(0.20) 0.079(2.00) • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.003(0.08) 0.070(1.80) 0.004(0.10) 0.044(1.10) 0.000(0.00) 0.035(0.90) 0.020(0.50) MECHANICAL DATA 0.013(0.35) • Case: SOT-23, Molded Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.0003 ounces, 0.008 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS PARAMETER Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient Air (Note 1) Operating Junction Temperature and Storage Temperature Range SYMBOL VALUE UNITS PD 300 mW RΘJA 420 TJ ,TSTG -65 to +150 O C/W O C NOTES : 1. Mounted on 5mm 2(0.013mm thick) land areas. 2. Measured on 8.3ms, single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum. February 25,2015-REV.03 PAGE . 1 DZ23C2V4 SERIES Nominal Zener Voltage Part Number Z ZT @ I ZT V Z @ IZT Max Reverse Leakage Current Max. Zener Impedance Z ZK @ I ZK IR @ V R Marking Code No m. V Mi n. V Ma x. V Ω mA Ω mA μA V DZ23C2V4 2.4 2.28 2.52 85 5.0 600 1.00 100.0 1.0 V0 DZ23C2V7 2.7 2.57 2.84 83 5.0 600 1.00 75 1.0 V1 DZ23C3V0 3.0 2.85 3.15 95 5.0 600 1.00 50 1.0 V2 DZ23C3V3 3.3 3.14 3.47 95 5.0 600 1.00 25 1.0 V3 DZ23C3V6 3.6 3.42 3.78 90 5.0 600 1.00 5.0 1.0 V4 DZ23C3V9 3.9 3.71 4.10 90 5.0 600 1.00 3.0 1.0 V5 DZ23C4V3 4.3 4.09 4.52 95 5.0 600 1.00 5.0 1.0 V6 DZ23C4V7 4.7 4.47 4.94 78 5.0 500 1.00 5.0 2.0 V7 DZ23C5V1 5.1 4.85 5.36 60 5.0 480 1.00 0.1 0.8 V8 DZ23C5V6 5.6 5.32 5.88 40 5.0 400 1.00 0.1 1.0 V9 DZ23C6V2 6.2 5.89 6.51 10 5.0 150 1.00 0.1 2.0 V10 DZ23C6V8 6.8 6.46 7.14 8 5.0 80 1.00 0.1 3.0 V11 DZ23C7V5 7.5 7.13 7.88 7 5.0 80 1.00 0.1 5.0 V12 DZ23C8V2 8.2 7.79 8.61 7 5.0 80 1.00 0.1 6.0 V13 DZ23C8V7 8.7 8.27 9.14 7 5.0 80 1.00 0.1 6.5 V87 DZ23C9V1 9.1 8.65 9.56 10 5.0 100 1.00 0.1 7.0 V14 DZ23C10 10 9.50 10.50 15 5.0 150 1.00 0.1 7.5 V15 DZ23C11 11 10.45 11.55 20 5.0 150 1.00 0.1 8.5 V16 DZ23C12 12 11.40 12.60 20 5.0 150 1.00 0.1 9.0 V17 DZ23C13 13 12.35 13.65 25 5.0 170 1.00 0.1 10.0 V18 DZ23C14 14 13.30 14.70 25 5.0 170 1.00 0.1 10.5 VA DZ23C15 15 14.25 15.75 30 5.0 200 1.00 0.1 11.0 V19 DZ23C16 16 15.20 16.80 40 5.0 200 1.00 0.1 12.0 V20 DZ23C17 17 16.15 17.85 40 5.0 200 1.00 0.1 13.0 VB DZ23C18 18 17.10 18.90 50 5.0 225 1.00 0.1 14.0 V21 DZ23C20 20 19.00 21.00 50 5.0 225 1.00 0.1 15.0 V22 DZ23C22 22 20.90 23.10 55 5.0 250 1.00 0.1 17.0 V23 DZ23C24 24 22.80 25.20 80 5.0 250 1.00 0.1 18.0 V24 DZ23C27 27 25.65 28.35 80 5.0 300 1.00 0.1 20.0 V25 DZ23C28 28 26.60 29.40 80 5.0 300 1.00 0.1 22.0 VC DZ23C30 30 28.50 31.50 80 5.0 300 1.00 0.1 22.5 V26 DZ23C33 33 31.35 34.65 80 5.0 325 1.00 0.1 25.0 V27 DZ23C36 36 34.20 37.80 90 5.0 350 1.00 0.1 27.0 V28 DZ23C39 39 37.05 40.95 90 5.0 350 1.00 0.1 29.0 V29 DZ23C43 43 40.85 45.15 100 5.0 375 1.00 0.1 32.0 V30 DZ23C47 47 44.65 49.35 100 5.0 375 1.00 0.1 35.0 V31 DZ23C51 51 48.45 53.55 100 5.0 400 1.00 0.1 38.0 V32 February 25,2015-REV.03 PAGE . 2 DZ23C2V4 SERIES February 25,2015-REV.03 PAGE . 3 DZ23C2V4 SERIES 0.035 MIN. (0.90) MIN. MOUNTING PAD LAYOUT 0.078 (2.00) 0.037 (0.95) 0.043 (1.10) 0.031 MIN. (0.80) MIN. 0.043 (1.10) 0.106 (2.70) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7" plastic Reel February 25,2015-REV.03 PAGE . 4 DZ23C2V4 SERIES Part No_packing code_Version DZ23C2V4_R1_00001 DZ23C2V4_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING February 25,2015-REV.03 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 DZ23C2V4 SERIES Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. February 25,2015-REV.03 PAGE . 6
