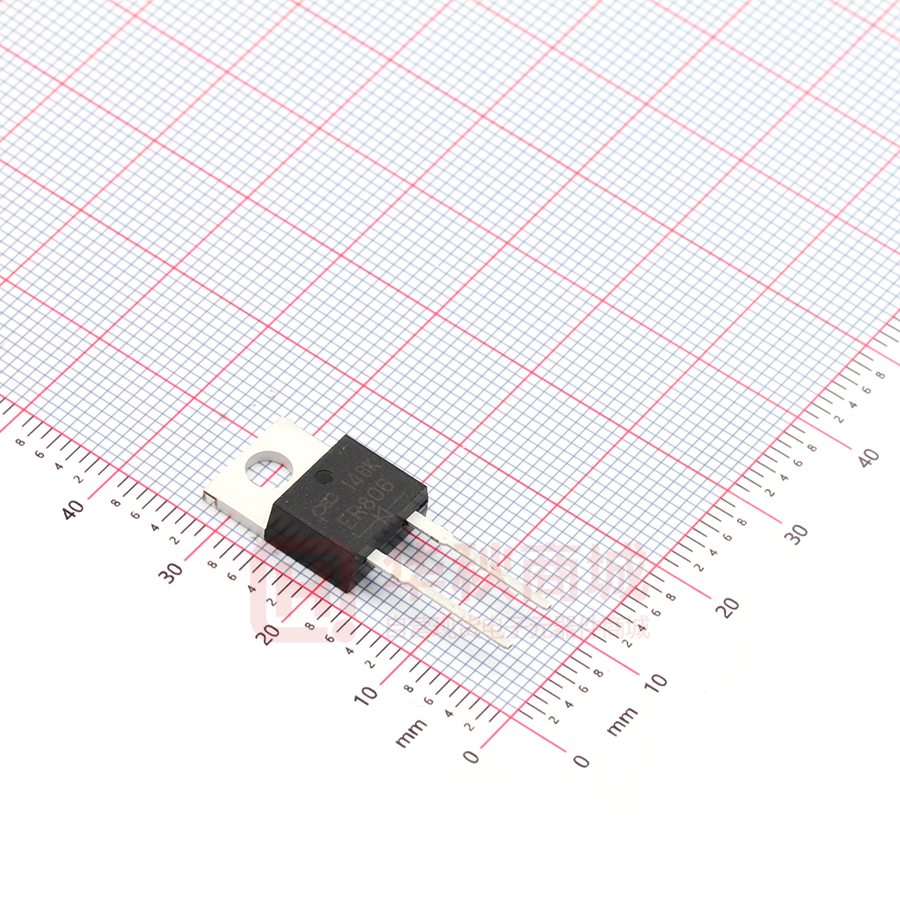

ER800~ER806 SUPERFAST RECOVERY RECTIFIERS CURRENT VOLTAGE 50 to 600 Volt 8 Ampere FEATURES • Superfast recovery times-epitaxial construction. • Low forward voltage, high current capability. • Hermetically sealed. • Low leakage. • High surge capability. • Plastic package has Underwriters Laboratories Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard MECHANICAL DATA • Case: Molded plastic, TO-220AC • Terminals: Axial leads, solderable to MIL-STD-750,Method 2026 • Polarity: As marking • Weight: 0.067 ounces, 1.89 grams. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Resistive or inductive load, 60Hz. PARAM ET E R SY M BO L ER8 0 0 E R8 0 1 E R80 1 A E R8 02 E R80 3 E R8 04 ER 80 6 UNI T S M a xi mum Re c ur r e nt Pe a k Re ve r s e Vo lt a g e V RR M 50 100 150 200 300 400 600 V M a xi mum RM S Vo lt a g e V RM S 35 70 105 140 210 280 420 V M a xi mum DC Bl o c k ing Vo lt a g e V DC 50 100 150 200 300 400 600 V M a xi mum Ave r a g e F o r w a r d Cur r e nt a t T C = 7 5 O C I F ( AV ) 8 A Pe a k F o r w a r d Sur g e Cur r e nt , 8 . 3 ms s ing le ha l f s i ne - w a ve s up e r i mp o s e d o n r a t e d l o a d I FSM 125 A M a xi mum F o r w a r d Vo lt a g e a t 8 A ( No t e 1 ) VF M a xi mum DC Re ve r s e Cur r e nt a t Ra t e d DC Bl o c k ing T J = 2 5 O C Vo lt a g e T J= 1 0 0 O C IR 1 300 μA M a xi mum Re ve r s e Re c o ve r y Time ( No t e 1 ) t rr 35 ns Ty p ic a l J unc t i o n Ca p a c i t a nc e ( No t e 2 ) CJ 65 pF R θJ C 3 T J, T STG -55 t o +150 Ty p ic a l t he r ma l Re s is t a nc e ( No t e 3 ) O p e r a t ing J unc t io n a nd St o r a g e Te mp e r a t ur e Ra ng e 0. 95 1. 3 1. 7 V O C / W O C NOTES : 1. Pulse Test with PW=300μsec, 2% Duty Cycle. 2. Reverse Recovery Tset Conditions : I F=0.5A,I R=1A,Irr=0.25A 3. Mounted on P.C. Board with 14mm 2 (0.013mm thick) copper pad areas. July 18,2017­REV.10 PAGE . 1 ER800~ER806 10.0 8.0 6.0 4.0 2.0 0 0 50 150 100 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD CURRENT, AMPERES RATING AND CHARACTERISTIC CURVES 125 100 75 50 25 1 2 CASE TEMPERATURE, OC Fig.1-FORWARD CURRENT DERATING CURVE 4 6 8 10 20 40 60 80 100 NO. OF CYCLE AT 60HZ Fig.2-MAXIMUM NON-REPETITIVE SURGE CURRENT INSTANTANEOUS FORWARD CURRENT AMPERES INVSTANTANEOUS REVERSE CURRENT, MICROAMPERES 1000 O TJ= 125 C 100 O TJ= 75 C 10 1.0 O TJ= 25 C 40 10 20 40 60 80 100 120 PERCENT OF RATED PEAK INVERSE VOLTGE, VOLTS Fig.3-TYPICAL REVERSE CHARACTERISTICS July 18,2017­REV.10 300-400V 600V 1 O T J =25 C Pulse Width=300us .1 0.1 200V .6 .8 1.0 1.2 1.4 1.6 1.8 2.0 INSTANTANEOUS FORWARD VOLTAGE, VOLTS Fig.4-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS PAGE . 2 ER800~ER806 Part No_packing code_Version ER800_T0_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Packing size code means 13" Part No. Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING July 18,2017­REV.10 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 3 ER800~ER806 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. July 18,2017­REV.10 PAGE . 4
