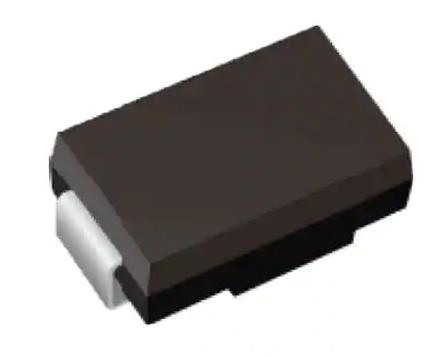

ES1A~ES1J SURFACE MOUNT SUPERFAST RECTIFIER 1 Ampere 50 to 600 Volt CURRENT VOLTAGE FEATURES • • • • • For surface mounted applications in order to optimize board space Built-in strain relief Easy pick and place Superfast recovery times for high efficiency. Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Glass passivated junction • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard MECHANICAL DATA • • • • • Case: JEDEC DO-214AC molded plastic Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 Polarity: Indicated by cathode band Standard packaging: 12mm tape (EIA-481) Weight: 0.0023 ounces, 0.0679 grams 1 2 Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. PA RA ME TE R S YMB OL E S 1 A E S 1 B E S 1 C E S 1 D E S 1 E E S 1 G E S 1 J UNITS Ma xi mum Re c urre nt P e a k Re ve rs e V o lta g e V RRM 50 100 150 200 300 400 600 V Ma xi mum RMS V o lta g e V RMS 35 70 105 140 210 280 420 V Ma xi mum D C B lo c k i ng Vo lta g e V DC 50 100 150 200 300 400 600 V Ma xi mum A ve ra g e F o r wa rd C urre nt a t T L = 1 2 0 O C I F (AV ) 1 A P e a k F o rwa rd S urg e C urre nt : 8 .3 ms s i ng le ha lf s i ne -wa ve s up e ri m p o s e d o n r a te d lo a d IF S M 30 A Ma xi mum F o r wa rd Vo lta g e a t 1 A VF 1 .2 5 1 .7 V IR 1 150 μA Ma xi mum Re ve rs e R e c o ve ry Ti me ( No te 1 ) t rr 35 ns Typ i c a l J unc ti o n C a p a c i ta nc e ( No te 2 ) CJ 7 pF R θJ L 35 T J ,T S TG -5 5 to + 1 5 0 Ma xi mum D C Re ve rs e C urre nt a t Ra te d D C B lo c k i ng Vo lta g e T J= 2 5 OC T J = 1 0 0 OC 0 .9 5 Typ i c a The rma l Re s i s ta nc e ( No te 3 ) Op e ra ti ng J unc ti o n a nd S to ra g e Te mp e ra ture Ra ng e O C / W O C NOTES: 1.Reverse Recovery Tset Conditions:I F=0.5A,I R =1.0A,Irr=0.25A 2.Measured at 1.0MHz and applied reverse voltage of 4.0 volt 3.8.0mm 2 ( 0.013mm thick ) land areas. July 19,2017­REV.05 PAGE . 1 ES1A~ES1J RATING AND CHARACTERISTIC CURVES AVERAGE FORWARD RECIFIED CURRENT AMPERES 18 16 O Tj= 25 C f= 1 .0MHz Vsig = 50mVp -p CAPACITANCE, pF 14 12 10 8.0 6.0 4.0 2.0 0 0.1 1.0 0.5 0 SINGLE PHASE, HALF-WAVE, 60Hz RESISTIVE OR INDUCTIVE LOAD P.C.B MOUNTED ON 0.3 x 0.3" (8.0 x 8.0 mm)COPPER PAD AREAS 0 20 40 60 80 100 120 140 160 180 100 10 1 1.5 O LEAD TEMPERATURE, C REVERSE VOLTAGE, VOLTS FIG.1 TYPICAL JUNCTION CAPACITANCE FIG.2 MAXIMUM AVERAGE FORWARD CURRENT DERATING 10 INSTANTANEOUS FORWARD CURRENT, AMPERES INVSTANTANEOUS REVERSE CURRENT, MICROAMPERES 1000 O TJ= 125 C 100 O TJ= 75 C 10 1.0 O TJ= 25 C 0.1 20 40 60 80 100 120 PERCENT OF RATED PEAK INVERSE VOLTGE, VOLTS FORWARD SURGE CURRENT, AMPERES pk (HALF-SING WAVE) FIG.3 TYPICAL REVERSE CHARACTERISTICS 300-400V 50-200V 1.0 .1 600V .01 O TJ= 25 C .001 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 INSTANTANEOUS FORWARD VOLTAGE VOLTS FIG.4 TYPICAL FORWARD CHARACTERISTICS 35 30 25 20 15 10 5 1 2 4 6 8 10 20 40 60 80 100 NUMBER OF CYCLES AT 60Hz FIG.5 MAXIMUM NON-REPEITIVE SURGE CURRENT July 19,2017­REV.05 PAGE . 2 ES1A~ES1J MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 7.5K per 13" plastic Reel T/R - 1.8K per 7" plastic Reel July 19,2017­REV.05 PAGE . 3 ES1A~ES1J Part No_packing code_Version ES1A_R1_00001 ES1A_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING July 19,2017­REV.05 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 ES1A~ES1J Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. July 19,2017­REV.05 PAGE . 5
