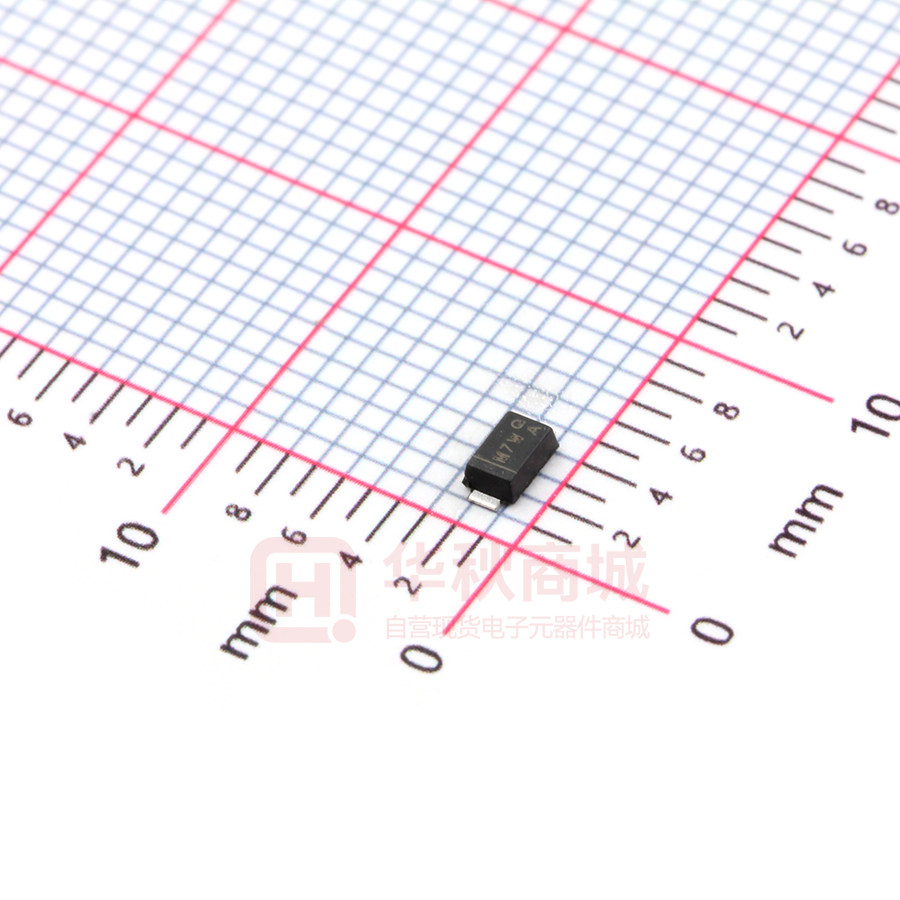

GS1010FL-LE_R1_00001

PGS1010FL-LE SURFACE GENERAL PURPOSE RECTIFIERS Voltage 1000 V 1A Current Features  For surface mounted applications in order to optimize board space SOD-123FL-1  Low profile package  Ideal for automated placement o  High temperature soldering : 260 C/10 seconds at terminals  Glass Passivated Chip Junction  Ultra Thin Profile Package for Space Constrained Utilization  Package suitable for automated handling  Lead free in compliance with EU RoHS 2011/65/EU directive.  Green molding compound as per IEC61249 Std..(Halogen Free) Mechanical Data  Case: Molded plastic, SOD-123FL-1  Terminals: Solder plated, solderable per MIL-STD-750, Method 2026  Polarity: Color Band denotes cathode end  Approx. Weight: 0.00054 ounces, 0.0155 grams  Marking: M7W o Maximum Ratings (TA=25 C unless otherwise noted) PARAMETER SYMBOL LIMIT UNIT Maximum repetitive peak reverse voltage VRRM 1000 V Maximum rms voltage VRMS 700 V VR 1000 V IF(AV) 1 A IFSM 25 A Typical forward voltage at 1A VF 1.1 V Maximum dc reverse current at rated dc blocking voltage IR 5 A CJ 9 pF (Note 1) RθJA 200 (Note 2) RθJC 20 TJ, TSTG -55 to +150 Maximum dc blocking voltage Maximum average forward current Peak forward surge current : 8.3ms single half sinewave superimposed on rated load Typical junction capacitance Measured at 1MHz and applied VR=4V Typical thermal resistance Operating and storage temperature range o C/W o C Note : 1. Mounted on a FR4 PCB, single-sided copper, mini pad. 2. Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area May 27,2015-REV.00 Page 1 1.2 1 0.8 0.6 0.4 0.2 0 0 25 50 75 100 125 150 TC, Case Temperature (°C) CJ, Junction Capacitance (pF) IF, Forward Current (A) PGS1010FL-LE 100 TJ = 150°C 1 0.1 TJ = 25°C 0.01 TJ = 75°C 0.001 10 20 30 40 50 60 70 80 90 100 Percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Reverse Characteristics May 27,2015-REV.00 1 1 10 100 VR, Reverse Bias Voltage (V) 10 TJ = 125°C 10 10 Fig.2 Typical Junction Capacitance IF, Forward Current (A) IR, Reverse Current (mA) Fig.1 Forward Current Derating Curve 100 TJ = 150°C 1 TJ = 125°C TJ = 75°C TJ = 25°C 0.1 0.4 0.6 0.8 1 1.2 VF, Forward Voltage (V) Fig.4 Typical Forward Characteristics Page 2 PGS1010FL-LE Package Outline ∠ALL ROUND C A ∠ALL ROUND VM D E A g Top View mil Bottom View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm g pad e E A pad HE ∠ 7° Pad Layout 2.0 (79) 1.2 (47) 1.2 (47) 1.2 (47) Unit： mm (mil) May 27,2015-REV.00 Page 3 PGS1010FL-LE Disclaimer ● Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. ● Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. ● Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. ● Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. ● Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. ● The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. ● Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. May 27,2015-REV.00 Page 4
