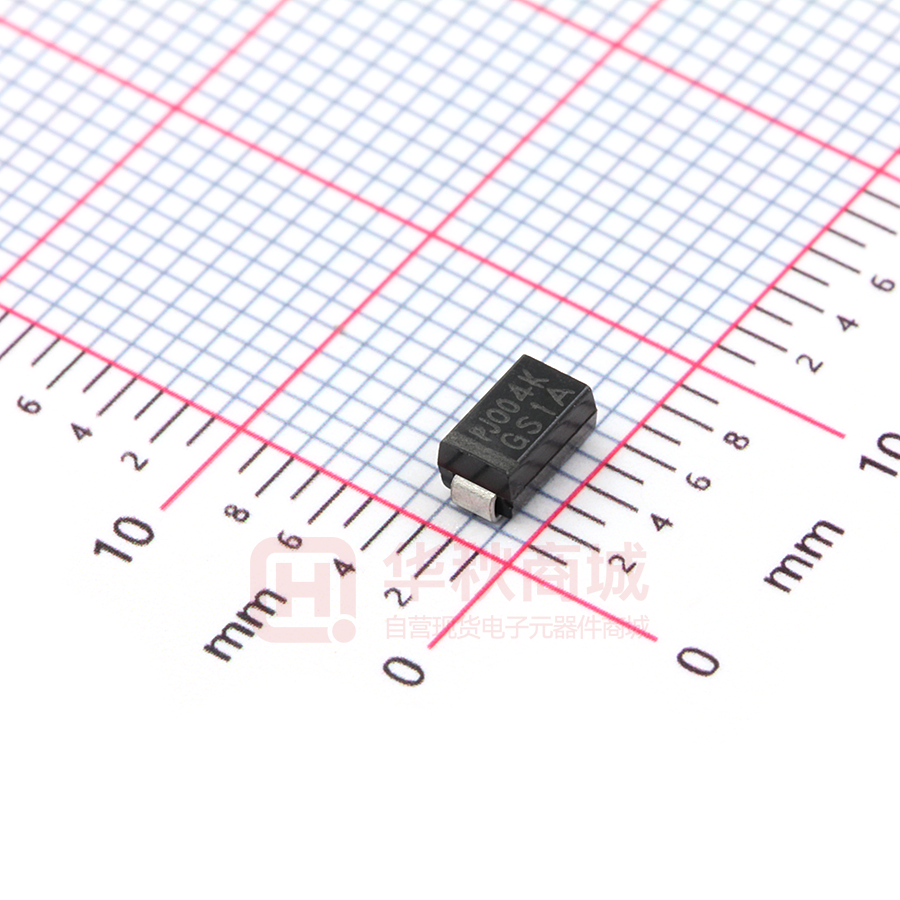

GS1A_R1_00001

GS1A~GS1N SURFACE MOUNT RECTIFIER VOLTAGE 50 to 1200 Volt CURRENT 1 Ampere 0.062(1.60) 0.047(1.20) • For surface mounted applications in order to optimize board space • Easy pick and place • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Low Forward Drop • High temperature soldering : 260°C /10 seconds at terminals • Glass Passivated Chip Junction • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.114(2.90) 0.098(2.50) FEATURES 0.181(4.60) 0.157(4.00) 0 . 012(0 . 305) 0 . 006(0.152) MECHANICAL DATA • • • • • 1 0.008(0.203) 0.002(0.051) 0.060(1.52) 0.030(0.76) Case: JEDEC DO-214AC molded plastic Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Standard packaging: 12mm tape (EIA-481) Weight: 0.002 ounce, 0.067 gram 0.208(5.28) 0.188(4.80) 2 Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. PARAM ETER SY M BO L G S1A G S1B G S1 D G S1 G G S1 J G S1 K G S1 M G S1 N UNI TS M a ximum Rec ur r e nt Pea k Rever s e Vo lt a ge V RR M 50 10 0 2 00 4 00 60 0 80 0 1 00 0 12 00 V M a ximum RM S Volt a ge V RM S 35 70 14 0 2 80 42 0 5 60 700 8 40 V M a ximum DC Blo c k ing Volt a ge V DC 50 10 0 2 00 4 00 60 0 80 0 1 00 0 12 00 V M a ximum Aver ag e Fo r w a r d Cur r ent h a t T L = 10 0 O C I F( AV) 1 A Pe a k For w a r d Sur ge Cur r e nt : 8. 3 ms s ing le ha lf s ine - w ave s upe r imp os e d o n r a t e d lo ad I FSM 35 A M a ximum For w a r d Volt ag e a t 1A VF 1.1 V IR 1 50 μA CJ 12 pF R θJ L R θJA 37 1 50 T J , T STG - 55 t o + 1 5 0 M a ximum DC Rever s e Cur r ent a t Rat e d DC Blo c k ing Vo lt a ge T J= 2 5 OC T J= 1 2 5 OC Ty p ic al J unc t io n Ca pa c it anc e ( Not e 1 ) Ty p ic al J unc t io n Re s is t anc e O p er at ing and St o r ag e Te mpe r a t ur e Ra nge ( Not e 2) ( Not e 3) O C / W O C NOTES:1. Measured at 1 MHz and applied V R = 4 volts. 2. Mounted on a FR4 PCB, single-sided copper, with 100cm 2 copper pad area 3. Mounted on a FR4 PCB, single-sided copper, mini pad. January 20,2015-REV.06 PAGE . 1 1 0.8 0.6 0.4 0.2 0 0 25 50 75 100 125 150 TC, Case Temperature (°C) IR, Reverse Current (mA) Fig.1 Forward Current Derating Curve 100 100 10 1 1 10 100 VR, Reverse Bias Voltage (V) Fig.2 Typical Junction Capacitance 10 TJ = 150°C 10 TJ = 125°C 1 TJ = 75°C 0.1 TJ = 25°C IF, Forward Current (A) IF, Forward Current (A) 1.2 CJ, Junction Capacitance (pF) GS1A~GS1N TJ = 150°C 1 TJ = 125°C TJ = 75°C 0.1 TJ = 25°C 0.01 10 20 30 40 50 60 70 80 90 100 0.01 0.4 Percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Reverse Characteristics January 20,2015-REV.06 0.6 0.8 1 1.2 VF, Forward Voltage (V) Fig.4 Typical Forward Characteristics PAGE . 2 GS1A~GS1N MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 7.5K per 13" plastic Reel T/R - 1.8K per 7" plastic Reel January 20,2015-REV.06 PAGE . 3 GS1A~GS1N Part No_packing code_Version GS1A_R1_00001 GS1A_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING January 20,2015-REV.06 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 GS1A~GS1N Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. January 20,2015-REV.06 PAGE . 5
