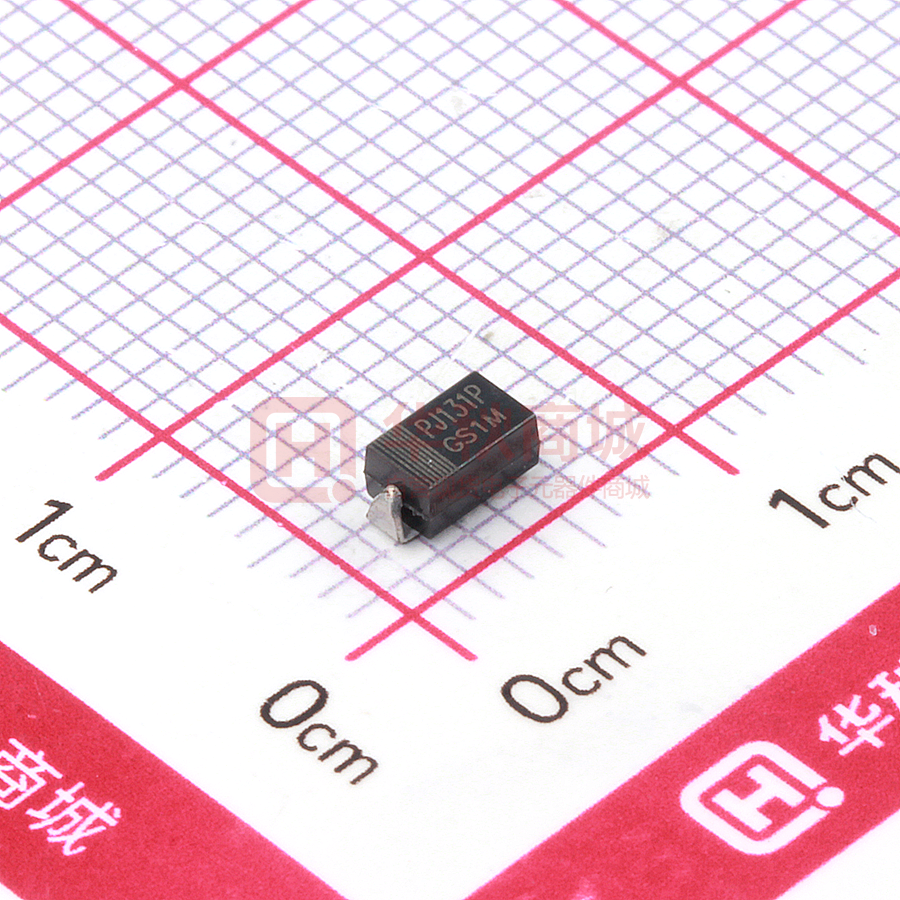

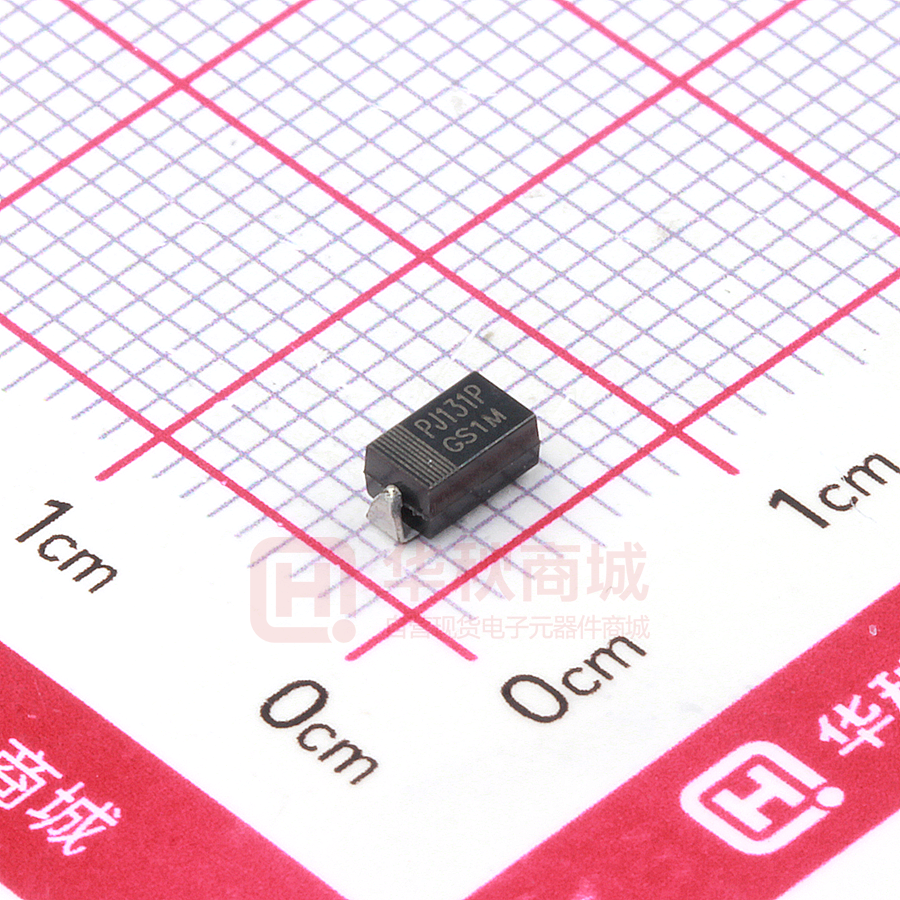

GS1MW_R2_10001

GS1AW~GS1MW SURFACE MOUNT GENERAL PURPOSE RECTIFIER VOLTAGE 50 to 1000 Volts CURRENT 1.0 Amperes FEATURES • • • • • For surface mounted applications Low profile package Built-in strain relief Easy pick and place Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Low Forward Drop • High temperature soldering : 260°C /10 seconds at terminals • Plastic Silicon Passivated • In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA • • • • • Case: SMA(W) molded plastic Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 Polarity: Indicated by cathode band Standard packaging: 12 mm tape (EIA-481) Weight: 0.002 ounce, 0.064 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. PA RA ME TE R S YM B OL G S 1 AW G S 1 B W G S 1 D W GS 1 G W GS 1 J W G S 1 K W GS 1 MW U NITS Ma xi m um Re c urre nt P e a k Re ve rs e Vo lta g e V RRM 50 100 200 400 600 800 1000 V Ma xi m um RM S Vo lta g e V RM S 35 70 140 280 420 560 700 V Ma xi m um D C B lo c k i ng Vo lta g e V DC 50 100 200 400 600 800 1000 V Ma xi m um A ve ra g e F o r wa rd C urre nt a t T L = 5 0 O I F ( AV ) 1 .0 A P e a k F o rw a r d S urg e C urre nt : 8 .3 ms s i ng le ha lf s i ne wa ve s up e ri mp o s e d o n ra te d lo a d (J E D E C me tho d ) IF S M 30 A Ma xi m um F o rwa r d Vo lta g e a t 1 .0 A D C VF 1 .1 V IR 5 .0 50 μA CJ 12 pF R θJ A R θJ C R θJ L 50 20 14 T J ,T S TG -5 5 to + 1 5 0 Ma xi m um D C Re ve rs e C urr e nt a t Ra te d D C B lo c k i ng Vo lta g e C TJ= 2 5 OC TJ= 1 0 0 OC Typ i c a l J unc ti o n C a p a c i ta nc e ( No te 1 ) Typ i c a l J unc ti o n Re s i s ta nc e (No te 2 ) Op e r a ti ng a nd S to r a g e Te mp e ra tur e Ra ng e O C / W O C NOTES:1. Measured at 1 MHz and applied V r = 4.0 volts. 2. 8.0 mm 2 ( .013mm thick ) land areas. May 4,2011-REV.04 PAGE . 1 GS1AW~GS1MW AVERAGE FORWARD RECTIFIED CURRENT, A MPERES 3.0 SINGLE PHASE HALF WAVE 60Hz RESISTIVE OR INDUCTIVE LOAD P.C.B MOUNTED ON 0.3 x 0.3" (8.0 x 8.0mm) COPPER PAD A REAS 2.5 2.0 1.5 1.0 0.5 0 0 50 100 150 O LEAD TEMPERATURE, C Fig.1 FORWARD CURRENT DERATING CURVE INSTANTANEOUS FORWARD CURRENT, AMPERES RATING AND CHARACTERISTIC CURVES 100 40 20 10 4.0 2.0 1.0 0.4 0.2 0.1 0.4 0.6 0.8 1.0 1.2 1.4 1.8 1.6 INSTANTANEOUS REVERSE CURRENT , m A INSTANTANEOUS FORWARD VOLTAGE, VOLTS 1000 Fig.2-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS o TJ = 125 C 10 PEAK FORWARD SURGE CURRENT , AMPERES 100 TJ = 100 OC 1.0 O TJ = 25 C 0.1 20 40 60 80 100 120 140 30 8.3ms Single Half Sine-Wave JEDEC Method 25 20 15 10 5 0 PERCENTAGE OF PEAK REVERSE VOLTAGE,% 1 2 6 10 20 40 60 100 NUMBER OF CYCLES AT 60Hz Fig.3-TYPICAL REVERSE CHARACTERISTIC Fig.4-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 100 CAPACITANCE, pF 50 O T J = 25 C f = 1.0mHz Vsig = 50mVp-p 20 10 5 2 1 0.1 1.0 10 100 1000 REVERSE VOLTAGE, VOLTS Fig.5 TYPICAL JUNCTION CAPACITANCE May 4,2011-REV.04 PAGE . 2 GS1AW~GS1MW MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 7.5K per 13" plastic Reel T/R - 1.8Kper 7” plastic Reel LEGAL STATEMENT Copyright PanJit International, Inc 2011 The information presented in this document is believed to be accurate and reliable. The specifications and information herein are subject to change without notice. Pan Jit makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose. Pan Jit products are not authorized for use in life support devices or systems. Pan Jit does not convey any license under its patent rights or rights of others. May 4,2011-REV.04 PAGE . 3
