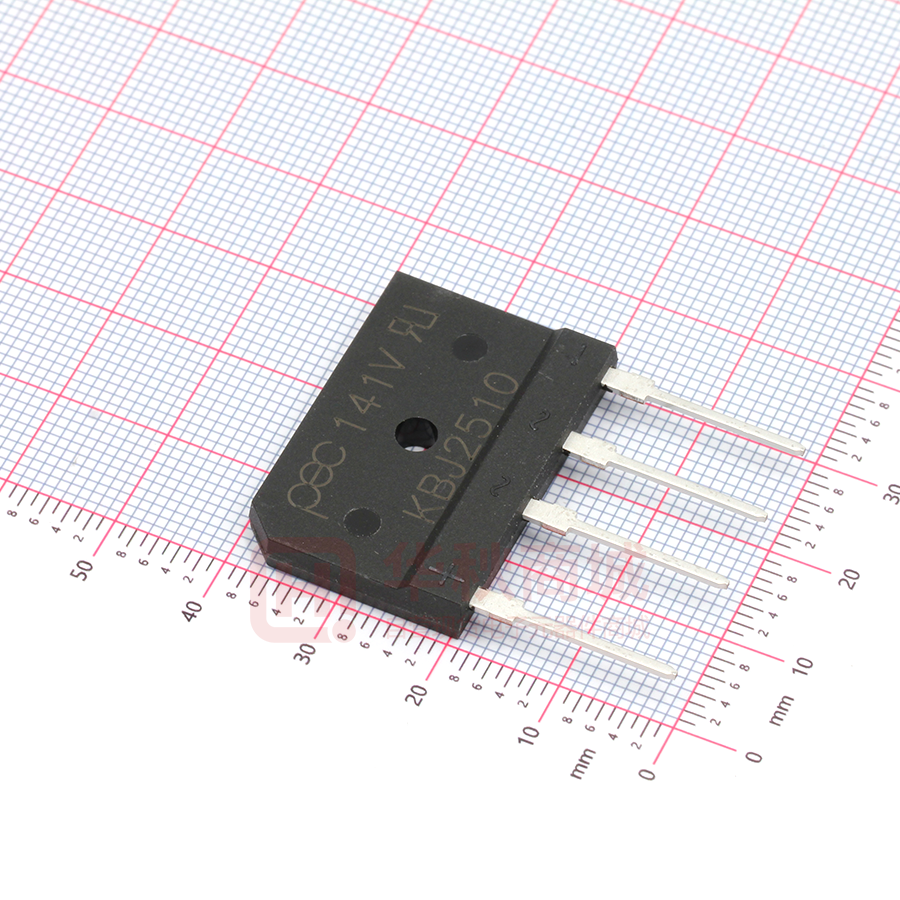

...KBJ2504~KBJ2510 Glass Passivated Bridge Rectifiers VOLTAGE 400 to 1000 Volt CURRENT 25 Ampere KBJ Unit: Inch(mm) FEATURES • UL Recognized File #E228882 0.189(4.8) 0.173(4.4) 1.193(30.3) • Plastic material has Underwriters Laboratory Flammability Classification 94V-O • Ideal for printed circuit board • Reliable low cost construction utilizing molded plastic technique. • Lead free in compliance with EU RoHS 2.0 • Glass passivated chip junction C0.118(C3.0) 1.169(29.7) 0.150(3.8) 0.385(9.8) • Case: KBJ • Terminals: Leads solderable per MIL-STD-750, Method 2026 • Polarity: As marked on body • Mounting torque: 8.5 inch-lbs. Max. • Weight: 6.96g 0.441(11.2) 0.669(17.0) 0.114(2.9) 0.098(2.5) 0.425(10.8) 0.197(5.0) 0.166(4.2) 0.149(3.8) 0.709(18.0) 0.035(0.90) 0.402(10.2) MECHANICAL DATA 0.078(2.0) 0.046(1.15) 0.095(2.4) 0.090(2.3) 0.775(19.7) 0.107(2.7) 0.800(20.3) 0.133(3.4) 0.031(0.8) 0.021(0.55) 0.304(7.7) 0.304(7.7) 0.287(7.3) 0.287(7.3) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25°Cambient temperature unless otherwise specified. SYMBOL KBJ 2504 KBJ 2506 KBJ 2508 KBJ 2510 UNIT Maximum repetitive peak reverse voltage VRRM 400 600 800 1000 V Maximum RMS voltage VRMS 280 420 560 700 V Maximum DC blocking voltage VDC 400 600 800 1000 V Maximum average forward rectified current IF(AV) 25 A Peak forward surge current, 8.3 ms single half sine-wave IFSM 350 A It 2 508 As VF 1 1.1 V PARAMETER Rating of fusing ( t
