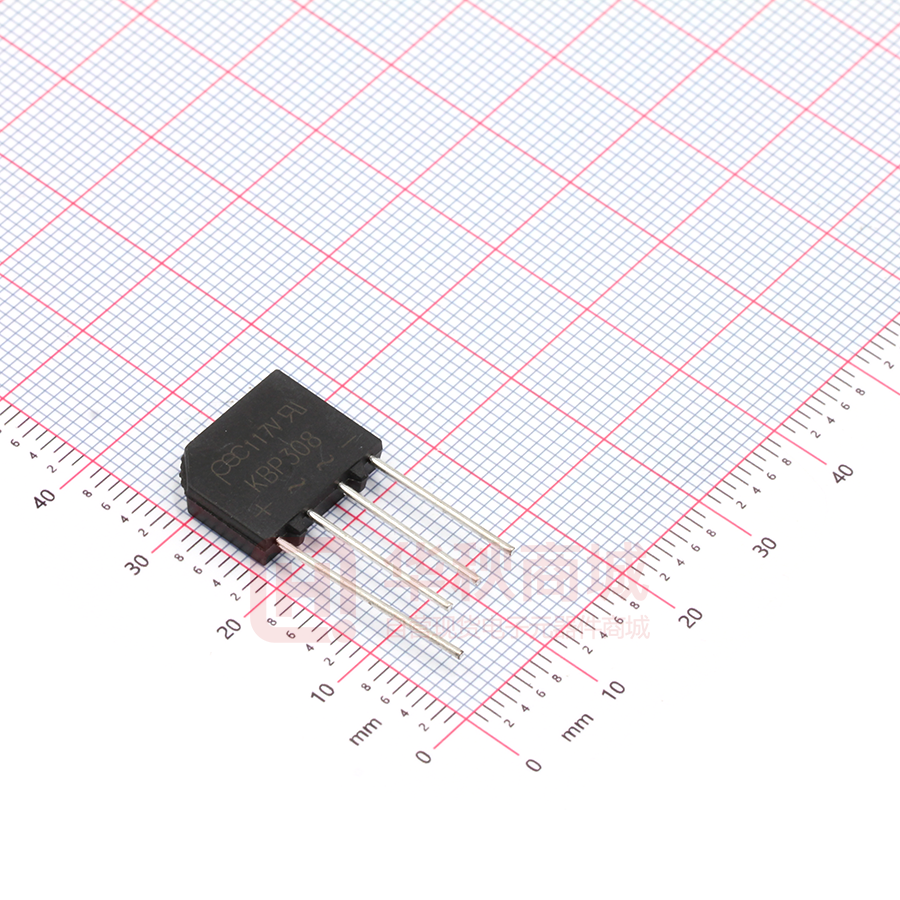

...KBP304~KBP3010 Glass Passivated Bridge Rectifiers VOLTAGE 400 to 1000 Volt CURRENT 3 Ampere KBPF Unit: Inch(mm) FEATURES • UL Recognized File #E228882 • Plastic material has Underwriters Laboratory Flammability Classification 94V-O • Ideal for printed circuit board • Reliable low cost construction utilizing molded plastic technique. • Lead free in compliance with EU RoHS2.0 (2011/65/EU & 2015/865/EU directive) •Glass passivated chip junction MECHANICAL DATA • Case: KBPF •Terminals: Leads solderable per MIL-STD-750, Method 2026 • Polarity: As marked on body • Weight: 1.6g MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25°Cambient temperature unless otherwise specified. SYMBOL KBP 304 KBP 306 KBP 308 KBP 3010 UNIT Maximum repetitive peak reverse voltage VRRM 400 600 800 1000 V Maximum RMS voltage VRMS 280 420 560 700 V Maximum DC blocking voltage VDC 400 600 800 1000 V Maximum average forward rectified current IF(AV) 3 A Peak forward surge current, 8.3 ms single half sine-wave IFSM 70 A It 2 20 As VF 1 1.1 V PARAMETER Rating of fusing ( t
