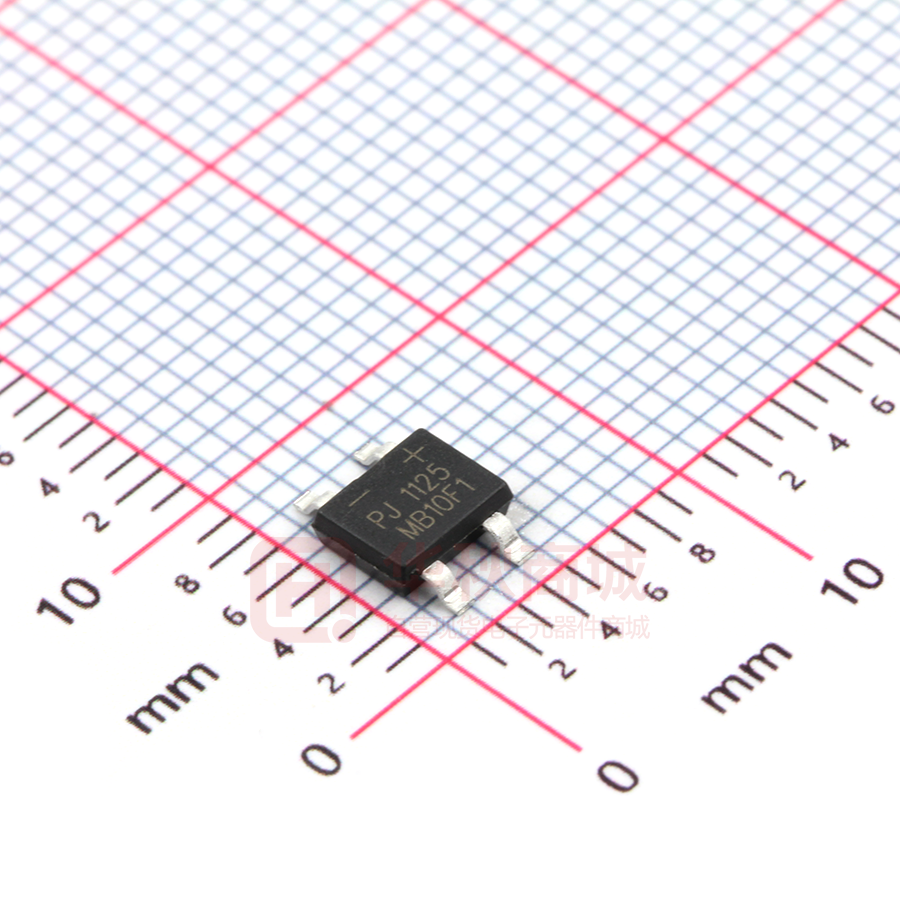

MB4F-10 SERIES MINI SURFACE MOUNT GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE 1 Amper 400~1000 Volt CURRENT Recongnized File #E111753 FEATURES • Ultra Thin Profile Package for Space Constrained Utilization • Glass Passivated Chip Junciton • Ideally Suited for Automatic Assembly • Save Space On Printed Circuit Boards • Low Forward Voltage Drop • Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA • Case : MBF, Plastic • Terminals : Solderable per MIL-STD-750, Method 2026 • Polarity : As Marked on case • Approx weight : 0.00289 ounces, 0.0818 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS PARAMETER SYMBOL MB4F-10 MB6F-10 MB4F1 MB6F1 MB8F1 MB10F1 Marking MB8F-10 MB10F-10 UNIT Maximum Recurrent Peak Reverse Voltage VRRM 400 600 800 1000 V Maximum RMS Voltage VRMS 280 420 560 700 V Maximum DC Blocking Voltage VDC 400 600 800 1000 V Maximum Average Rectified Forward Current I Peak Forward Surge Current : 0.5ms single square wave superimposed on rated load per diode F(AV) 1 A I FSM 96 A Peak Forward Surge Current : 1ms single square wave superimposed on rated load per diode I FSM 65 A Peak Forward Surge Current : 8.3ms single half-sine-wave superimposed on rated load per diode I FSM 30 A VF 1.1 V Maximum Forward Voltage at 1A o Maximum DC Reverse Current at TJ=25 C Typical Thermal Resistance per diode Operating Junction Temperature Range Storage Temperature Range I (Note 1) R μA 5 o RΘJC 30 TJ -55 to +150 o C TSTG -55 to +150 o C C/W Note:1.Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area April 14,2016-REV.04 PAGE . 1 1.2 1 0.8 0.6 0.4 0.2 Per Diode 0 0 25 50 75 100 125 150 TC, Case Temperature (°C) CJ, Junction Capacitance (pF) IF, Forward Current (A) MB4F-10 SERIES 10 Per Diode 1 1 10 100 VR, Reverse Bias Voltage (V) Fig.2 Typical Junction Capacitance 100 10 TJ = 150°C 10 TJ = 125°C 1 TJ = 75°C 0.1 0.01 TJ = 25°C Per Diode 0.001 10 20 30 40 50 60 70 80 90 100 Percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Reverse Characteristics April 14,2016-REV.04 IF, Forward Current (A) IR, Reverse Current (mA) Fig.1 Forward Current Derating Curve 100 TJ = 150°C 1 TJ = 75°C TJ = 125°C 0.1 TJ = 25°C 0.01 Per Diode 0.001 0 0.5 1 1.5 VF, Forward Voltage (V) Fig.4 Typical Forward Characteristics PAGE . 2 MB4F-10 SERIES MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 5K per 13" plastic Reel April 14,2016-REV.04 PAGE . 3 MB4F-10 SERIES Part No_packing code_Version MB4F-10_R2_10001 For example : RB500V-40_R2_00001 Serial number Version code means HF Part No. Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING April 14,2016-REV.04 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 MB4F-10 SERIES Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. April 14,2016-REV.04 PAGE . 5
