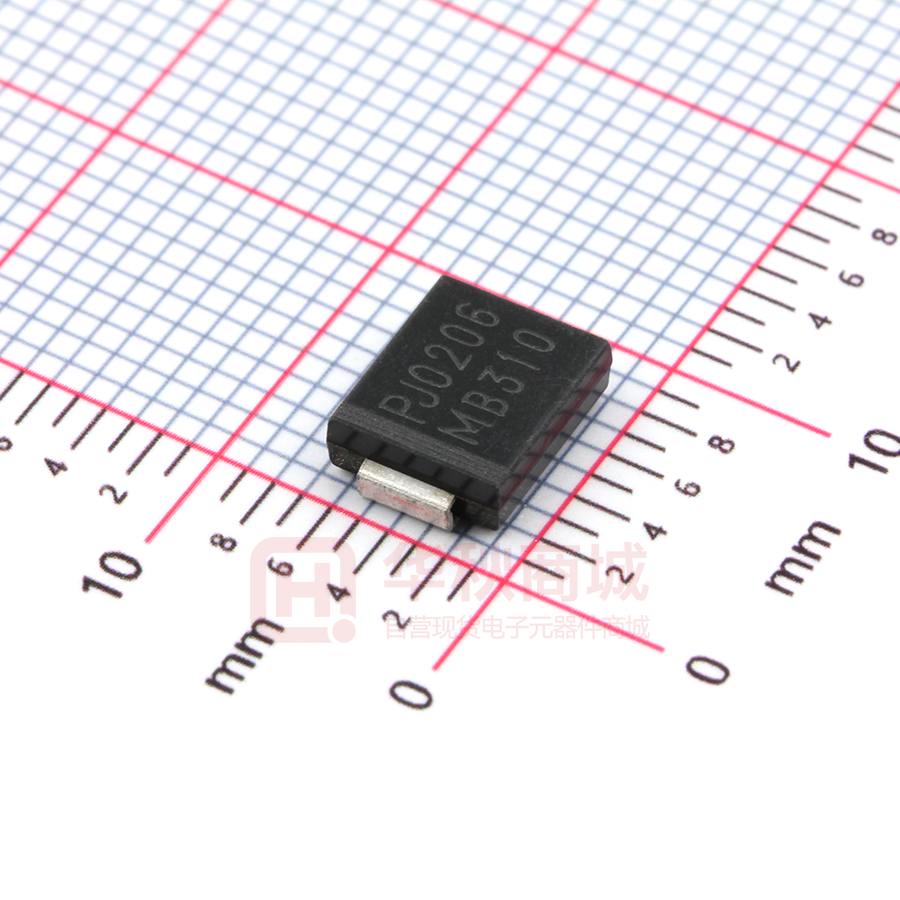

MB34~MB320 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER CURRENT 40 to 200 Volt 3 Ampere VOLTAGE FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • For surface mounted applications in order to optimize board space • Low power loss, high efficiency • High surge capacity • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard MECHANICAL DATA • • • • • Case: JEDEC DO-214AB molded plastic Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Standard packaging: 16mm tape (EIA-481) Weight: 0.0082 ounces, 0.2325 grams 1 2 Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Resistive or inductive load. PARAMETER SYMBOL MB34 MB34A MB35 MB36 MB38 MB39 MB310 Maximum Recurrent Peak Reverse Voltage VRRM 40 45 50 60 80 90 100 150 200 V Maximum RMS Voltage VRMS 28 31 . 5 35 42 56 63 70 105 140 V Maximum DC Blocking Voltage VDC 40 45 50 60 80 90 100 150 200 V Maximum Average Forward Current (See figure 1) IF(AV) 3 A Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load I FSM 100 A Maximum Forward Voltage at 3A (Note 1) VF Maximum DC Reverse Current at Rated DC Blocking Voltage TJ=25OC IR Maximum DC Reverse Current at Rated DC Blocking Voltage TJ=100OC IR Typical Junction Capacitance (V R=4V,1MHz) Typical Thermal Resistance (Note 2) (Note 3) Operating Junction and Storage Temperature Range 0.7 0.74 0.8 UNITS 0.9 V 0.05 2 mA 1 CJ 140 RθJL RθJA 15 110 T J , T ST G -55 to +150 MB315 MB320 -65 to +175 mA pF O C/W O C NOTES : 1. Pulse Test with PW =300µsec, 1% Duty Cycle. 2. Mounted on a FR4 PCB, single-sided copper, with 100cm 2 copper pad area. 3. Mounted on a FR4 PCB, single-sided copper, mini pad. April 30,2018­REV.12 PAGE . 1 IR, Leakage Current (mA) MB34~MB320 100 TJ = 150°C 10 1 TJ = 125°C 0.1 TJ = 75°C 0.01 TJ = 25°C 0.001 0.0001 40~60V 10 20 30 40 50 60 70 80 90 100 Percent of Rated Peak Reverse Voltage (%) Fig.1 Forward Current Derating Curve Fig.2 Typical Reverse Characteristics IR, Leakage Current (μA) IR, Leakage Current (μA) 10000 TJ = 150°C 1000 100 TJ = 125°C 10 TJ = 75°C 1 0.1 TJ = 25°C 0.01 0.001 80~100V 10 20 30 40 50 60 70 80 90 100 10000 100 10 TJ = 25°C 0.01 0.001 150~200V 10 20 30 40 50 60 70 80 90 100 Percent of Rated Peak Reverse Voltage (%) Fig.4 Typical Reverse Characteristics 10 IF, Forward Current (A) IF, Forward Current (A) TJ = 75°C 0.1 10 TJ =150°C 1 TJ =125°C 0.1 0.01 TJ = 125°C 1 Percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Reverse Characteristics TJ = 150°C 1000 TJ = 25°C TJ = 75°C 40~60V 0 0.2 0.4 0.6 0.8 VF, Forward Voltage (V) Fig.5 Typical Forward Characteristics April 30,2018­REV.12 TJ =150°C 1 TJ = 25°C TJ =125°C 0.1 TJ = 75°C 80~100V 0.01 0 0.2 0.4 0.6 0.8 1 VF, Forward Voltage (V) Fig.6 Typical Forward Characteristics PAGE . 2 10 TJ =150°C 1 TJ = 25°C TJ =125°C 0.1 TJ = 75°C 150~200V 0.01 0 0.2 0.4 0.6 0.8 1 VF, Forward Voltage (V) Fig.7 Typical Forward Characteristics April 30,2018­REV.12 Percent of Reverse Voltage (%) IF, Forward Current (A) MB34~MB320 120 100 80 60 40 20 0 0 25 50 75 100 125 150 175 TJ, Junction Temperature (°C) Fig.8 Operating Temperature Derating Curve PAGE . 3 MB34~MB320 MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 3K per 13" plastic Reel T/R - 0.8K per 7" plastic Reel April 30,2018­REV.12 PAGE . 4 MB34~MB320 Part No_packing code_Version MB34_R1_00001 MB34_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Packing size code means 13" Part No. Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING April 30,2018­REV.12 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 MB34~MB320 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. April 30,2018­REV.12 PAGE . 6
