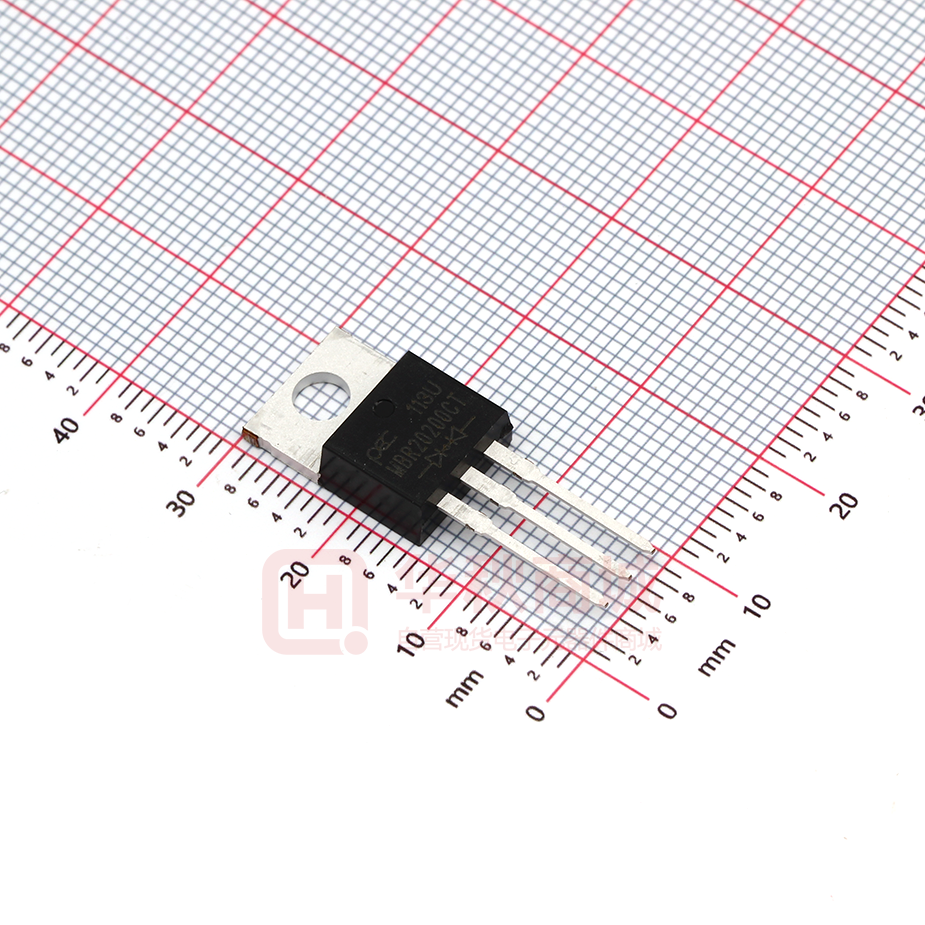

MBR20200CT_T0_00001

MBR2040CT~MBR20200CT 20 AMPERES SCHOTTKY BARRIER RECTIFIERS VOLTAGE 40 to 200 Volt 20 Ampere CURRENT FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound. • Low power loss, high efficiency. • High current capability • For use in low voltage, high frequency inverters free wheeling, and polarlity protection applications. • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA • Case: TO-220AB molded plastic • Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 • Polarity: As marked. • Weight: 0.067 ounces, 1.89 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20% PARAMETER SYMBOL MBR2040CT MBR2045CT MBR2050CT MBR2060CT MBR2080CT MBR2090CT MBR20100CT MBR20150CT MBR20200CT UNITS Maximum Recurrent Peak Reverse Voltage V RRM 40 45 50 60 80 90 100 150 200 V Maximum RMS Voltage V RMS 28 31.5 35 42 56 63 70 105 140 V Maximum DC Blocking Voltage V DC 40 45 50 60 80 90 100 150 200 V Maximum Average Forward Current (See fig.1) IF(AV) 20 A Peak Forward Surge Current :8.3ms single half sine-wave superimposed on rated load IFSM 200 A Maximum Forward Voltage at 10A, per leg VF Maximum DC Reverse Current at Rated DC Blocking Voltage T J =25 O C T J =125 O C Typical Thermal Resistance Operating Junction and Storage Temperature Range 0.7 0.75 0.8 IR 0.05 20 R θJC 2 T J ,T STG -50 to + 150 0.9 V mA O -65 to +175 C/W O C Notes : Both Bonding and Chip structure are available. October 21,2016-REV.05 PAGE . 1 MBR2040CT~MBR20200CT RATING AND CHARACTERISTIC CURVES = 40V = 45-200V 16.0 12.0 8.0 RESISTIVE OR INDUCTIVE LOAD 4.0 0 0 20 40 60 80 100 120 140 160 180 PEAK FORWARD SURGE CURRENT, Amps AVERAGE FORWARD RECTIFIED CURRENT AMPERES 20.0 240 210 8.3ms Single Half Since-Wave JEDEC Method 180 150 120 90 60 30 0 1 2 5 10 20 50 100 O LEAD TEMPERATURE, C NO. OF CYCLE AT 60Hz Fig.2 MAXIMUM NON - REPETITIVE SURGE CURRENT Fig.1 FORWARD CURRENT DERATING CURVE 10 INSTANTANEOUS REVERSE CURRENT, mA 40 FORWARD CURRENT, Amps 40-45V T J =100 O C 1.0 T J = 75 O C 0.1 T J = 25 O C .01 10 8 6 4 50-60V 80-100V 2 150-200V 1.0 .8 .6 .4 O TJ = 25 C Pulse Width = 300 us 1% Duty Cycle .2 .1 .001 0 20 40 60 80 100 120 .4 140 .5 .6 .7 .8 0.9 1.0 1.1 FORWARD VOLTAGE, VOLTS Fig.3 TYPICAL REVERSE CHARACTERISTICS Fig.4 TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS Percent of Reverse Voltage (%) PERCENT OF INSTANTANEOUS REVERSE VOLTAGE,(%) 120 100 80 60 40V 40 45~200V 20 0 0 25 50 75 100 125 150 175 TJ, Junction Temperature (°C) Fig.5 Operating Temperature Derating Curve October 21,2016­REV.05 PAGE . 2 MBR2040CT~MBR20200CT Part No_packing code_Version MBR2040CT_T0_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Packing size code means 13" Part No. Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING October 21,2016-REV.05 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 3 MBR2040CT~MBR20200CT Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. October 21,2016-REV.05 PAGE . 4
