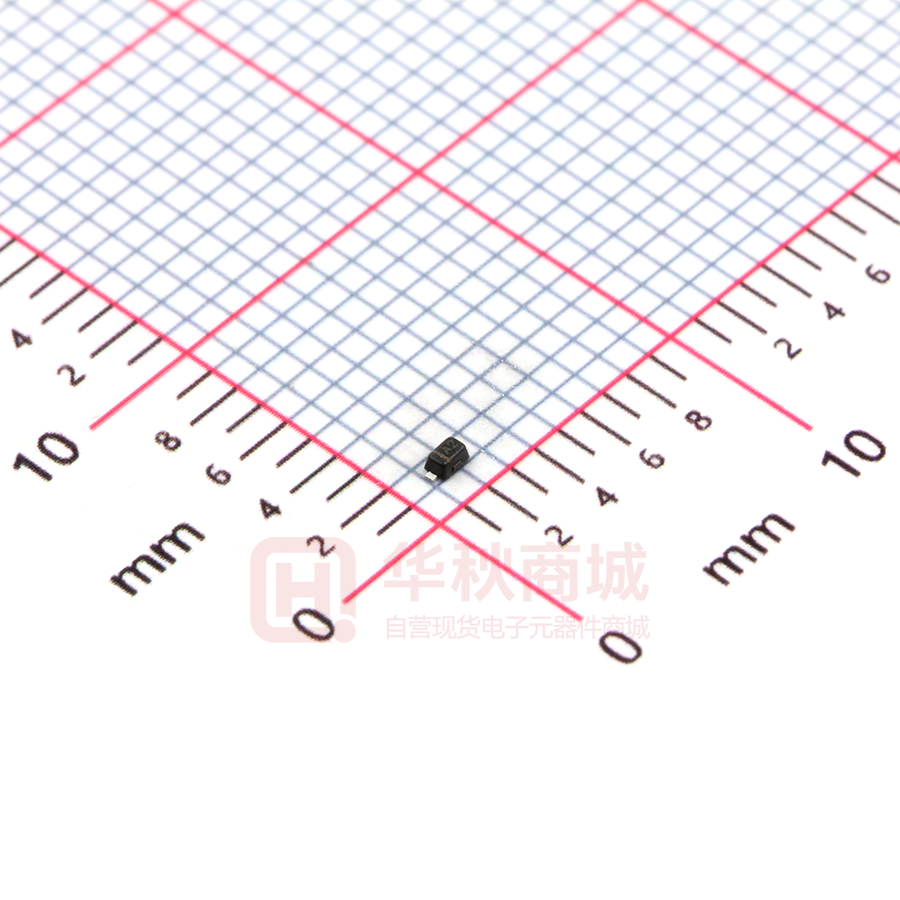

MMBD4148TS_R1_00001

MMBD4148TS SURFACE MOUNT SWITCHING DIODES VOLTAGE POWER 100 Volt 200mWatt FEATURES • Fast switching Speed. • Electrically ldentical to Standerd JEDEC • Surface Mount Package ldeally Suited for Automatic lnsertion. • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.014(0.35) 0.009(0.25) 0.034(0.85) 0.029(0.75) 0.026(0.65) 0.021(0.55) 0.006(0.15) 0.002(0.05) MECHANICAL DATA 0.067(1.70) 0.059(1.50) • Case: SOD-523 plastic case. • Terminals : Solderable per MIL-STD-750,Method 2026 • Standard packaging: 8mm tape • Approx. Weight : 0.0001 ounces, 0.0014 grams • Marking Code: A2 ABSOLUTE RATINGS 0.050(1.25) 0.045(1.15) 0.20 MIN. O (T =25 C , unless otherwise noted) A PARAMETER SYMBOL VALUE UNITS VR 75 V Peak Reverse Voltage VRRM 100 V RMS Voltage VRMS 50 V Maximum DC Blocking Voltage VDC 75 V Maximum Average Forward Current at T A =25 O C I F(AV) 150 mA Peak Forward Surge Current, 1.0 μs I FSM 4 A Power Dissipation Derate Above 25 OC PTOT 200 mW TJ 150 O TSTG -40 to 150 O SYMBOL VALUE RθJA 635 Reverse Voltage Junction Temperature Storage Temperature Range C C THERMAL CHARACTERISTICS PARAMETER Typical Thermal Resistance May 31,2016­REV.04 UNITS O C/W PAGE . 1 MMBD4148TS ELECTRICAL CHARACTERISTICS (TA=25 C , unless otherwise noted) O PARAMETER SYMBOL TEST CONDITIONS VALUE UNITS Maximum Forward Voltage VF IF=1mA IF=10mA IF=50mA IF=150mA 0.715 0.855 1.00 1.25 V Reverse Leakage Current IR VR=20V VR=75V 0.025 2.5 μA Maximum Total Capacitance CT VR=0V, f=1MHz 1.5 pF Maximum Reverse Recovery Time trr IF=10mA,IR=1mA VR=6V,RL=100Ω 4 ns May 31,2016­REV.04 PAGE . 2 MMBD4148TS MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 5K per 7" plastic Reel May 31,2016­REV.04 PAGE . 3 MMBD4148TS Part No_packing code_Version MMBD4148TS_R1_00001 MMBD4148TS_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Part No. Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING May 31,2016­REV.04 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 MMBD4148TS Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. May 31,2016­REV.04 PAGE . 5
