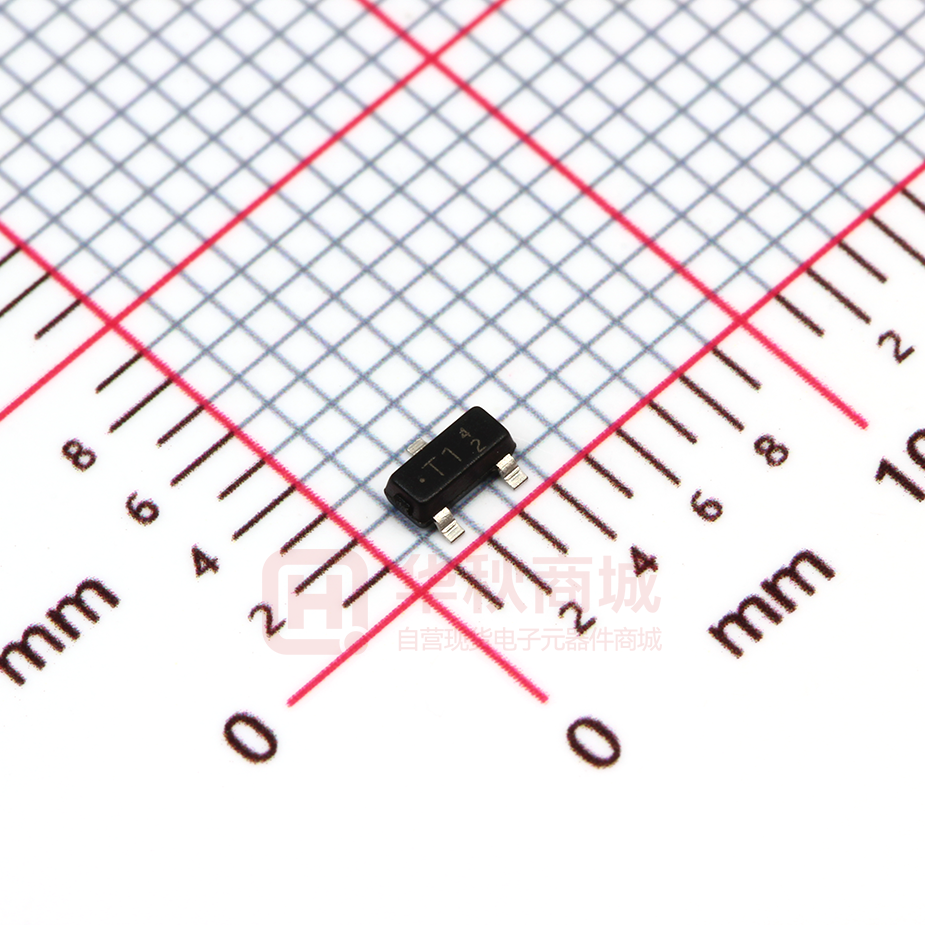

MMBD914 SURFACE MOUNT SWITCHING DIODE 100 Volt POWER 225 mWatt FEATURES 0.006(0.15)MIN. VOLTAGE 0.120(3.04) 0.110(2.80) • Very fast reverse recovery (Trr < 2ns typical) • Low capacitance (4pF @ 0V typical) • Surface mount package ideally suited for automatic insertion • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.056(1.40) 0.047(1.20) 0.008(0.20) 0.079(2.00) 0.003(0.08) 0.070(1.80) MECHANICAL DATA 0.044(1.10) 0.004(0.10) • Case: SOT-23 plastic case. • Terminals: Solderable per MIL-STD-750,Method 2026 • Approx. Weight: 0.0003 ounces, 0.0084 grams • Marking : T1 0.035(0.90) 0.000(0.00) 0.020(0.50) 0.013(0.35) ABSOLUTE RATINGS Parameter Symbol Value Units VR 100 V VRRM 100 V F 0.2 A FSM 4 A Symbol Value Units Power Dissipation (Note 1) PTOT 225 mW Thermal Resistance, Junction to Ambient (Note 1) RΘJA 556 TJ ,TSTG -55 to 150 Maximum Reverse Voltage Peak Reverse Voltage Continuous Forward Current Non-repetitive Peak Forward Surge Current at t = 1μs I I THERMAL CHARACTERISTICS Parameter Operating Junction And Storage Temperature Range NOTE : 1. FR-5 Board = 1X0.75X0.062 in. o C/W o C SINGLE Fig.14 June 27,2014-REV.02 PAGE . 1 MMBD914 ELECTRICAL CHARACTERISTICS (TJ=25OC unless otherwise noted) Parameter Reverse Breakdown Voltage Symbol Test Condition Min. Typ. Max. Units V(BR) IR=100μA 100 - - V Reverse Current IR VR=20V VR=75V - - 0.025 5 μA Forward Voltage VF IF=10mA - - 1 V Total Capacitance CJ f=1.0MHz , VR=0V - - 4 pF Reverse Recovery Time (Figure 1) TRR IF=I R=10mA, RL=100Ω - - 4 ns June 27,2014-REV.02 PAGE . 2 MMBD914 ELECTRICAL CHARACTERISTICS CURVE 10.000 100 TJ = 150 ˚C 1.000 Forward Current, IF (mA) Reverse Leakage Current, I R (uA) TJ = 150 ˚C TJ = 75 ˚C 0.100 0.010 10 TJ = 25 ˚C TJ = 75 ˚C 1 TJ = 25 ˚C TJ = -25 ˚C 0.1 0.001 0 20 40 60 0.0 80 0.2 0.4 0.6 0.8 1.0 1.2 Forward Voltage, VF (V) Reverse Voltage, VR (V) Fig. 3. Forward Current vs. Forward Voltage Fig. 2. Reverse Current vs. Reverse Voltage 2.5 Capacitance (pF) 2 1.5 1 0.5 0 0 10 20 30 40 50 60 70 80 Reverse Voltage, VR (V) Fig. 4. Capacitance vs. Reverse Voltage June 27,2014-REV.02 PAGE . 3 MMBD914 0.035 MIN. (0.90) MIN. MOUNTING PAD LAYOUT 0.078 (2.00) 0.037 (0.95) 0.043 (1.10) 0.031 MIN. (0.80) MIN. 0.043 (1.10) 0.106 (2.70) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7" plastic Reel June 27,2014-REV.02 PAGE . 4 MMBD914 Part No_packing code_Version MMBD914_R1_00001 MMBD914_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING June 27,2014-REV.02 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 MMBD914 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. June 27,2014-REV.02 PAGE . 6
