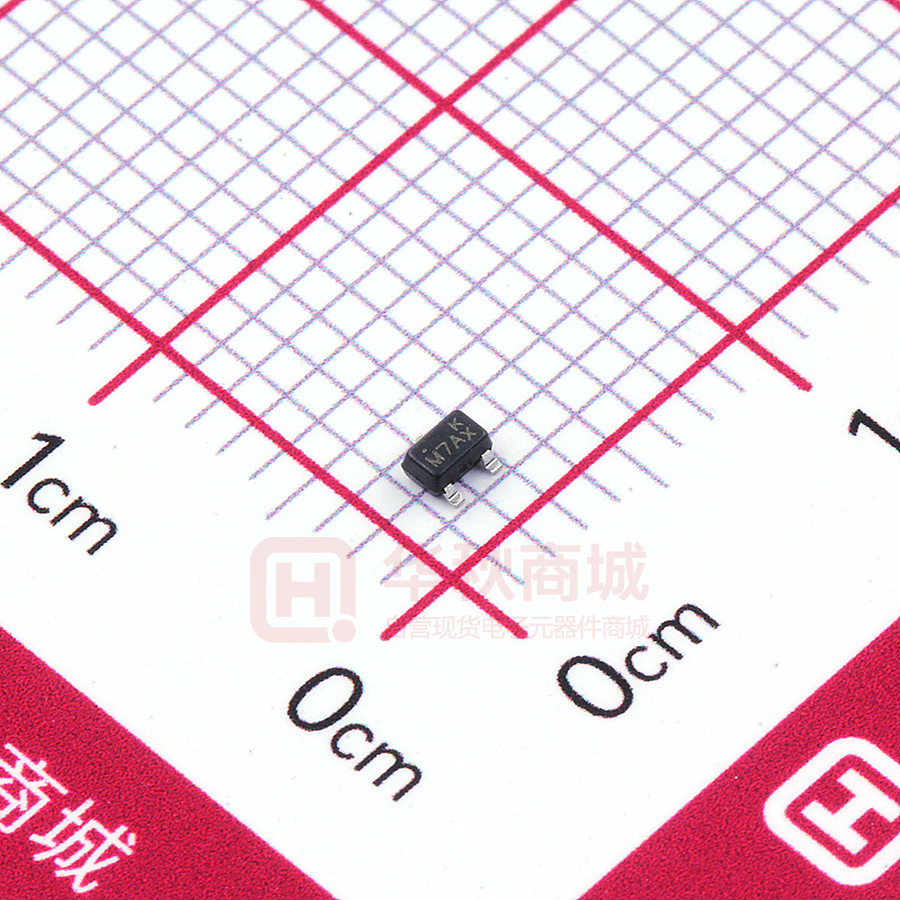

MMBT2907AW PNP GENERAL PURPOSE SWITCHING TRANSISTOR VOLTAGE 225 mW POWER 60 Volts SOT-323 Unit: inch (mm) PNP epitaxial silicon, planar design Collector-emitter voltage VCE = -60V 0.087(2.20) 0.070(1.80) Collector current IC = -600mA 0.087(2.20) 0.078(2.00) 0.004(0.10)MIN. FEATURES Lead free in compliance with EU RoHS2.0 (2011/65/EU & 2015/865/EU directive) 0.054(1.35) 0.045(1.15) Green molding compound as per IEC61249 Std. . (Halogen Free) 0.006(0.15) 0.002(0.05) 0.056(1.40) 0.047(1.20) MECHANICAL DATA 0.044(1.10) 0.035(0.90) 0.004(0.10)MAX. Case: SOT-323 Terminals : Solderable per MIL-STD-750,Method 2026 Approx Weight: 0.0048 gram Top View 3 Collector Device Marking : M7A 0.016(0.40) 0.008(0.20) 3 COLLECTOR 1 BASE 1 Base 2 Emitter 2 EMITTER ABSOLUTE MAXIMUM RATINGS Parameter Symbol Value Units Collector-Emitter Voltage VC E O -60 V Collector-Base Voltage VC B O -60 V Emitter-Base Voltage VE B O -5.0 V IC -600 mA Symbol Value Units Max Power Dissipation (Note 1) PT O T 225 mW Storage Temperature TS T G -55 to 150 O C Junction Temperaure TJ -55 to 150 O C RΘ J A 556 Collector Current-Continuous THERMAL CHATACTERISTICS Parameter Thermal Resistance, Junction to Ambient O C/W Note 1 : Transistor mouted on FR-5 board 1.0 x 0.75 x 0.062 in. May 26,2017-REV.02 PAGE . 1 MMBT2907AW ELECTRICAL CHARACTERISTICS Parameter (TJ=25OC, unless otherwise noted) Symbol Test Condition Min. Typ. Max. Units Collector-Emitter Breakdown Voltage V(B R )C EO IC =-10mA,IB =0 -60 - - V Collector-Base Breakdown Voltage V(B R )C BO IC =-10µA,IE =0 -60 - - V Emitter-Base Breakdown Voltage V(B R )EBO IE =-10µA,IC =0 -5.0 - - V IB L VC E =-30V,VE B =-0.5V - - -50 nA IC E X VC E =-30V,VE B =-0.5V - - -50 nA VC E =-50V,IE =0 - - -10 nA VC E =-50V,IE =0 TJ =125O C - - -10 µA hF E IC =-0.1mA,VC E =-10V IC =-1.0mA,VC E =-10V IC =-10mA,VC E =-10V IC =-150mA,VC E =-10V IC =-500mA,VC E =-10V 75 100 100 100 50 - 300 - - Collector-Emitter Saturation Voltage VC E (S A T ) IC =-150mA,IB =-15mA IC =-500mA,IB =-50mA - - -0.4 -1.6 V Base-Emitter Saturation Voltage VB E (S A T ) IC =-150mA,IB =-15mA IC =-500mA,IB =-50mA - - -1.3 -2.6 V Collector-Base Capacitance CC B O VC B =-10V,IE =0,f=1MHz - - 8.0 pF Emitter-Base Capacitance CE B O VC B =-2V,IC =0,f=1MHz - - 30 pF Current Gain-Bandwidth Product FT IC =-50mA,VC E =-20V, f=100MHz 200 - - MHz Turn-On Time to n VC C =-30V,VB E =-0.5V, IC =-150mA,IB =-15mA - - 45 ns Delay Time td VC C =-30V,VB E =-0.5V, IC =-150mA,IB =-15mA - - 10 ns Rise Time tr VC C =-30V,VB E =-0.5V, IC =-150mA,IB 1 =-15mA - - 40 ns Turn-Off Time to ff VC C =-6V,IC =-150mA, IB 1 =IB 2 =-15mA - - 100 ns Storage Time ts VC C =-6V,IC =-150mA, IB 1 =IB 2 =-15mA - - 80 ns Fall Time tf VC C =-6V,IC =-150mA, IB 1 =IB 2 =-15mA - - 30 ns Base Cutoff Current Collector Cutoff Current IC B O DC Current Gain May 26,2017-REV.02 PAGE . 2 MMBT2907AW h FE, NORMALIZED CUTTENT GAIN 3.0 VCE=-1.0V VCE=-10V 2.0 O T J=125 C O 25 C 1.0 -55 OC 0.7 0.5 0.3 0.2 -0.1 -0.2 -0.3 -0.5 -0.7 -1.0 -2.0 -3.0 -5.0 -7.0 -10 -20 -30 -50 -70 -100 -200 -300 -500 I C, COLLECTOR CURRENT (mA) Fig.1-DC Cuttent Gain V CE, COLLECTOR-EMITTER VOLTAGE (VOLTS) -1.0 -0.8 I C=-1.0mA -10mA -100mA -500mA -0.6 -0.4 -0.2 0 -0.005 -0.01 -0.02 -0.03 -0.05-0.07 -0.1 -0.2 -0.3 -0.5 -0.7 -1.0 -2.0 -3.0 -5.0 -7.0 -10 -20 -30 -50 I B, BASE CUTTENT (mA) Fig.2-Collector Saturation Region 500 tr 300 V CC=-30V I C/I B=10 T J=25 OC 100 70 50 30 20 10 7.0 5.0 td@V BE(OFF)=0V 3.0 -5.0 -7.0 -10 May 26,2017-REV.02 2.0V -20 -30 -50 -70 -100 -200 -300 -500 I C, COLLECTOR CURRENT Fig.3-Turn-On Time V CC=-30V I C/I B=10 I B1=I B2 T J=25 OC tf 200 t, TIME (ns) t, TIME (ns) 300 200 100 70 50 30 t ,s=t s-1/8t f 20 10 7.0 5.0 -5.0 -7.0 -10 -20 -30 -50 -70 -100 -200-300 -500 I C,COLLECTOR CURRENT (mA) Fig.4-Turn-Off Time PAGE . 3 MMBT2907AW 10 10 NF, NOISE FIGURE (dB) NF, NOISE FIGURE (dB) f=1.0kHz 8.0 I C=-1.0mA,R S=430 W -500 m A,R S=560 W -50 m A,R =2.7k W -100 m A,R =1.6 W 6.0 4.0 R S=OPTIMUM SOURCE RESISANCE 2.0 0 0.01 0.02 0.05 0.1 0.2 0.5 1.0 2.0 5.0 10 20 50 8.0 I C=-50 m A -100 m A -500 m A -1.0mA 6.0 4.0 2.0 100 0 50 100 f,FREQUENCY (kHz) 200 500 1.0k 2.0k 5.0k 10k 20k R S, SOURGE RESISTANCE (OHMS) Fig.5-Frequency Effects Fig.6-Source Resistance Effects 400 C eb 20 10 7.0 C cb 5.0 3.0 -0.2 -0.3 -0.5 -1.0 - 2 . 0- 3 . 0 - 5 . 0 -10 f T , CURREN T-GAIN- BANDW IDTH PRODU CT (MHz) C,CAPACITANCE (pF) 30 2.0 -0.1 300 200 100 80 40 30 -5.0 -10 -20 -50 -100 -200 -500-1000 I C, COLLECTOR CUTTENT (mA) Fig.7-Capacitances Fig.8-Current-Gain-Bandwidth Product -1.0 +0.5 T J=25 C V BE(sat)@I C/I B=10 0 V BE(on)@V CE=-10V -0.6 -0.4 -0.2 V CE(sat)@ I C/I B=10 0 -0.1 -0.2 -0.5 -1.0 -2.0 -5.0 -10 -20 - 5 0 - 1 0 0- 2 0 0 - 5 0 0 I C,COLLECTOR CURRENT (mA) Fig.9-On Voltage May 26,2017-REV.02 O COEFFICIEN T (mV/ C) O V,VOLTAGE (VOLTS) V CE=-20V O T J=25 C 60 20 -1.0 -2.0 -20 -30 REVERSE VOLTAGE (VOLTS) -0.8 50k R QVC for V CE(sat) -0.5 -1.0 -1.5 -2.0 R QVB for V BE -2.5 -0.1 -0.2 -0.5 -1.0 -2.0 -5.0 -10 -20 -50 -100 -200 -500 I C,COLLECTOR CUTTENT (mA) Fig.10-Temperature Coefficients PAGE . 4 MMBT2907AW MOUNTING PAD LAYOUT 0.026 (0.66) 0.026 (0.65) 0.026 (0.65) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7" plastic Reel May 26,2017-REV.02 PAGE . 5 MMBT2907AW Part No_packing code_Version MMBT2907AW_R1_00001 MMBT2907AW_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Packing size code means 13" Packing type means T/R Part No. Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING May 26,2017-REV.02 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 6 MMBT2907AW Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. May 26,2017-REV.02 PAGE . 7
