MMBT2907A_R1_00001

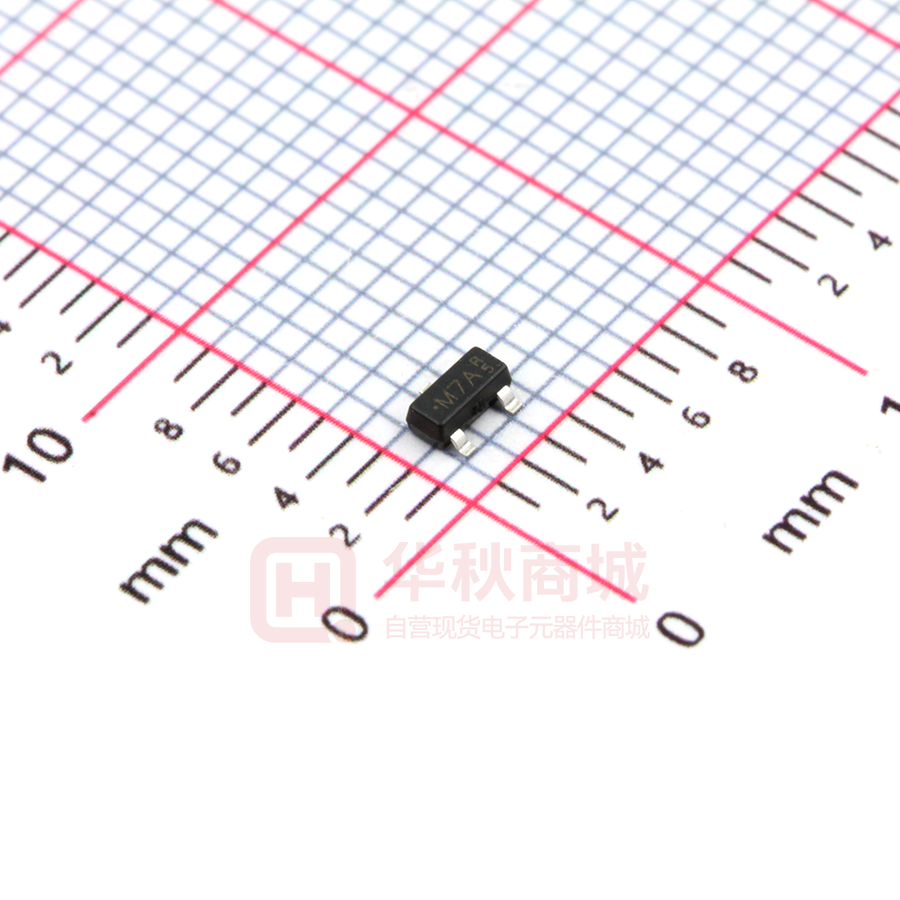

MMBT2907A PNP GENERAL PURPOSE SWITCHING TRANSISTOR VOLTAGE 60 Volts POWER 225 mWDWWV PNP epitaxial silicon, planar design 0.006(0.15)MIN. FEATURES 0.120(3.04) 0.110(2.80) Collector-emitter voltage VCE = -60V Collector current IC = -600mA /HDGIUHHLQFRPSO\ZLWK(85R+6(&GLUHFWLYHV *UHHQPROGLQJFRPSRXQGDVSHU,(&6WG+DORJHQ)UHH 0.056(1.40) 0.047(1.20) MECHANICAL DATA 0.008(0.20) 0.079(2.00) 0.003(0.08) 0.070(1.80) Case: SOT-23 Terminals : Solderable per MIL-STD-750,Method 2026 Approx Weight: RXQFHV0.008 grams 0.044(1.10) 0.004(0.10) Device Marking : M7A 0.000(0.00) 0.035(0.90) 0.020(0.50) 0.013(0.35) 3 COLLECTOR Top View 3 Collector 1 BASE 1 Base 2 Emitter 2 EMITTER ABSOLUTE MAXIMUM RATINGS Parameter Symbol Value Units Collector-Emitter Voltage VC E O -60 V Collector-Base Voltage VC B O -60 V Emitter-Base Voltage VE B O -5.0 V IC -600 mA Symbol Value Units Max Power Dissipation (Note 1) PT O T 225 mW Storage Temperature TS T G -55 to 150 O C Junction Temperaure TJ -55 to 150 O C RΘ J A 556 Collector Current-Continuous THERMAL CHATACTERISTICS Parameter Thermal Resistance, Junction to Ambient O C/W Note 1 : Transistor mouted on FR-4 board 70 x 60 x 1mm. STAD-JUN.29.2005 PAGE . 1 MMBT2907A ELECTRICAL CHARACTERISTICS Parameter (TJ=25OC, unless otherwise noted) Symbol Test Condition Min. Typ. Max. Units Collector-Emitter Breakdown Voltage V(B R )C EO IC =-10mA,IB =0 -60 - - V Collector-Base Breakdown Voltage V(B R )C BO IC =-10µA,IE =0 -60 - - V Emitter-Base Breakdown Voltage V(B R )EBO IE =-10µA,IC =0 -5.0 - - V IB L VC E =-30V,VE B =-0.5V - - -50 nA IC E X VC E =-30V,VE B =-0.5V - - -50 nA VC E =-50V,IE =0 - - -10 nA VC E =-50V,IE =0 TJ =125O C - - -10 µA hF E IC =-0.1mA,VC E =-10V IC =-1.0mA,VC E =-10V IC =-10mA,VC E =-10V IC =-150mA,VC E =-10V IC =-500mA,VC E =-10V 75 100 100 100 50 - 300 - - Collector-Emitter Saturation Voltage VC E (S A T ) IC =-150mA,IB =-15mA IC =-500mA,IB =-50mA - - -0.4 -1.6 V Base-Emitter Saturation Voltage VB E (S A T ) IC =-150mA,IB =-15mA IC =-500mA,IB =-50mA - - -1.3 -2.6 V Collector-Base Capacitance CC B O VC B =-10V,IE =0,f=1MHz - - 8.0 pF Emitter-Base Capacitance CE B O VC B =-2V,IC =0,f=1MHz - - 30 pF Current Gain-Bandwidth Product FT IC =-50mA,VC E =-20V, f=100MHz 200 - - MHz Turn-On Time to n VC C =-30V,VB E =-0.5V, IC =-150mA,IB =-15mA - - 45 ns Delay Time td VC C =-30V,VB E =-0.5V, IC =-150mA,IB =-15mA - - 10 ns Rise Time tr VC C =-30V,VB E =-0.5V, IC =-150mA,IB 1 =-15mA - - 40 ns Turn-Off Time to ff VC C =-6V,IC =-150mA, IB 1 =IB 2 =-15mA - - 100 ns Storage Time ts VC C =-6V,IC =-150mA, IB 1 =IB 2 =-15mA - - 80 ns Fall Time tf VC C =-6V,IC =-150mA, IB 1 =IB 2 =-15mA - - 30 ns Base Cutoff Current Collector Cutoff Current IC B O DC Current Gain STAD-JUN.21.2005 PAGE . 2 MMBT2907A h FE, NORMALIZED CUTTENT GAIN 3.0 VCE=-1.0V VCE=-10V 2.0 O T J=125 C O 25 C 1.0 O 0.7 -55 C 0.5 0.3 0.2 -0.1 -0.2 -0.3 -0.5 -0.7 -1.0 -2.0 -3.0 -5.0 -7.0 -10 -20 -30 -50 -70 -100 -200 -300 -500 I C, COLLECTOR CURRENT (mA) Fig.1-DC Cuttent Gain V CE, COLLECTOR-EMITTER VOLTAGE (VOLTS) -1.0 -0.8 I C=-1.0mA -10mA -100mA -500mA -0.6 -0.4 -0.2 0 -0.005 -0.01 -0.02 -0.03 -0.05-0.07 -0.1 -0.2 -0.3 -0.5 -0.7 -1.0 -2.0 -3.0 -5.0 -7.0 -10 -20 -30 -50 I B, BASE CUTTENT (mA) Fig.2-Collector Saturation Region 500 tr 300 V CC=-30V I C/I B=10 O T J=25 C 100 70 50 30 20 10 7.0 5.0 td@V BE(OFF)=0V 3.0 -5.0 -7.0 -10 STAD-JUN.29.2005 2.0V -20 -30 -50 -70 -100 -200 -300 -500 I C, COLLECTOR CURRENT Fig.3-Turn-On Time V CC=-30V I C/I B=10 I B1=I B2 T J=25 OC tf 200 t, TIME (ns) t, TIME (ns) 300 200 100 70 50 30 , t s=t s-1/8t f 20 10 7.0 5.0 -5.0 -7.0 -10 -20 -30 -50 -70 -100 -200-300 -500 I C,COLLECTOR CURRENT (mA) Fig.4-Turn-Off Time PAGE . 3 MMBT2907A 10 10 NF, NOISE FIGURE (dB) NF, NOISE FIGURE (dB) f=1.0kHz 8.0 I C=-1.0mA,R S=430 W -500 m A,R S=560 W -50 m A,R =2.7k W -100 m A,R =1.6 W 6.0 4.0 R S=OPTIMUM SOURCE RESISANCE 2.0 0 0.01 0.02 0.05 0.1 0.2 0.5 1.0 2.0 5.0 10 20 50 8.0 I C=-50 m A -100 m A -500 m A -1.0mA 6.0 4.0 2.0 100 0 50 100 f,FREQUENCY (kHz) 200 500 1.0k 2.0k 5.0k 10k 20k R S, SOURGE RESISTANCE (OHMS) Fig.5-Frequency Effects Fig.6-Source Resistance Effects 400 C eb 20 10 7.0 C cb 5.0 3.0 -0.2 -0.3 -0.5 -1.0 -2.0-3.0 -5.0 -10 f T , CURREN T-GAIN- BANDW IDTH PRODU CT (MHz) C,CAPACITANCE (pF) 30 2.0 -0.1 300 200 100 80 40 30 -10 -20 -50 -100 -200 -500-1000 Fig.8-Current-Gain-Bandwidth Product -1.0 +0.5 T J=25 C V BE(sat)@I C/I B=10 0 V BE(on)@V CE=-10V -0.6 -0.4 -0.2 V CE(sat)@ I C/I B=10 0 -0.1 -0.2 -0.5 -1.0 -2.0 -5.0 -10 -20 -50 -100-200 -500 I C,COLLECTOR CURRENT (mA) Fig.9-On Voltage O COEFFICIEN T (mV/ C) O STAD-JUN.29.2005 -5.0 I C, COLLECTOR CUTTENT (mA) Fig.7-Capacitances -0.8 V CE=-20V O T J=25 C 60 20 -1.0 -2.0 -20 -30 REVERSE VOLTAGE (VOLTS) V,VOLTAGE (VOLTS) 50k R QVC for V CE(sat) -0.5 -1.0 -1.5 -2.0 R QVB for V BE -2.5 -0.1 -0.2 -0.5 -1.0 -2.0 -5.0 -10 -20 -50 -100 -200 -500 I C,COLLECTOR CUTTENT (mA) Fig.10-Temperature Coefficients PAGE . 4 MMBT2907A MOUNTING PAD LAYOUT Unit：inch(mm) 0.035 MIN. (0.90) MIN. SOT-23 0.078 (2.00) 0.037 (0.95) 0.043 (1.10) 0.031 MIN. (0.80) MIN. 0.043 (1.10) 0.106 (2.70) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7” plastic Reel STAD-JUN.29.2005 PAGE . 5 MMBT2907A Part No_packing code_Version 00%7$_R1_00001 MMBT2907A_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Packing size code means 13" Packing type means T/R Part No. Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING STAD-JUN.29.2005 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 6 MMBT2907A Disclaimer z Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. z Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. z Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. z Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. z Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. z The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. STAD-JUN.29.2005 PAGE . 7
