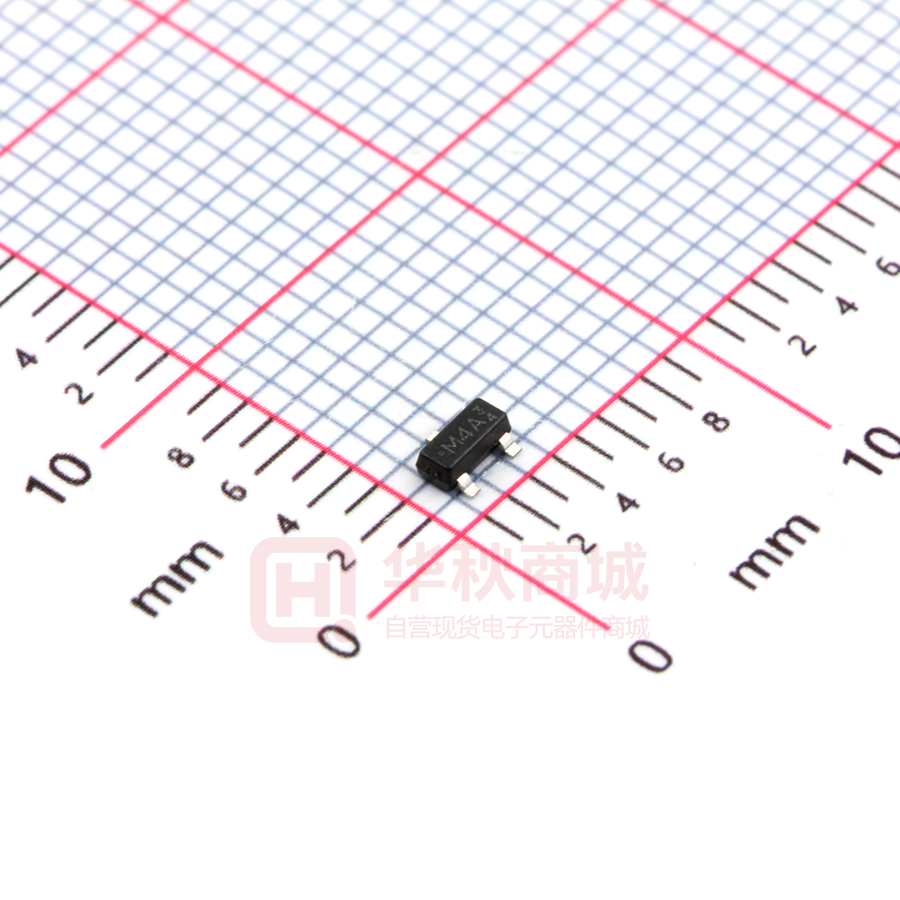

MMBT4401_R1_00001

MMBT4401 NPN GENERAL PURPOSE SWITCHING TRANSISTOR VOLTAGE POWER 40 Volt 225 mWatt 0.006(0.15)MIN. FEATURES 0.120(3.04) • NPN epitaxial silicon, planar design 0.110(2.80) • Collector-emitter voltage VCE = 40V • Collector current IC = 600mA • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.056(1.40) 0.047(1.20) 0.008(0.20) 0.079(2.00) 0.003(0.08) 0.070(1.80) MECHANICAL DATA 0.044(1.10) 0.004(0.10) 0.000(0.00) • Case: SOT-23, Plastic 0.035(0.90) 0.020(0.50) • Terminals: Solderable per MIL-STD-750, Method 2026 0.013(0.35) • Approx. Weight: 0.0003 ounce, 0.084 gram ABSOLUTE RATINGS PARAMETER Symbol Value Units Collector - Emitter Voltage VCEO 40 V Collector - Base Voltage VCBO 60 V Emitter - Base Voltage VEBO 6 V 600 mA Symbol Value Units Max. Power Dissipation (Note 1) PTOT 225 mW Thermal Resistance , Junction to Ambient RθJA 556 Junction Temperature Range TJ -55 to 150 O C Storage Temperature Range TSTG -55 to 150 O C Collector Current - Continuous I C THERMAL CHARACTERISTICS PARAMETER O C/W Note 1: Transistor mounted on FR-5 board 1.0 x 0.75 x 0.062 in. January 29,2016-REV.03 PAGE . 1 MMBT4401 ELECTRICAL CHARACTERISTICS PA RA M E TE R S ym b o l Te s t C o n d i t i o n M IN . T YP. MA X . U ni t s C o lle c to r - E mi tte r B re a k d o wn Vo lta g e V (B R) C E O IC = 1 . 0 m A , IB = 0 40 - - V C o lle c to r - B a s e B re a k d o wn Vo lta g e V (B R) C B O IC = 1 0 0 u A , IE = 0 60 - - V E mi tte r - B a s e B re a k d o wn Vo lta g e V (B R) E B O IE = 1 0 0 u A , IC = 0 6 .0 - - V IB L V C E =3 5 V, V E B =0 .4 V - - 100 nA IC E X V C E =3 5 V, V E B =0 .4 V - - 100 nA hF E IC = 0 . 1 m A , V C E = 1 . 0 V IC = 1 . 0 m A , V C E = 1 . 0 V IC = 1 0 m A , V C E = 1 . 0 V IC = 1 5 0 m A , V C E = 1 . 0 V IC = 5 0 0 m A , V C E = 2 . 0 V 20 40 80 100 40 - 300 - - C o l l e c t o r - E m i t t e r S a t ur a t i o n Vo l t a g e (No te 2 ) V C E (S AT) IC = 1 5 0 m A , IB = 1 5 m A IC = 5 0 0 m A , IB = 5 0 m A - - 0 .4 0 0 .7 5 V B a s e - E m i t t e r S a t ur a t i o n Vo l t a g e (No te 2 ) V B E (S AT) IC = 1 5 0 m A , IB = 1 5 m A IC = 5 0 0 m A , IB = 5 0 m A 0 .7 5 - - 0 .9 5 1 .2 0 V B a s e C ut o f f C ur r e nt C o l l e c t o r C ut o f f C ur r e nt D C C ur r e nt G a i n ( N o t e 2 ) C o l l e c t o r - B a s e C a p a c i t a nc e C CBO V C B = 5 V , IE = 0 , f = 1 M H z - - 6 .5 pF E m i t t e r - B a s e C a p a c i t a nc e C EBO V C B = 0 . 5 V , IC = 0 , f = 1 M H z - - 30 pF 250 - - MHz C ur r e nt G a i n - B a nd w i d t h P r o d uc t FT V C E = 1 0 V , IC = 2 0 m A , f = 1 0 0 M H z D e l a y Ti m e td V C C =3 0 V,V B E =2 .0 V, IC = 1 5 0 m A , IB 1 = 1 5 m A - - 15 ns R i s e Ti m e tr V C C =3 0 V,V B E =2 .0 V, IC = 1 5 0 m A , IB 1 = 1 5 m A - - 20 ns S t o r a g e Ti m e ts V C C = 3 0 V , IC = 1 5 0 m A IB 1 = IB 2 = 1 5 m A - - 225 ns F a l l Ti m e tf V C C = 3 0 V , IC = 1 5 0 m A IB 1 = IB 2 = 1 5 m A - - 30 ns January 29,2016-REV.03 PAGE . 2 1.1 1 1 0.9 TJ = 25°C 0.9 VBE(on), Base−Emitter Voltage (V) VBE(sat), Base−Emitter Saturation Voltage (V) MMBT4401 TJ = 75°C 0.8 0.7 0.6 TJ = 125°C 0.5 0.4 IC/IB = 10 0.3 VCE = 5V 0.8 TJ = 25°C 0.7 0.6 0.5 0.4 TJ = 125°C 0.3 0.2 1 10 100 1000 0.1 IC, Collector Current (mA) 1 10 100 IC, Collector Current (mA) Fig.1 Base Emitter Saturation Voltage vs. Collector Current Fig.2 Base Emitter Voltage vs. Collector Current 1000 0.45 0.4 VCE = 1 V IC/IB = 10 0.35 TJ = 125°C 0.3 0.25 0.2 0.15 0.1 TJ = 75°C 0.05 TJ = 25°C 0 1 10 100 hFE, DC Current Gain VCE(sat), Collector−Emitter Saturation Voltage (V) TJ = 75°C 100 TJ = 125°C TJ = 25°C TJ = 75°C 10 1 1000 IC, Collector Current (mA) 0.1 1 10 100 1000 IC, Collector Current (mA) Fig.3 Collector Emitter Saturation Voltage vs. Collector Current Fig.4 DC Current Gain vs. Collector Current 100 C, Capacitance (pF) TA= 25°C Cib (BE) 10 1 Cob(CB) 0.1 0.1 1 10 100 VR, Reverse Voltage (V) Fig.5 Typical Capacitance January 29,2016-REV.03 PAGE . 3 MMBT4401 PART NO PACKING CODE VERSION Part No Packing Code Package Type Packing Type Marking Version MMBT4401_R1_00001 SOT-23 3K pcs / 7" reel M4A Halogen free MMBT4401_R2_00001 SOT-23 12K pcs / 13" reel M4A Halogen free For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING January 29,2016-REV.03 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 MMBT4401 0.035 MIN. (0.90) MIN. MOUNTING PAD LAYOUT 0.078 (2.00) 0.037 (0.95) 0.043 (1.10) 0.031 MIN. (0.80) MIN. 0.043 (1.10) 0.106 (2.70) January 29,2016-REV.03 PAGE . 5 MMBT4401 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. January 29,2016-REV.03 PAGE . 6
