MMBT5401_R1_00001

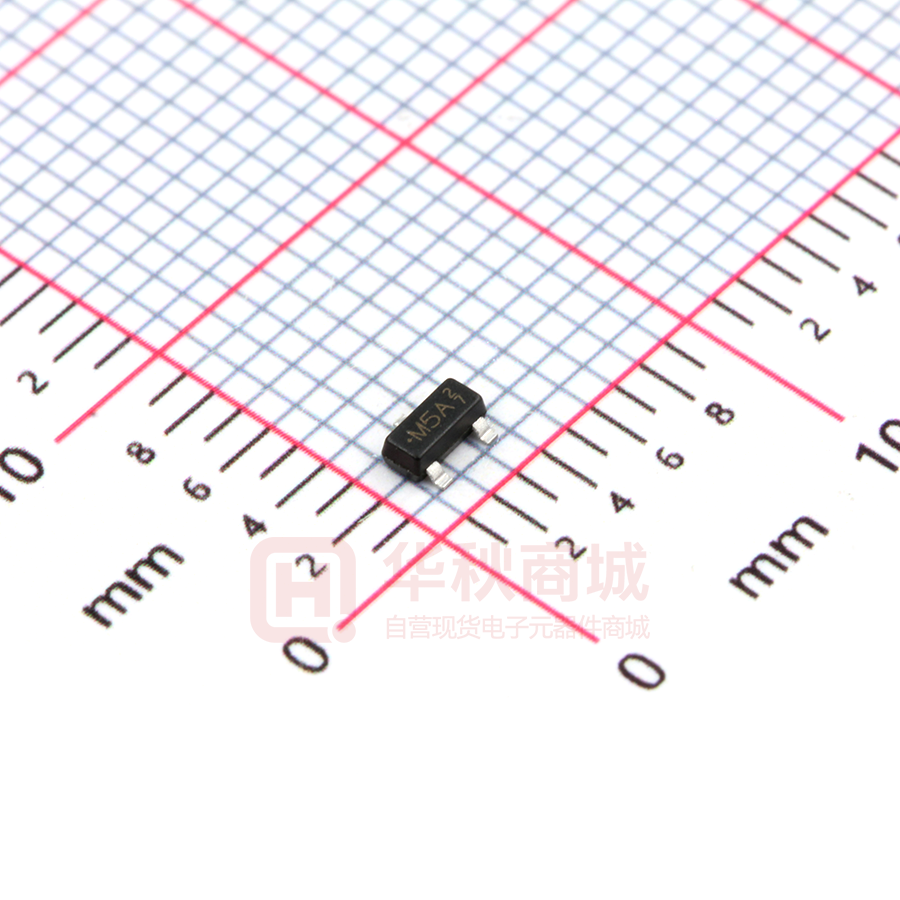

MMBT5401 HIGH VOLTAGE TRANSISTOR PNP Silicon FEATURES • Green molding compound as per IEC 61249 standard 0.006(0.15)MIN. • Lead free in compliance with EU RoHS 2.0 0.120(3.04) 0.110(2.80) MECHANICAL DATA 0.056(1.40) • Case : SOT-23 plastic case. • Terminals : Solderable per MIL-STD-750,Method 2026 • Standard packaging : 8mm tape • Approx. Weight : 0.0003 ounces, 0.008 grams • Marking : M5A 0.047(1.20) 0.008(0.20) 0.079(2.00) 0.003(0.08) 0.070(1.80) 0.044(1.10) 0.004(0.10) 0.000(0.00) 0.035(0.90) 0.020(0.50) 0.013(0.35) MAXIMUM RATINGS RATING SYMBOL VALUE UNITS Collector-Emitter Voltage VCEO -150 V dc Collector-Base Voltage VCBO -160 V dc Emitter-Base Voltage VEBO -5.0 V dc IC -600 mAdc Collector Current-Continuous Maximum ratings are those values beyound which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously.If these limits are exceeded, device functional operational is not implied, damage may occur and reliability may be affected. PNP Fig.35 June 5,2018-REV.03 PAGE . 1 MMBT5401 THERMAL CHARACTERISTICS CHARACTERISTIC Total Device Dissipation FR-4 Board (Note 1) TA=25oC Derate Above 25oC SYMBOL MAX UNITS 225 mW 1.8 mW/oC PD Thermal Resistance, Junction-to-Ambient 556 RΘJA Total Device Dissipation Alumina Substrate (Note 2) TA=25oC Derate Above 25oC o C/W 300 mW 2.4 mW/oC PD Thermal Resistance Junction-to-Ambient Junction and Storage Temperature RΘJA 417 TJ,TSTG -55 to +150 o C/W o C 1.FR-4 = 70 X 60 X 1mm 2.Alumina = 0.4 X 0.3 X 0.024 in 99.5% alumina ELECTRICAL CHARACTERISTICS (TA=25OC unless otherwise noted) CHARACTERISTIC SYMBOL MIN MAX UNITS Collector-Emitter Breakdown Voltage (I C=-1.0mAdc,I B=0) V(BR)CEO -150 - V dc Collector-Base Breakdown Voltage (I C=-100μAdc,I E=0) V(BR)CBO -160 - V dc Emitter-Base Breakdown Voltage (I E=-10μAdc,I C=0) V(BR)EBO -5.0 - V dc Collector Cutoff Current (VCB=-120Vdc, I E=0) (VCB=-120Vdc, I E=0, TA=100oC) I CBO - - -50 -50 nAdc μAdc 50 60 50 240 - - -0.2 -0.5 VBE(SAT) - -1.0 -1.0 V dc fT 100 300 MHz COBO - 6.0 pF Small Signal Current Gain (I C=-1.0mAdc, VCE=-10Vdc, f=1.0kHz) hFE 40 200 - Noise Figure (I C=-200μAdc, VCE=-5.0Vdc, Rs=10Ω, f=1.0kHz) NF - 8.0 dB OFF CHARACTERISTICS ON CHARACTERISTICS DC Current Gain (I C=-1.0mAdc, VCE=-5.0Vdc) (I C=-10mAdc, VCE=-5.0Vdc) (I C=-50mAdc, VCE=-5.0Vdc) Collector-Emitter Saturation Voltage (I C=-10mAdc, I B=-1.0mAdc) (I C=-50mAdc, I B=-5.0mAdc) Base-Emitter Saturation Voltage (I C=-10mAdc, I B=-1.0mAdc) (I C=-50mAdc, I B=-5.0mAdc) hFE VCE(SAT) - V dc SMALL-SIGNAL CHARACTERISTICS Current-Gain-Bandwidth Product (I C=-10mAdc, VCE=-10Vdc, f=100MHz) Output Capacitance (VCB=-10Vdc, I E=0, f=1.0MHz) June 5,2018-REV.03 PAGE . 2 MMBT5401 June 5,2018-REV.03 PAGE . 3 MMBT5401 June 5,2018-REV.03 PAGE . 4 MMBT5401 MOUNTING PAD LAYOUT SOT-23 0.035 MIN. (0.90) MIN. Unit：inch(mm) 0.078 (2.00) 0.037 (0.95) 0.043 (1.10) 0.031 MIN. (0.80) MIN. 0.043 (1.10) 0.106 (2.70) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7" plastic Reel June 5,2018-REV.03 PAGE . 5 MMBT5401 Part No_packing code_Version MMBT5401_R1_00001 MMBT5401_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Part No. Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING June 5,2018-REV.03 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 6 MMBT5401 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. June 5,2018-REV.03 PAGE . 7
