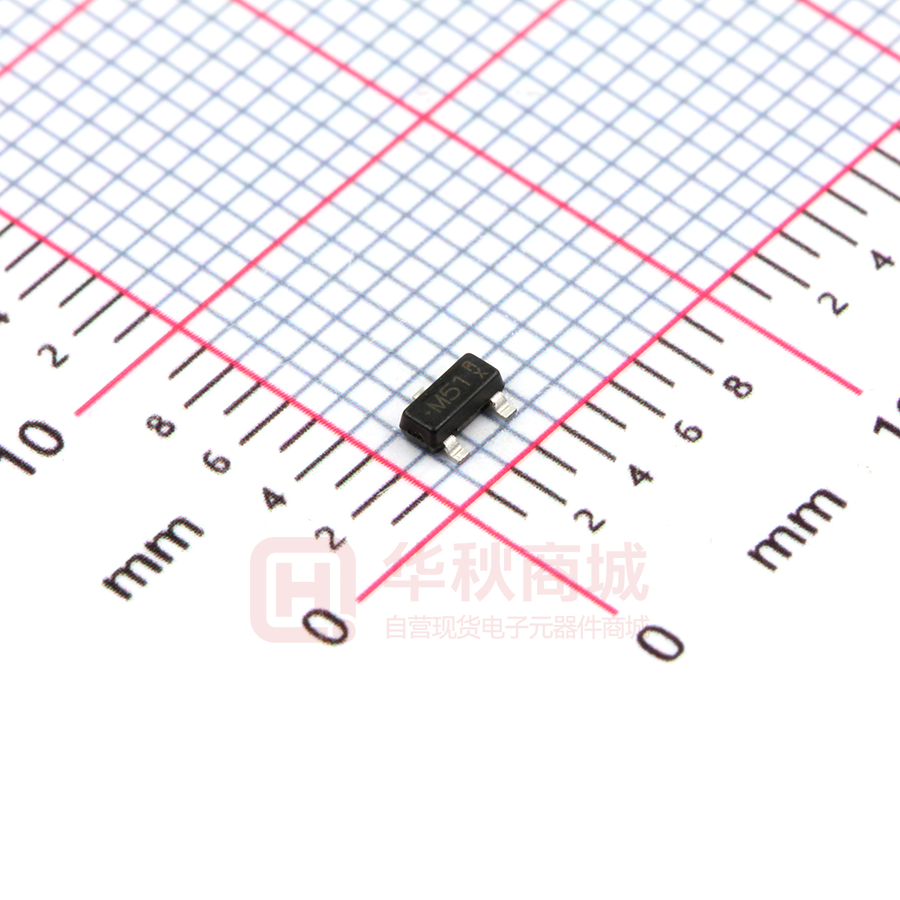

MMBT5551 NPN HIGH VOLTAGE TRANSISTOR POWER 160 Volts 250 mWatts FEATURES 0.006(0.15)MIN. VOLTAGE 0.120(3.04) 0.110(2.80) • NPN Silicon, planar design • Collector-emitter voltage V CE = 160V • Collector current I C = 600mA • Lead free in compliance with EU RoHS 2.0 0.056(1.40) • Green molding compound as per IEC 61249 standard 0.047(1.20) 0.008(0.20) 0.079(2.00) MECHANICAL DATA 0.003(0.08) 0.070(1.80) • Case: SOT-23, Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.0003 ounces, 0.0084 grams 0.004(0.10) 0.044(1.10) 0.000(0.00) 0.035(0.90) • Marking: M51 0.020(0.50) 0.013(0.35) C B E o ABSOLUTE MAXIMUM RATINGS (TA=25 C unless otherwise noted) PAR AM E T E R S YM B O L VA L U E U N IT S C o lle c to r - E m i tte r Vo lta g e V CEO 160 V C o lle c to r - B a s e Vo lta g e V CBO 180 V E mi tte r - B a s e Vo lta g e V E BO 6 V C o lle c to r C ur r e nt C o nti nuo us I C 600 mA o THERMAL CHARACTERISTICS (TA=25 C unless otherwise noted) PAR AME T E R Ma x P o we r D i s s i p a ti o n ( No te 1 ) The rm a l Re s i s ta nc e ,J unc ti o n to A m b i e nt ( No te 1 ) Op e r a ti ng J unc ti o n Te mp e r a tur e a nd S to r a g e Te m p e ra tur e Ra ng e S YM B O L VAL U E U N IT S PD 250 mW R J A 325 T J ,T S TG - 5 5 to + 1 5 0 O C /W O C NOTES: 1.Mounted on FR-4 PCB, single sided copper, mini pad. June 4,2018-REV.01 PAGE . 1 MMBT5551 o ELECTRICAL CHARACTERISTICS (TA=25 C unless otherwise noted) PAR AME T ER S YMB OL T E ST C ON D IT ION MIN . T YP. MAX . U N IT S C o lle c to r - E mi tte r B re a k d o wn Vo lta g e V (B R)C E O I C =1 m A,IB = 0 A 160 - - V C o lle c to r - B a s e Br e a k d o wn Vo lta g e V (B R)C B O I C =1 0 0 uA ,I E =0 A 180 - - V E mi tte r - Ba se B re a kd o wn Vo lta g e V (B R )E B O I E =1 0 uA ,I C =0 A 6 - - V C o lle c to r - B a s e C ut-o ff C urr e nt I CBO V C B =1 2 0 V,I E =0 A - - 50 nA E mi tte r - Ba se C ut- o ff C urre nt I E BO V E B =4 V,IC =0 A - - 50 nA hF E V C E =5 V,IC =1 mA V C E =5 V,IC =1 0 m A V C E =5 V,IC =5 0 m A 80 80 30 - 250 - - C o lle c to r - E mi tte r S a tura ti o n Vo lta g e V C E (S AT) I C =1 0 mA,IB =1 mA I C =5 0 mA,IB =5 mA - - 150 200 mV B a s e - Em i tte r S a tr ua ti o n Vo lta g e V B E (S AT) I C =1 0 mA,IB =1 mA I C =5 0 mA,IB =5 mA - - 1 1 V D C C urre nt Ga i n C o lle c to r -Ba se C a p a c i ta nc e C CBO V C B =1 0 V,I E =0 A ,f=1 M Hz - - 6 pF E mi tte r-B a se C a p a ci ta nce C E BO V E B =5 0 0 mV,IC =0 A,f=1 MHz - - 30 pF 100 - 300 MHz Tr a ns i ti o n fre q ue ncy June 4,2018-REV.01 FT I C =1 0 mA,V C E =1 0 V , f=1 0 0 MH Z PAGE . 2 MMBT5551 RATING AND CHARACTERISTIC CURVES 1 TJ = 75°C TJ = 25°C 0.8 VCE ( SAT ) (V) VBE ( SAT ) (V) 0.9 0.7 0.6 IC/IB = 10 0.5 TJ = 125°C 0.4 TJ = 150°C 0.3 0.1 1 10 0.15 0.14 0.13 0.12 0.11 0.1 0.09 0.08 0.07 0.06 0.05 0.04 IC/IB = 10 TJ = 150°C TJ = 125°C TJ = 75°C TJ = 25°C 1 100 10 100 IC, Collector Current (mA) IC, Collector Current (mA) Fig.1 Base-Emitter Saturation Voltage Fig.2 Collector-Emitter Saturation Voltage 1000 1 VCE = 5V TJ = 125°C VCE = 5V 0.9 TJ = 25°C 0.8 TJ = 150°C TJ = 75°C 0.7 VBE(ON) hFE 0.6 100 TJ = 25°C TJ = 75°C 0.5 0.4 0.3 TJ = 150°C TJ = 125°C 0.2 0.1 10 0 0.1 1 10 100 IC, Collector Current (mA) 0.1 1 10 100 IC, Collector Current (mA) Fig.3 Typical DC Current Gain Fig.4 Base-Emitter Voltage vs. Collector Current 100 TA= 25°C CCB, CBE(pF) CBE 10 CCB 1 0.1 0.1 1 10 100 VCB, VEB (V) Fig.5 Typical Capacitance June 4,2018-REV.01 PAGE . 3 MMBT5551 MOUNTING PAD LAYOUT SOT-23 0.035 MIN. (0.90) MIN. Unit：inch(mm) 0.078 (2.00) 0.037 (0.95) 0.043 (1.10) 0.031 MIN. (0.80) MIN. 0.043 (1.10) 0.106 (2.70) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7” plastic Reel June 4,2018-REV.01 PAGE . 4 MMBT5551 Part No_packing code_Version MMBT5551_R1_00001 MMBT5551_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Packing size code means 13" Packing type means T/R Part No. Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING June 4,2018-REV.01 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 MMBT5551 Disclaimer z Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. z Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. z Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. z Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. z Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. z The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. z Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. June 4,2018-REV.01 PAGE . 6
