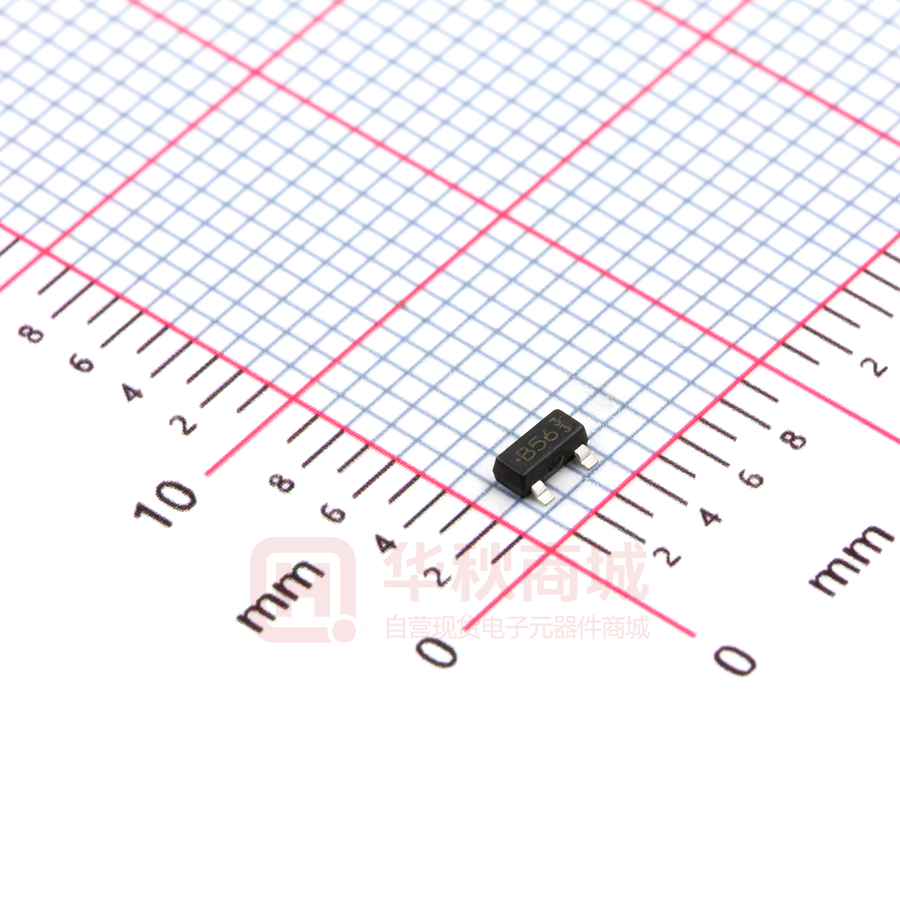

MMBTA56_R1_00001

PMMBTA05 / MMBTA06 / MMBTA55 / MMBTA56 NPN AND PNP HIGH VOLTAGE TRANSISTOR 60~80V Voltage Power 225mW SOT-23 Unit: inch(mm) Features  NPN and PNP silicon, planar design  Collector current IC = 500mA  Lead free in compliance with EU RoHS2.0 (2011/65/EU & 2015/865/EU directive)  Green molding compound as per IEC61249 Std.. (Halogen Free) Mechanical Data  Case: SOT-23 Package  Terminals: Solderable per MIL-STD-750, Method 2026  Approx. Weight: 0.0003 ounces, 0.0084 grams o Maximum Ratings and Thermal Characteristics (TA=25 C unless otherwise noted) PARAMETER SYMBOL Marking MMBTA05 MMBTA55 MMBTA06 MMBTA56 B05 B55 B06 B56 UNITS Collector-Emitter Voltage VCEO 60 80 V Collector-Base Voltage VCEO 60 80 V Emitter-Base Voltage VEBO 4 V IC 500 mA Collector Current-Continuous Circuit Figure NPN PNP NPN PNP o Maximum Ratings and Thermal Characteristics (TA=25 C unless otherwise noted) CHARACTERISTIC SYMBOL o Total device dissipation FR-4 board (Note 1) TA=25 C PD o derate above 25 C Typical thermal resistance RθJA o Total device dissipation alumina substrate (Note 2) T A=25 C o derate above 25 C Typical thermal resistance Operating junction and storage temperature range PD MAX. UNITS 225 mW 1.8 mW/ C 556 o o C/W 300 mW 2.4 mW/ C RθJA 417 TJ, TSTG -55 to 150 o o C/W o C Note : 1. FR-4=70 x 60 x 1mm. 2. Alumina=0.4 x 0.3 x 0.024 in. 99.5 alumina. May 18,2018-REV.04 Page 1 PMMBTA05 / MMBTA06 / MMBTA55 / MMBTA56 o Electrical Characteristics (TA=25 C unless otherwise noted) PARAMETER SYMBOL MIN. MAX. UNITS V(BR)CEO 60 - V 80 - V(BR)EBO 4 - V ICES - 0.1 A ICBO - 0.1 A - 0.1 100 - 100 - - 0.25 V - 1.2 V 100 - MHz OFF Characteristics Collector-Emitter Breakdown Voltage (IC=1.0mA, IB=0) MMBTA05, MMBTA55 MMBAT06, MMBTA56 Emitter-Base Breakdown Voltage (IE=100A, IC=0) Collector Cutoff Current (VCE=60V, IB=0) Collector Cutoff Current (VCB=60V, IE=0) MMBTA05, MMBTA55 (VCB=80V, IE=0) MMBAT06, MMBTA56 ON characteristics DC Current Gain (IC=10mA, VCE=1V) fFE (IC=100mA, VCE=1V) Collector-Emitter Saturation Voltage (IC=100mA, IB=10mA) Base-Emitter On Voltage (IC=100mA, VCE=1V) VCE(SAT) VBE(ON) - Small-signal characteristics Current-Gain-Bandwidth Product (IC=10mA, VCE=2V, f=100MHz) May 18,2018-REV.04 fT Page 2 PMMBTA05 / MMBTA06 / MMBTA55 / MMBTA56 Fig.1 Current-Gain─Bandwidth Product Fig.2 Capacitance Fig.3 Switching Time Fig.4 DC Current Gain Fig.5 ON Voltages Fig.6 Collector Saturation Region May 18,2018-REV.04 Page 3 PMMBTA05 / MMBTA06 / MMBTA55 / MMBTA56 Fig.7 Base-Emitter Temperature Coefficient May 18,2018-REV.04 Page 4 PMMBTA05 / MMBTA06 / MMBTA55 / MMBTA56 Part No Packing Code Version . Part No Packing Code Package Type Packing Type Marking Version MMBTA05_R1_00001 SOT-23 3K / 7" Reel B05 Halogen Free MMBTA05_R2_00001 SOT-23 12K / 13" Reel B05 Halogen Free Mounting Pad Layout May 18,2018-REV.04 Page 5 PMMBTA05 / MMBTA06 / MMBTA55 / MMBTA56 Disclaimer ● Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. ● Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. ● Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. ● Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. ● Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. ● The products shown herein are not designed and authorized for equipments relating to human life and for any applications concerning lifesaving or life-sustaining, such as medical instruments, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. ● Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. May 18,2018-REV.04 Page 6
