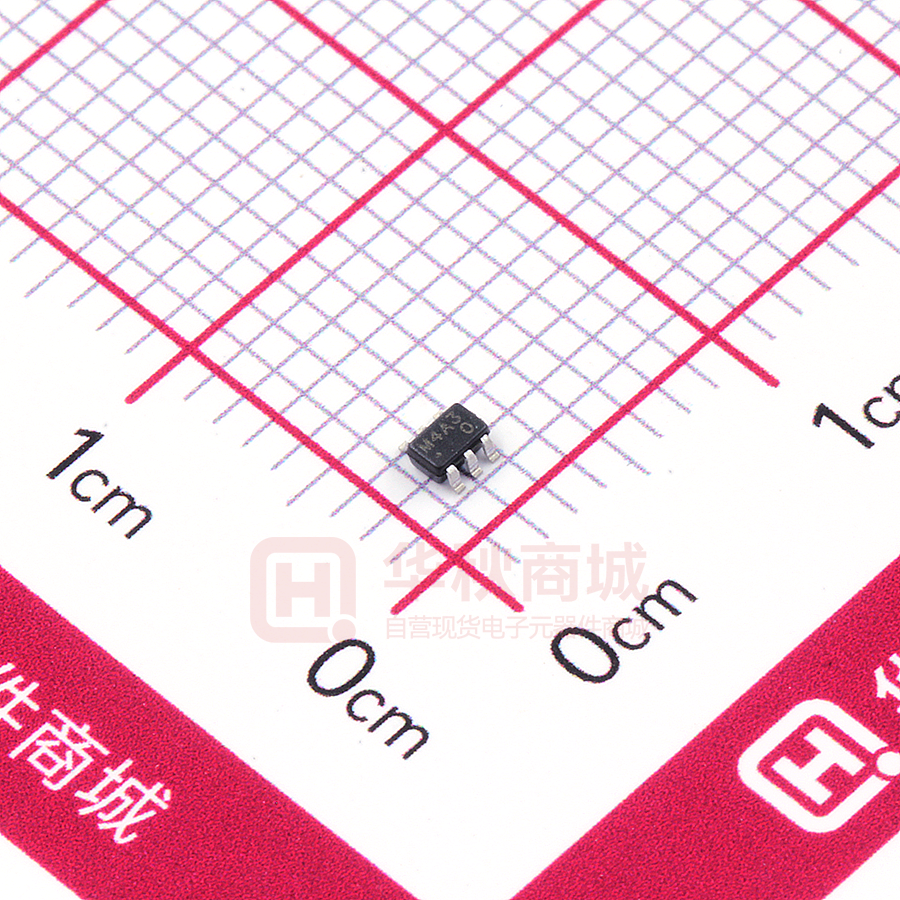

MMDT4401 DUAL NPN GENERAL PURPOSE SWITCHING TRANSISTOR VOLTAGE POWER 40 Volt 225 mWatt FEATURES • NPN epitaxial silicon, planar design • Collector-emitter voltage V CE =40V • Collector current I C = 600mA • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA • Case: SOT-363, Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.0002 ounces, 0.006 grams • Marking: M4A o ABSOLUTE RATINGS (TA=25 C unless otherwise noted) PARAMETER Symbol Value Units Collector - Emitter Voltage VCEO 40 V Collector - Base Voltage VCBO 60 V Emitter - Base Voltage VEBO 6.0 V IC 600 mA Symbol Value Units Max Power Dissipation (Note1) PTOT 225 mW Thermal Resistance, Junction to Ambient RΘJA 625 Junction Temperature TJ -55 to 150 o C Storage Temperature TSTG -55 to 150 o C Collector Current - Continuous o THERMAL CHARACTERISTICS (TA=25 C unless otherwise noted) PARAMETER o C/W Note 1: Transistor mounted on FR-4 board 1.0X0.85X0.062 in. May 26,2016-REV.02 PAGE . 1 MMDT4401 o ELECTRICAL CHARACTERISTICS (TA=25 C unless otherwise noted) PA RA ME TE R S ymb o l Te s t C o nd i ti o n MIN. TYP. MA X . Uni ts C o llec to r - E mi tte r B re a kd o wn Vo lta g e V (B R) C E O IC =1 .0 mA , IB =0 40 - - V C o llec to r - B a se B re a k d o wn Vo lta g e V (B R) C B O IC =1 0 0 uA , IE =0 60 - - V E mi tte r - B a s e B re a kd o wn Vo ltag e V (B R) E B O IE =1 0 0 uA , IC =0 6 .0 - - V B a se C uto ff C urre nt IB L V C E =3 5 V, V E B =0 .4 V - - 100 nA C o llec to r C uto ff C urre nt IC E X V C E =3 5 V, V E B =0 .4 V - - 100 nA hF E IC =0 .1 mA , V C E =1 .0 V IC =1 .0 mA , V C E =1 .0 V IC =1 0 mA , V C E =1 .0 V IC =1 5 0 mA , V C E =1 .0 V IC =5 0 0 mA , V C E =2 .0 V 20 40 80 100 40 - 300 - - C o llec to r - E mi tte r S a tura ti o n Vo lta g e (No te 2 ) V C E (S AT) IC =1 5 0 mA , IB =1 5m A IC =5 0 0 mA , IB =5 0 mA - - 0 .4 0 0 .7 5 V B a se - E mi tte r S a tura ti o n Vo lta g e (No te 2 ) V B E (S AT) IC =1 5 0 mA , IB =1 5m A IC =5 0 0 mA , IB =5 0 mA 0 .7 5 - - 0 .9 5 1 .2 0 V D C C urre nt Ga i n (No te 2 ) C o llec to r - B a se C a p a ci ta nce C CBO V C B =5 V, IE =0 , f=1 MHz - - 6 .5 pF E mi tte r - B a s e C a p a c i ta nc e C EBO V C B =0 .5 V, IC =0 , f=1 MHz - - 30 pF 250 - - MHz C urre nt Ga i n - B a nd wi d th P ro d uc t FT V C E =1 0 V, IC =2 0 mA , f=1 0 0 MHz D e la y Ti me td V C C =3 0 V,V B E =2 .0 V, IC =1 5 0 mA ,IB 1 =1 5 mA - - 15 ns Ri s e Ti me tr V C C =3 0 V,V B E =2 .0 V, IC =1 5 0 mA ,IB 1 =1 5 mA - - 20 ns S to ra g e Ti me ts V C C =3 0 V,IC =1 5 0 mA IB 1 =IB 2 =1 5 mA - - 225 ns F a ll Ti me tf V C C =3 0 V,IC =1 5 0 mA IB 1 =IB 2 =1 5 mA - - 30 ns May 26,2016-REV.02 PAGE . 2 MMDT4401 MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 10K per 13" plastic Reel T/R - 3K per 7" plastic Reel May 26,2016-REV.02 PAGE . 3 MMDT4401 Part No_packing code_Version MMDT4401_R1_00001 MMDT4401_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Part No. Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING May 26,2016-REV.02 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 MMDT4401 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. May 26,2016-REV.02 PAGE . 5
