P6SMBJ36CA_R1_00001

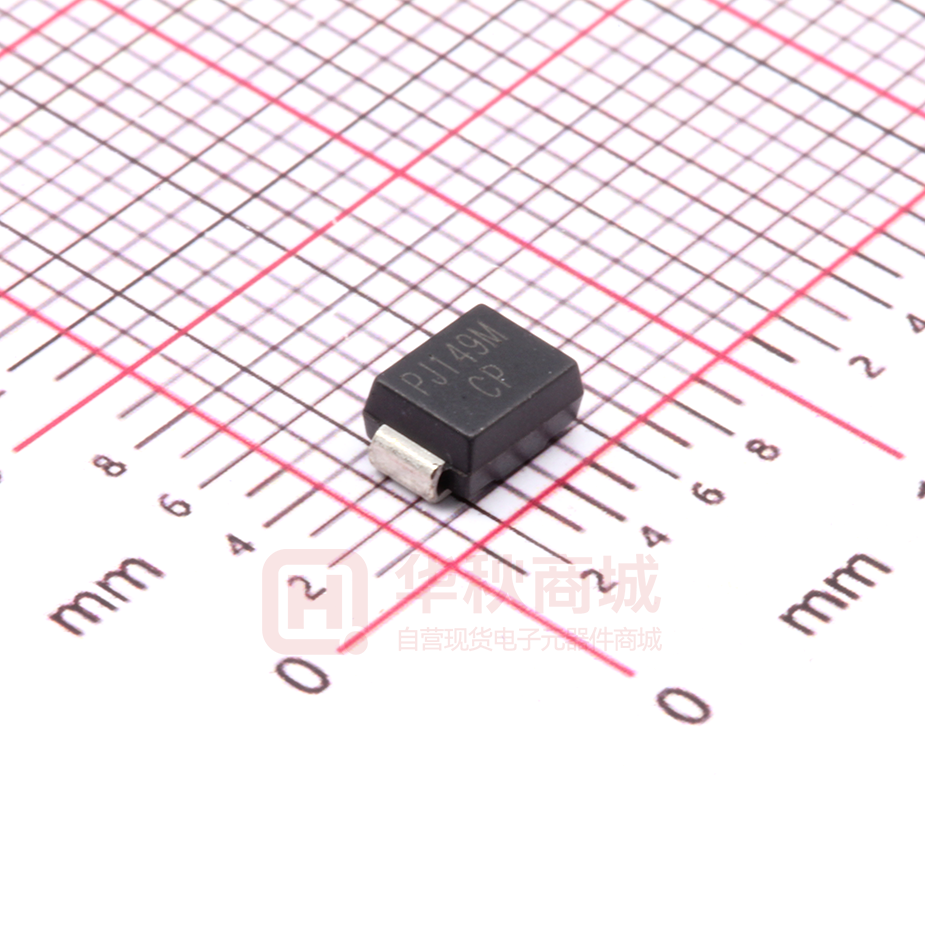

P6SMBJ SERIES SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR POWER 600 Watt 5 to 220 Volt STAND-OFF VOLTAGE Recongnized File # E210467 FEATURES • For surface mounted applications in order to optimize board space • Glass passivated junction • Low inductance • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • High temperature soldering : 260°C /10 seconds at terminals • ESD IEC-61000-4-2 Air + 30kV, Contact + 30kV • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard MECHANICAL DATA • Case: JEDEC DO-214AA,Molded plastic over passivated junction. • Terminals: Solder plated,solderable per MIL-STD-750,Method 2026 • Polarity: Color band denotes cathode end • Standard Packaging: 12mm tape (EIA-481) • Weight: 0.003 ounces, 0.092 grams DEVICES FOR BIPOLAR APPLICATIONS For Bidirectional use C or CA Suffix for types P6SMBJ5.0 thru types P6SMBJ220. Electrical characteristics apply in both directions. MAXIMUM RATINGS AND CHARACTERISTICS Rating at 25°Cambient temperature unless otherwise specified. Resistive or inductive load, 60Hz. For Capacitive load derate current by 20%. Rating Symbol Value Units Peak Pulse Power Dissipation on tp=10/1000μs waveform (Notes 1,2, Fig.1) PPP 600 Watts Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (Notes 2,3) IFSM 100 Amps Peak Pulse Current on tp=10/1000μs waveform (Notes 1) Fig.3 IPPM see Table 1 Amps Typical Thermal Resistance Junction to Air (Notes 2) RθJA 60 ESD IEC-61000-4-2 (Air) ESD IEC-61000-4-2 (Contact) VESD +30 +30 TJ,TSTG -55 to +150 Operating Junction and Storage Temperature Range O C/ W kV O C NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above TA = 25OC per Fig. 2. 2. Mounted on 5mm2 (0.13mm thick) land areas. 3. Measured on 8.3ms, single half sine-wave or equivalent s quare wave, duty cycle = 4 pulses per minute maximum. 4. A transient suppressor is selected according to the working peak reverse voltage (VRWM ), which should be equal to or greater than the DC or continuous peak operating voltage level. July 25,2018-REV.14 PAGE . 1 P6SMBJ SERIES Reverse Stand-off Voltage Part Number V RWM (Notes 4) UNI BI Breakdown Voltage VBR @ I T Test Current Max. Clamp Reverse Leakage IR @ V RWM IT Voltage Peak Pulse Current 10/1000μs 10/1000μs V C @ IPP IPP Marking Code Mi n. M a x. UNI BI V V V mA μA μA V A UNI BI 600W Transient Voltage Suppressor P6SMBJ5.0 P6SMBJ5.0C 5 6.4 7.55 10 800 1600 9.6 62.5 KD AD P6SMBJ5.0A P6SMBJ5.0CA 5 6.4 7.07 10 800 1600 9.2 65.2 KE AE P6SMBJ6.0 P6SMBJ6.0C 6 6.67 8.45 10 800 1600 11.4 52.6 KF AF P6SMBJ6.0A P6SMBJ6.0CA 6 6.67 7.37 10 800 1600 10.3 58.3 KG AG P6SMBJ6.5 P6SMBJ6.5C 6.5 7.22 9.14 10 500 1000 12.3 48.7 KH AH P6SMBJ6.5A P6SMBJ6.5CA 6.5 7.22 7.98 10 500 1000 11.2 53.6 KK AK P6SMBJ7.0 P6SMBJ7.0C 7 7.78 9.86 10 200 400 13.3 45.1 KL AL P6SMBJ7.0A P6SMBJ7.0CA 7 7.78 8.6 10 200 400 12.0 50 KM AM P6SMBJ7.5 P6SMBJ7.5C 7.5 8.33 10.67 1 100 200 14.3 42 KN AN P6SMBJ7.5A P6SMBJ7.5CA 7.5 8.33 9.21 1 100 200 12.9 46.5 KP AP P6SMBJ8.0 P6SMBJ8.0C 8 8.89 11.3 1 50 100 15.0 40 KQ AQ P6SMBJ8.0A P6SMBJ8.0CA 8 8.89 9.83 1 50 100 13.6 44.1 KR AR P6SMBJ8.5 P6SMBJ8.5C 8.5 9.44 11.92 1 10 20 15.9 37.7 KS AS P6SMBJ8.5A P6SMBJ8.5CA 8.5 9.44 10.4 1 10 20 14.4 41.7 KT AT P6SMBJ9.0 P6SMBJ9.0C 9 10 12.6 1 5 5 16.9 35.5 KU AU P6SMBJ9.0A P6SMBJ9.0CA 9 10 11.1 1 5 5 15.4 39 KV AV P6SMBJ10 P6SMBJ10C 10 11.1 14.1 1 5 5 18.8 31.9 KW AW P6SMBJ10A P6SMBJ10CA 10 11.1 12.3 1 5 5 17 35.3 KX AX P6SMBJ11 P6SMBJ11C 11 12.2 15.4 1 1 1 20.1 29.9 KY AY P6SMBJ11A P6SMBJ11CA 11 12.2 13.5 1 1 1 18.2 33 KZ AZ P6SMBJ12 P6SMBJ12C 12 13.3 16.9 1 1 1 22 27.3 LD BD P6SMBJ12A P6SMBJ12CA 12 13.3 14.7 1 1 1 19.9 30.2 LE BE P6SMBJ13 P6SMBJ13C 13 14.4 18.2 1 1 1 23.8 25.2 LF BF P6SMBJ13A P6SMBJ13CA 13 14.4 15.9 1 1 1 21.5 27.9 LG BG P6SMBJ14 P6SMBJ14C 14 15.6 19.8 1 1 1 25.8 23.3 LH BH P6SMBJ14A P6SMBJ14CA 14 15.6 17.2 1 1 1 23.2 25.8 LK BK P6SMBJ15 P6SMBJ15C 15 16.7 21.1 1 1 1 26.9 22.3 LL BL P6SMBJ15A P6SMBJ15CA 15 16.7 18.5 1 1 1 24.4 24 LM BM P6SMBJ16 P6SMBJ16C 16 17.8 22.6 1 1 1 28.8 20.8 LN BN P6SMBJ16A P6SMBJ16CA 16 17.8 19.7 1 1 1 26 23.1 LP BP P6SMBJ17 P6SMBJ17C 17 18.9 23.9 1 1 1 30.5 19.7 LQ BQ P6SMBJ17A P6SMBJ17CA 17 18.9 20.9 1 1 1 27.6 21.7 LR BR P6SMBJ18 P6SMBJ18C 18 20 25.3 1 1 1 32.2 18.6 LS BS P6SMBJ18A P6SMBJ18CA 18 20 22.1 1 1 1 29.2 20.5 LT BT P6SMBJ20 P6SMBJ20C 20 22.2 28.1 1 1 1 35.8 16.7 LU BU P6SMBJ20A P6SMBJ20CA 20 22.2 24.5 1 1 1 32.4 18.5 LV BV P6SMBJ22 P6SMBJ22C 22 24.4 30.9 1 1 1 39.4 15.2 LW BW P6SMBJ22A P6SMBJ22CA 22 24.4 27 1 1 1 35.5 16.9 LX BX P6SMBJ24 P6SMBJ24C 24 26.7 33.8 1 1 1 43 14 LY BY P6SMBJ24A P6SMBJ24CA 24 26.7 29.5 1 1 1 38.9 15.4 LZ BZ P6SMBJ26 P6SMBJ26C 26 28.9 36.6 1 1 1 46.6 12.4 MD CD P6SMBJ26A P6SMBJ26CA 26 28.9 31.9 1 1 1 42.1 14.2 ME CE P6SMBJ28 P6SMBJ28C 28 31.1 39.4 1 1 1 50 12 MF CF P6SMBJ28A P6SMBJ28CA 28 31.1 34.4 1 1 1 45.4 13.2 MG CG P6SMBJ30 P6SMBJ30C 30 33.3 42.2 1 1 1 53.5 11.2 MH CH P6SMBJ30A P6SMBJ30CA 30 33.3 36.8 1 1 1 48.4 12.4 MK CK P6SMBJ33 P6SMBJ33C 33 36.7 46.5 1 1 1 59 10.2 ML CL P6SMBJ33A P6SMBJ33CA 33 36.7 40.6 1 1 1 53.3 11.3 MM CM P6SMBJ36 P6SMBJ36C 36 40 50.7 1 1 1 64.3 9.3 MN CN P6SMBJ36A P6SMBJ36CA 36 40 44.2 1 1 1 58.1 10.3 MP CP P6SMBJ40 P6SMBJ40C 40 44.4 56.3 1 1 1 71.4 8.4 MQ CQ P6SMBJ40A P6SMBJ40CA 40 44.4 49.1 1 1 1 64.5 9.3 MR CR July 25,2018-REV.14 PAGE . 2 P6SMBJ SERIES Reverse Stand-off Voltage Part Number V RWM (Notes 4) UNI BI Breakdown Voltage V BR @ IT Test Current Max. Clamp Reverse Leakage IR @ V RWM IT Voltage Peak Pulse Current 10/1000μs 10/1000μs V C @ IPP IPP Marking Code Mi n. Ma x. UNI BI V V V mA μA μA V A UNI BI CS 600W Transient Voltage Suppressor P6SMBJ43 P6SMBJ43C 43 47.8 60.5 1 1 1 76.7 7.8 MS P6SMBJ43A P6SMBJ43CA 43 47.8 52.8 1 1 1 69.4 8.6 MT CT P6SMBJ45 P6SMBJ45C 45 50 63.3 1 1 1 80.3 7.5 MU CU P6SMBJ45A P6SMBJ45CA 45 50 55.3 1 1 1 72.7 8.3 MV CV P6SMBJ48 P6SMBJ48C 48 53.3 67.5 1 1 1 85.5 7 MW CW P6SMBJ48A P6SMBJ48CA 48 53.3 58.9 1 1 1 77.4 7.7 MX CX P6SMBJ51 P6SMBJ51C 51 56.7 71.8 1 1 1 91.1 6.6 MY CY P6SMBJ51A P6SMBJ51CA 51 56.7 62.7 1 1 1 82.4 7.3 MZ CZ P6SMBJ54 P6SMBJ54C 54 60 76 1 1 1 96.3 6.2 ND DD P6SMBJ54A P6SMBJ54CA 54 60 66.3 1 1 1 87.1 6.9 NE DE P6SMBJ58 P6SMBJ58C 58 64.4 81.6 1 1 1 103 5.8 NF DF P6SMBJ58A P6SMBJ58CA 58 64.4 71.2 1 1 1 93.6 6.4 NG DG P6SMBJ60 P6SMBJ60C 60 66.7 84.5 1 1 1 107 5.6 NH DH P6SMBJ60A P6SMBJ60CA 60 66.7 73.7 1 1 1 96.8 6.2 NK DK P6SMBJ64 P6SMBJ64C 64 71.1 90.1 1 1 1 114 5.3 NL DL P6SMBJ64A P6SMBJ64CA 64 71.1 78.6 1 1 1 103 5.8 NM DM P6SMBJ70 P6SMBJ70C 70 77.8 98.6 1 1 1 125 4.8 NN DN P6SMBJ70A P6SMBJ70CA 70 77.8 86 1 1 1 113 5.3 NP DP P6SMBJ75 P6SMBJ75C 75 83.3 105.7 1 1 1 134 4.5 NQ DQ P6SMBJ75A P6SMBJ75CA 75 83.3 92.1 1 1 1 121 4.9 NR DR P6SMBJ78 P6SMBJ78C 78 86.7 109.8 1 1 1 139 4.3 NS DS P6SMBJ78A P6SMBJ78CA 78 86.7 95.8 1 1 1 126 4.7 NT DT P6SMBJ85 P6SMBJ85C 85 94.4 119.2 1 1 1 151 3.9 NU DU P6SMBJ85A P6SMBJ85CA 85 94.4 104 1 1 1 137 4.4 NV DV P6SMBJ90 P6SMBJ90C 90 100 126.5 1 1 1 160 3.8 NW DW P6SMBJ90A P6SMBJ90CA 90 100 111 1 1 1 146 4.1 NX DX P6SMBJ100 P6SMBJ100C 100 111 141 1 1 1 179 3.4 NY DY P6SMBJ100A P6SMBJ100CA 100 111 123 1 1 1 162 3.7 NZ DZ P6SMBJ110 P6SMBJ110C 110 122 154.5 1 1 1 196 3 PD ED P6SMBJ110A P6SMBJ110CA 110 122 135 1 1 1 177 3.4 PE EE P6SMBJ120 P6SMBJ120C 120 133 169 1 1 1 214 2.8 PF EF P6SMBJ120A P6SMBJ120CA 120 133 147 1 1 1 193 3.1 PG EG P6SMBJ130 P6SMBJ130C 130 144 182.5 1 1 1 231 2.6 PH EH P6SMBJ130A P6SMBJ130CA 130 144 159 1 1 1 209 2.9 PK EK P6SMBJ150 P6SMBJ150C 150 167 211.5 1 1 1 268 2.2 PL EL P6SMBJ150A P6SMBJ150CA 150 167 185 1 1 1 243 2.5 PM EM P6SMBJ160 P6SMBJ160C 160 178 226 1 1 1 287 2.1 PN EN P6SMBJ160A P6SMBJ160CA 160 178 197 1 1 1 259 2.3 PP EP P6SMBJ170 P6SMBJ170C 170 189 239.5 1 1 1 304 2 PQ EQ P6SMBJ170A P6SMBJ170CA 170 189 209 1 1 1 275 2.2 PR ER P6SMBJ180 P6SMBJ180C 180 198 253.8 1 1 1 322 1.9 PS ES P6SMBJ180A P6SMBJ180CA 180 198 222 1 1 1 292 2.1 PT ET P6SMBJ190 P6SMBJ190C 190 209 267.9 1 1 1 340 1.8 PU EU P6SMBJ190A P6SMBJ190CA 190 209 243.2 1 1 1 308 2 PV EV P6SMBJ200 P6SMBJ200C 200 220 282 1 1 1 358 1.7 PW EW P6SMBJ200A P6SMBJ200CA 200 220 247 1 1 1 324 1.9 PX EX P6SMBJ210 P6SMBJ210C 210 231 296.1 1 1 1 376 1.6 PY EY P6SMBJ210A P6SMBJ210CA 210 231 268.8 1 1 1 340 1.8 PZ EZ P6SMBJ220 P6SMBJ220C 220 242 310.2 1 1 1 394 1.5 QD FD P6SMBJ220A P6SMBJ220CA 220 242 272 1 1 1 356 1.7 QE FE July 25,2018-REV.14 PAGE . 3 P6SMBJ SERIES 110 100 90 80 70 60 50 40 30 20 10 0 PPP or IPP Derating Percentage (%) PPPM - Peak Pulse Power(kW) 10.0 Non-Repetive Pluse Waverform Shown in Figure 3 TA=25℃ 1.0 0.1 1 10 100 1,000 0 10,000 25 Fig.1 Peak Pulse Power Rating 50% of IPP@1000us Rise time 10~90%-10μs 0 1 2 3 4 Time (ms) Fig.3 10/1000μs Pulse Waveform July 25,2018-REV.14 75 100 125 150 175 200 Fig.2 Derating Curve CJ - Junction Capacitance(pF) Percent of IPP (%) 110 100 90 80 70 60 50 40 30 20 10 0 50 TA - Ambient Temperature(℃) td - Pulse Width(μs) 10,000 Uni-direc onal VR=0V 1,000 100 Bi-direc onal VR=0V 10 1 1 10 100 VRWM - Reverse Stand-off Voltage (V) Fig.4 Typical Capacitance PAGE . 4 P6SMBJ SERIES MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 3K per 13" plastic Reel T/R - 0.8K per 7" plastic Reel July 25,2018-REV.14 PAGE . 5 P6SMBJ SERIES Part No_packing code_Version P6SMBJ5.0_R1_00001 P6SMBJ5.0_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Part No. Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING July 25,2018-REV.14 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 6 P6SMBJ SERIES Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. July 25,2018-REV.14 PAGE . 7
