PJDLC05_R1_00001

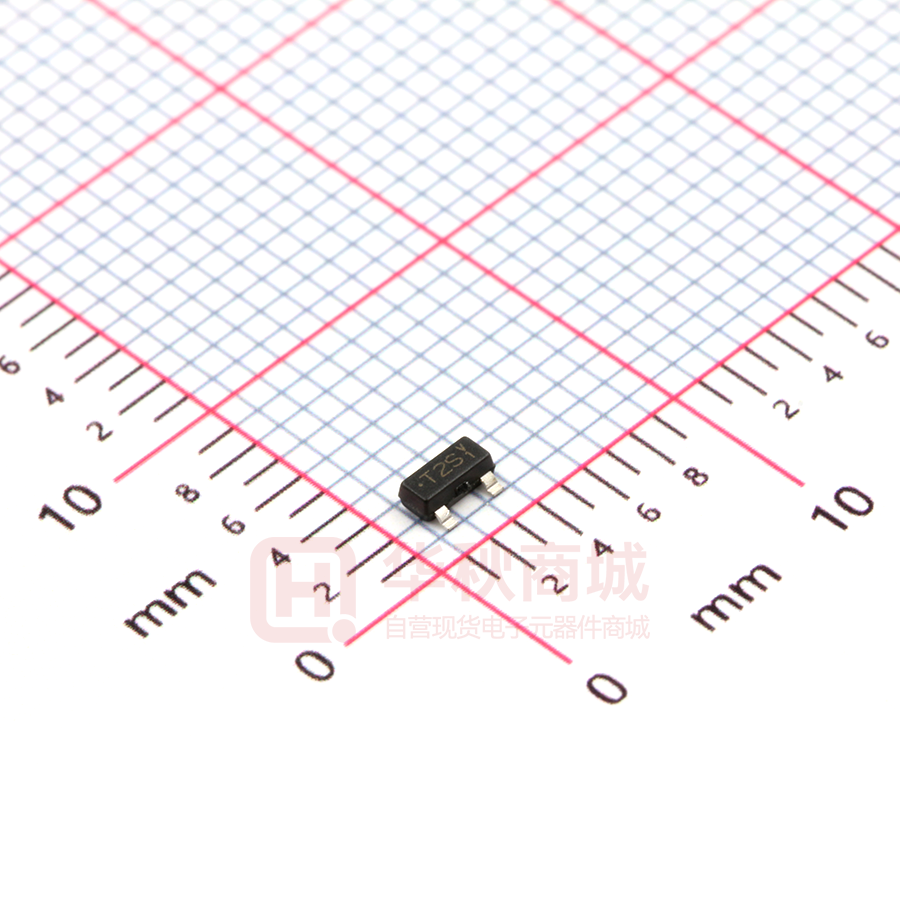

PJDLC05~PJDLC24 VOLTAGE 5 to 24 Volt POWER 400 Watt This transient overvoltage suppressor is intended to prodect sensitive equipment againset electrostatic discharge events as well to offer a minmum lnsertion loss in data transmission lines in communications ports used in portable consumer, computing and networking applicatons. This dual transient voltage suppressor comes in a single SOT-23, offering borard space reduction, where the application requires it. 0 .0 0 6 ( 0 .1 5 ) M I N . ULTRA LOW CAPACITANCE DUAL TRANSIET VOLTAGE SUPPRESSOR FOR HIGH SPEED DATA LINES 0.120(3.04) 0.110(2.80) FEATURES • Maximum capacitance @ 0 Vdc Bias of 1.2 pF between terminals 1-3 0.056(1.40) or terminals 2-3 0.047(1.20) • IEC61000-4-2 esd 15kV Air, 8kV contact compliance • Lead free in compliance with EU RoHS 2011/65/EU directive 0.008(0.20) 0.079(2.00) 0.003(0.08) 0.070(1.80) • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICALDATA • Case: SOT-23, plastic 0.004(0.10) 0.044(1.10) • Terminals: solderable per MIL-STD-750, Method 2026 0.000(0.00) 0.035(0.90) • Approx. Weight: 0.0003 ounces, 0.008 grams 0.020(0.50) 0.013(0.35) Fig.21 MAXIMUM RATINGS Parameter Op e ra ti ng J unc ti o n S to ra g e Te mp e ra ture Ra ng e Symbol Value TJ -55 to +125 O -55 to +150 O T S TG Units C C ELECTRICAL CHARACTERISTICS PJDLC05 Makring T2S Parameter Symbol Conditions Min. Typ. Max. Units Reverse Stand-Off Voltage VRWM - - - 5 V Reverse Breakdown Voltage VBR I T=1mA 6 - - V Reverse Leakage Current IR V RWM = 5V, T = 25OC - - 20 μA Clamping Voltage VC I PP = 1A t p = 8/20 μs - - 9.8 V Clamping Voltage VC I PP = 5A t p = 8/20 μs - - 11 V Junction Capacitance CJ Between pin1.2 to 3 VR=0V,f=1MHz - - 1.0 pF September 8,2015-REV.00 PAGE . 1 PJDLC05~PJDLC24 PJDLC12 Makring DJ2 Parameter Symbol Conditions Min. Typ. Max. Units Reverse Stand-Off Voltage V RWM - - - 12 V Reverse Breakdown Voltage VBR I T=1mA 13.3 - - V Reverse Leakage Current IR VRWM = 12V, T = 25OC - - 1 μA Clamping Voltage VC I PP = 1A t p = 8/20 μs - - 19 V Clamping Voltage VC I PP = 5A t p = 8/20 μs - - 24 V Junction Capacitance CJ Between pin1.2 to 3 VR=0V,f=1MHz - - 1.0 pF Symbol Conditions Min. Typ. Max. Units Reverse Stand-Off Voltage V RWM - - - 15 V Reverse Breakdown Voltage VBR I T=1mA 16.7 - - V Reverse Leakage Current IR VRWM = 15V, T = 25OC - - 1 μA Clamping Voltage VC I PP = 1A t p = 8/20 μs - - 24 V Clamping Voltage VC I PP = 5A t p = 8/20 μs - - 30 V Junction Capacitance CJ Between pin1.2 to 3 VR=0V,f=1MHz - - 1.2 pF Symbol Conditions Min. Typ. Max. Units VRWM - - - 24 V Reverse Breakdown Voltage VBR I T=1mA 26.7 - - V Reverse Leakage Current IR V RWM = 24V, T = 25OC - - 1 μA Clamping Voltage VC I PP = 1A t p = 8/20 μs - - 43 V Clamping Voltage VC I PP = 5A t p = 8/20 μs - - 55 V Junction Capacitance CJ Between Pin 1.2 to 3 VR = 0V, f = 1MHz - - 1.0 pF PJDLC15 Makring DJ5 Parameter PJDLC24 Marking DJ4 Parameter Reverse Stand-Off Voltage September 8,2015-REV.00 PAGE . 2 PJDLC05~PJDLC24 September 8,2015-REV.00 PAGE . 3 PJDLC05~PJDLC24 0.035 MIN. (0.90) MIN. MOUNTING PAD LAYOUT 0.078 (2.00) 0.037 (0.95) 0.043 (1.10) 0.031 MIN. (0.80) MIN. 0.043 (1.10) 0.106 (2.70) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7" plastic Reel September 8,2015-REV.00 PAGE . 4 PJDLC05~PJDLC24 Part No_packing code_Version PJDLC05_R1_00001 PJDLC05_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Part No. Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING September 8,2015-REV.00 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 PJDLC05~PJDLC24 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. September 8,2015-REV.00 PAGE . 6
