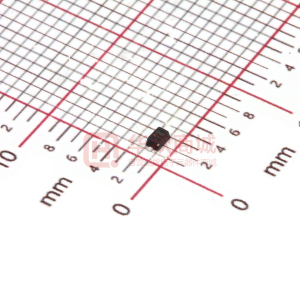

PJGBLC03

PJGBLC03~PJGBLC24C SERIES ULTRA LOW CAPACITANCE TVS ARRAY VOLTAGE FEATURES • 61000-4-2(ESD) : Air-15KV,Contact-8KV • Unidirectional & Bidirectional Configurations • Replacement for MLV (0805) • Protects One Power or I/O Port • Low Clamping Voltage • Ultra Low Capacitance : 3pF Maximum • In compliance with EU RoHS 2002/95/EC directives .078(1.95) .068(1.75) .054(1.35) .045(1.15) .014(.35) .009(.25) 3.0~24 Volts POWER 350 Watts SOD-323 Unit: inch (mm) .038(.95) .027(.70) .006(.15) .107(2.7) .090(2.3) MECHANICAL DATA • Case: SOD-323,Molded plastic over passivated junction • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.0041 grams • Mounting Position : Any .012(.30)MIN. MAXIMUM RATINGS (@25°C unless otherwise specified) PARAMETER Peak Pulse Power (t P=8/20µs)-See Figure 1 Operating and Storage Temperature Range SYMBOL PPP TJ,TSTG VALUE 350 -55 to +150 .002(.05) UNITS Watts o C REV.0.3-APR.15.2009 PAGE . 1 PJGBLC03~PJGBLC24C SERIES ELECTRICAL CHARACTERISTICS PER LINE (@25°C unless otherwise specified) Off-State Capacitance, 1MHz Zero dc Bias 0 V @ 1 MH z V R WM Ma x . W PJGBLC03 PJGBLC03C PJGBLC05 PJGBLC05C PJGBLC08 PJGBLC08C PJGBLC12 PJGBLC12C PJGBLC15 PJGBLC15C PJGBLC24 PJGBLC24C 350 350 350 350 350 350 350 350 350 350 350 350 V 3.0 3.0 5.0 5.0 8.0 8.0 12 12 15 15 24 24 Min . V 4.75 4.75 7.03 7.03 8.93 8.93 13.97 13.97 17.39 17.39 27.27 27.27 V BR @ I Ma x . V 5.25 5.25 7.77 7.77 9.87 9.87 15.44 15.44 19.22 19.22 30.14 30.14 T Peak Power D is s ip a tio n Part Number @ 8 /2 0µ s (See Notes1-2) P PPM R a te d -S ta n d Of f Vo lt a g e R e v e r s e B r e a k d o w n Vo lt a g e Maximum Clamping Voltage (See Fig.2) @ 8 /2 0µ s P PPM L eakag e Current I R @ VRWM Marking C ode I V C@ I T CO Ma x . PP Ma x . A 1 1 1 1 1 1 1 1 1 1 1 1 µA 20 20 5 5 1 1 1 1 1 1 1 1 mA 1 1 1 1 1 1 1 1 1 1 1 1 V 7.5 7.5 9.8 9.8 13.4 13.4 19 19 24 24 43 43 pF 3 3 3 3 3 3 3 3 3 3 3 3 AA AQ AB AL AC AR AJ AM AS AN AT AP UNIDIRECTIONAL BIDIRECTIONAL NOTES: 1.Part numbers with an additional “C” suffix are bidirectional devices,i.e.,PJGBLC03 C 2.Unidirectional Only : Positive potential is applied from pin 2 to 1 1 1 2 2 REV.0.3-APR.15.2009 PAGE . 2 PJGBLC03~PJGBLC24C SERIES 10000 P PP -PEAK PULSE POWER-WATTS 1000 350W 8/20 m s Waveform 100 10 0.1 1 10 100 1000 10000 td-Pulse Duration- m s FIG.1 PEAK PULSE POWER VS PULSE TIME 120 I PP -Peak Pulse Current-% of I PP 100 80 60 40 20 0 0 5 tf Peak Value Ipp Test Wave Form Parameters t f=8 m s td = 20 m s e -t td=t Ipp/2 10 15 t-TIME- m 20 25 30 FIG.2 PULSE WAVE FORM REV.0.3-APR.15.2009 PAGE . 3 PJGBLC03~PJGBLC24C SERIES MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 5K per 7" plastic Reel LEGAL STATEMENT Copyright PanJit International, Inc 2009 The information presented in this document is believed to be accurate and reliable. The specifications and information herein are subject to change without notice. Pan Jit makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose. Pan Jit products are not authorized for use in life support devices or systems. Pan Jit does not convey any license under its patent rights or rights of others. REV.0.3-APR.15.2009 PAGE . 4
