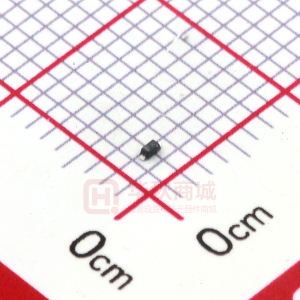

RB520G-30

RB520G-30 SCHOTTKY BARRIER DIODE FEATURES • Rectifying small power • Ultra small mold type • Low V F • High reliability • In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA Case: SOD-723, Plastic Terminals: Solderable per MIL-STD-750, Method 2026 Polarity: Color band cathode Approx.Weight : 0.00077 gram Marking : BP 1 2 Cathode Anode ABSOLUTE MAXIMUM RATINGS ( TA = 25OC ) PARAMETER Reverse Voltage (DC) Average Rectified Forward Current Forward Current Surge Peak (60Hz . 1cyc) Operating Junction and Storage Temperature Range SYMBOL VR IO I FSM TJ,TSTG LIMITS 30 200 1000 -40 to 125 UNITS V mA mA O C ELECTRICAL CHARACTERISTICS ( TA = 25OC ) PARAMETER Forward Voltage SYMBOL TEST CONDITIONS VF I F = 200mA MIN - TYP - MAX 0.6 UNITS V Reverse Current IR V R = 10V - - 1 µA Typical Junction Capacitance between Terminal (Note1) CJ V R = 20V - 15 - pF NOTES : 1.Measured at 1.0MHz REV.0.0-JAN.5.2009 PAGE . 1 RB520G-30 Electrical characteristic curves (T A =25 oC) FORWARD CURR ENT : IF(mA ) 100 10 1 0.1 0.01 0.001 0 T J=75 C o REVERSE CURRENT : IR( m A) 1000 T J=125 C o 10000 1000 T J=125 C T J=75 C o o 100 10 1 0.1 0.01 0 10 20 30 T J=25 C T J=-25 C o o T J=-25 C o T J=25 C 100 200 300 400 500 600 o FORWARD VOLTAGE : VF(mV) VF-IF CHARACTERISTICS REVERSE VOLTAGE : VR(V) VR-IR CHARACTERISTICS TRANSIENT THAERMAL IMPEDANCE : Rth( oC/W) PEA K SUR GE FOR WAR D CUR REN T : IFSM (A) 10 Ifsm 8.3ms 8.3ms 1000 Rth(j-a) 1cyc Rth(j-c) 5 100 Mounted on epoxy board IM=10mA IF=100mA 1ms time 0 1 10 100 NUMBER OF CYCLES IFSM-CYCLE CHARACTERISTICS 10 0.001 300us 0.1 10 1000 TIME : t(s) Rth-t CHARACTERISTICS 0.3 AVERAGE RECTIFIED FORWARD CURRENT : I O (A) 0A 0V t Io VR D=t/T VR=15V o T J =125 C 100 CAPAC ITANC E BETW EEN TERM INALS : Ct(pF) f=1MHz 0.2 DC D=1/2 T 10 0.1 Sin( Q =180) 0 1 0 25 50 75 100 o 125 0 7 14 21 28 CASE TEMPARATURE : T C ( C) Derating Curve(I O -T C ) REVERSE VOLTAGE : VR(V) VR-Ct CHARACTERISTICS PAGE . 2 REV.0.0-JAN.5.2009 RB520G-30 MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 8K per 7" plastic Reel LEGAL STATEMENT Copyright PanJit International, Inc 2009 The information presented in this document is believed to be accurate and reliable. The specifications and information herein are subject to change without notice. Pan Jit makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose. Pan Jit products are not authorized for use in life support devices or systems. Pan Jit does not convey any license under its patent rights or rights of others. REV.0.0-JAN.5.2009 PAGE . 3
