RB520S30
SURFACE MOUNT SCHOTTKY DIODES
VOLTAGE
200 mA
CURRENT
30 Volt
FEATURES
• Extremely High Switching Speed
0.050(1.25)
0.045(1.15)
• Surface mount package ideally suited for autmatic insertion
• Lead free in compliance with EU RoHS 2011/65/EU directive
• Green molding compound as per IEC61249 Std. . (Halogen Free)
0.014(0.35)
0.009(0.25)
0.034(0.85)
0.029(0.75)
0.026(0.65)
0.021(0.55)
MECHANICAL DATA
0.006(0.15)
0.002(0.05)
0.067(1.70)
0.059(1.50)

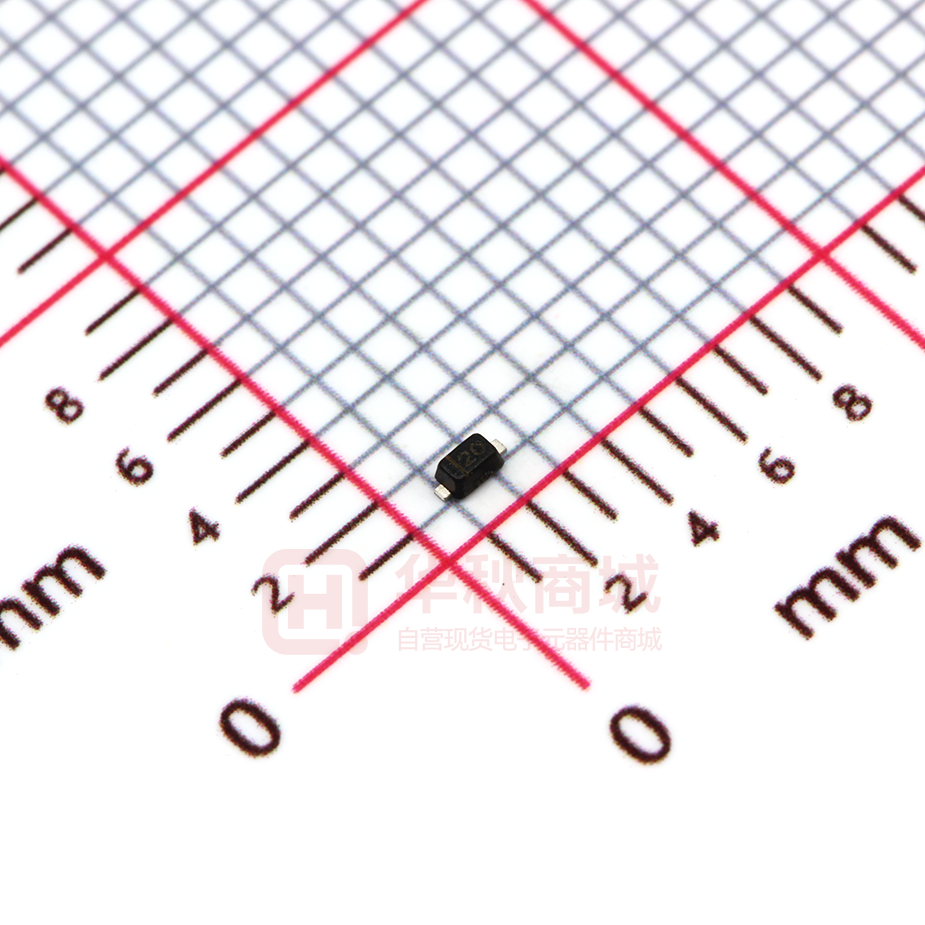

• Case: SOD-523, Plastic
• Terminals: Solderable per MIL-STD-750, Method 2026
0.20 MIN.
• Appox Weight : 0.0001 ounces,0.0014 grams
• Marking : 20
ABSOLUTE RATINGS
PA RA ME TE R
S ymb o l
Value
Units
Peak Reverse Voltage
VR
30
V
Maximum Forward Current
IO
0.2
A
I FSM
1
A
T J,T STG
-5 5 to +1 2 5
oC
Peak Forward Surge Current 1000ms Single half sine-wave superimposed on
rate load
Op e ra ti ng J unc ti o n a nd S to ra g e Te mp e ra ture Ra ng e
ELECTRICAL CHARACTERISTICS ( TJ = 25OC unless otherwise noted )
PA RA M E TE R
S ym b o l
Te s t C o n d i t i o n
M IN .
T YP.
MA X .
U ni t s
V R= 1 0 V
-
-
1 .0
μA
R e ve r s e L e a k a g e C ur r e nt
I
F o rwa rd Vo lta g e
V F1
I F=2 0 mA
-
-
0.40
V
F o rwa rd Vo lta g e
V F2
I F=2 0 0 mA
-
-
0.60
V
To t a l C a p a c i t a n c e
CJ
V R= 0 V , F = 1 M H z
-
30
-
pF
May 17,2016-REV.06
R
PAGE . 1
RB520S30
RATING AND CHARACTERISTIC CURVES
100
0.35
O
AVERAGE FORWARD RECIFIED
CURRENT AMPERES
CAPACITANCE, pF
T J = 25 C
f = 1.0MHz
Vsig = 50mVp-p
10
1
0.1
0.25
0.20
0.15
0.10
0.05
0
0
20
40
60
80
100
120
140
160
180
100
10
1
SINGLE PHASE, HALF-WAVE, 60Hz RESISTIVE
OR INDUCTIVE LOAD P.C.B MOUNTED
ON 0.3 x 0.3" (8.0 x 8.0 mm)COPPER PAD AREAS
0.30
O
LEAD TEMPERATURE, C
REVERSE VOLTAGE, VOLTS
FIG.2 MAXIMUM AVERAGE FORWARD CURRENT DERATING
FIG.1 TYPICAL JUNCTION CAPACITANCE
1000
INSTANTANEOUS FORWARD CURRENT,
AMPERES
INVSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
1.0
O
T J =125 C
100
O
T J =75 C
10
1
O
T J =25 C
0.1
O
T A =25 C
0.1
0.01
0
10
20
30
40
0.1
0.3
0.4
0.5
0.6
0.7
0.8
0.9
INSTANTANEOUS FORWARD VOLTAGE VOLTS
Reverse Voltage, VOLTS
Fig.3 Typical Reverse Characteristics
FIG.4 TYPICAL FORWARD CHARACTERISTICS
40
Reverse Voltage (V)
FORWARD SURGE CURRENT, AMPERES pk
(HALF-SING WAVE)
0.2
1.4
1.2
1.0
0.8
0.6
0.4
0.2
1
2
4
6
8 10
20
40 60 80 100
NUMBER OF CYCLES AT 60Hz
FIG.5 MAXIMUM NON-REPEITIVE SURGE CURRENT
May 17,2016-REV.06
30
20
10
0
0
25
50
75
100
125
TJ, Junction Temperature (°C)
Fig.Operating Temperature Derating Curve
PAGE . 2
RB520S30
MOUNTING PAD LAYOUT
ORDER INFORMATION
• Packing information
T/R - 12K per 13" plastic Reel
T/R - 5K per 7" plastic Reel
May 17,2016-REV.06
PAGE . 3
RB520S30
Part No_packing code_Version
RB520S30_R1_00001
RB520S30_R2_00001
For example :
RB500V-40_R2_00001
Serial number
Part No.
Version code means HF
Packing size code means 13"
Packing type means T/R
Packing Code XX
Packing type
Tape and Ammunition Box
(T/B)
Tape and Reel
(T/R)
Bulk Packing
(B/P)
Tube Packing
(T/P)
Tape and Reel (Right Oriented)
(TRR)
Tape and Reel (Left Oriented)
(TRL)
FORMING
May 17,2016-REV.06
Version Code XXXXX
1st Code
Packing size code
A
N/A
0
HF
0
serial number
R
7"
1
RoHS
1
serial number
B
13"
2
T
26mm
X
S
52mm
Y
L
F
PANASERT T/B CATHODE UP
(PBCU)
PANASERT T/B CATHODE DOWN
(PBCD)
2nd Code HF or RoHS 1st Code 2nd~5th Code
U
D
PAGE . 4
RB520S30
Disclaimer
• Reproducing and modifying information of the document is prohibited without permission
from Panjit International Inc..
• Panjit International Inc. reserves the rights to make changes of the content herein the
document anytime without notification. Please refer to our website for the latest
document.
• Panjit International Inc. disclaims any and all liability arising out of the application or use of
any product including damages incidentally and consequentially occurred.
• Panjit International Inc. does not assume any and all implied warranties, including warranties
of fitness for particular purpose, non-infringement and merchantability.
• Applications shown on the herein document are examples of standard use and operation.
Customers are responsible in comprehending the suitable use in particular applications.
Panjit International Inc. makes no representation or warranty that such applications will be
suitable for the specified use without further testing or modification.
•
The products shown herein are not designed and authorized for equipments requiring high
level of reliability or relating to human life and for any applications concerning life-saving
or life-sustaining, such as medical instruments, transportation equipment, aerospace
machinery et cetera. Customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages
resulting from such improper use or sale.
• Since Panjit uses lot number as the tracking base, please provide the lot number for tracking
when complaining.
May 17,2016-REV.06
PAGE . 5
