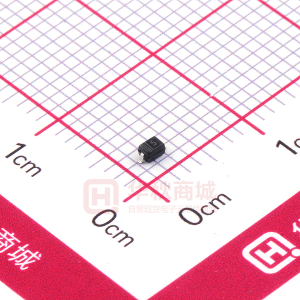

RB751V-40

RB751V-40 SURFACE MOUNT SCHOTTKY DIODES VOLTAGE FEATURES • Extremely Fast Switching Speed .054(1.35) .045(1.15) 40 Volts CURRENT 200 mA SOD-323 Unit: inch (mm) • Very Low V F : 0 .325V (Typ) at I F = 1 mA • Surface mount package ideally suited for autmatic insertion • Pb free product are available : 99% Sn above can meet RoHS .078(1.95) .068(1.75) .009(.25) .014(.35) environment substance directive request .038(.95) .027(.70) .006(.15) MECHANICAL DATA Case: SOD-323, Plastic Terminals: Solderable per MIL-STD-750, Method 2026 Appox Weight : 0.008 gram Marking : P60 .107(2.7) .090(2.3) .012(.30)MIN. ABSOLUTE RATINGS PA RA M E TE R M a xi m um R e ve r s e D C V o l t a g e P e a k R e ve r s e V o l t a g e M a xi m um F o r w a r d C ur r e nt P o we r D i s s i p a ti o n (1) S ym b o l V RRM VR IF P TOT TJ T S TG Va l ue 40 30 0 .2 200 -5 5 to 1 2 5 -5 5 to 1 5 0 .002(.05) U ni t s V V A mW O J u n c t i o n Te m p e r a t u r e S t o r a g e Te m p e r a t u r e C C O THERMAL CHARACTERISTICS PA RA M E TE R The r m a l R e s i s t a nc e , J unc t i o n t o A m b i e nt (1) S ym b o l R θJ A Va l ue 500 U ni t s O C /W 1 . FR-5 Board = 1.0 x 0.75 x 0.062 in. Minmum Pad Layout REV.0-APR.7.2005 PAGE . 1 RB751V-40 ELECTRICAL CHARACTERISTICS ( TJ = 25OC unless otherwise noted ) PA RA M E TE R R e ve r s e L e a k a g e C ur r e nt F o rwa rd Vo lta g e To t a l C a p a c i t a n c e S ym b o l IR VF CT Te s t C o n d i t i o n V R= 3 0 V IF = 1 m A V R= 1 V , F = 1 M H z M IN . T YP. 3 MA X . 0 .5 0.37 5 U ni t s µA V pF ELECTRICAL CHARACTERISTICS CURVE 100 T A =125 C O 100 Reverse Leakage Current, I R( m A) 10 T A =75 C 1 O T A =125 C O Forward Current, I F(mA) 10 T A =75 C O 0.1 T A =25 C O T A =-25 C 1 O 0.01 T A =-25 C 0.001 0 10 20 30 40 0.1 0 0.1 0.2 0.3 0.4 O T A =25 C O 0.5 0.6 0.7 Reverse Voltage, V R (V) Fig.1-Typical Reverse Leakage Forward Voltage, V F (V) Fig.2-Typical Forward Voltage 4 3.5 Total Capacitance, C T(pF) 3 2.5 2 1.5 1 0.5 0 0 10 20 Reverse Voltage,V R (V) 30 40 Fig.3-Typical Capacitance REV.0-APR.7.2005 PAGE . 2 RB751V-40 MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 5K per 7" plastic Reel LEGAL STATEMENT Copyright PanJit International, Inc 2005 The information presented in this document is believed to be accurate and reliable. The specifications and information herein are subject to change without notice. Pan Jit makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose. Pan Jit products are not authorized for use in life support devices or systems. Pan Jit does not convey any license under its patent rights or rights of others. STAD-OCT.14.2005 PAGE . 3
