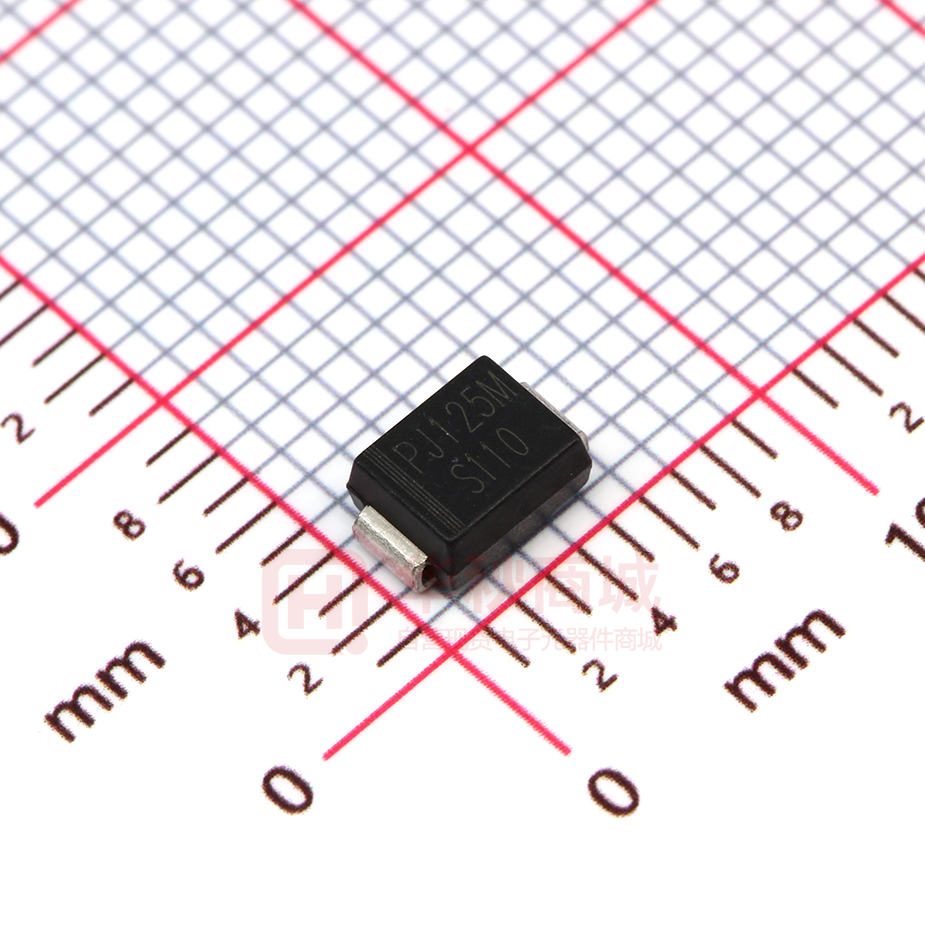

S110_R1_00001

DATA SHEET SK12~S110 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER 1.0 Ampere CURRENT VOLTAGE 20 to 100 Volts SMB/DO-214AA Unit: inch (mm) FEATURES .083(2.11) .075(1.91) .155(3.94) .130(3.30) • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • For surface mounted applications • Low profile package • Built-in strain relief • Metal to silicon rectifier. majority carrier conduction • Low power loss,high efficiency • High surge capacity • High current capacity ,low VF • For use in low voltage high frequency inverters, free wheeling, and polarity protection applications. • Lead free in comply with EU RoHS 2011/65/EU directives. • • Green molding compound as per IEC61249 Std. . (Halogen Free) .185(4.70) .160(4.06) .083(2.13) .096(2.44) .012(.305) .006(.152) .050(1.27) .030(0.76) MECHANICAL DATA .008(.203) .002(.051) .220(5.59) .200(5.08) Case: JEDEC DO-214AA molded plastic Terminals:Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes positive end (cathode) Standard packaging: 12mm tape (EIA-481) Weight: 0.003 ounce, 0.093 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Resistive or inductive load. PA RA M E TE R S YM B O L SK12 SK13 SK14 SK15 SK16 SK18 SK19 S 11 0 U N IT S M a xi m um R e c ur r e nt P e a k R e ve r s e V o l t a g e V RRM 20 30 40 50 60 80 90 100 V M a xi m um R M S V o l t a g e V RMS 14 21 28 35 42 56 63 70 V M a xi m um D C B l o c k i ng V o l t a g e V DC 20 30 40 50 60 80 90 100 V M a xi m um A ve r a g e F o r w a r d C ur r e nt . 3 7 5 " ( 9 . 5 m m ) l e a d l e ng t h a t T L = 7 5 OC IAV 1 .0 A P e a k F o r w a r d S ur g e C ur r e nt : 8 . 3 m s s i ng l e ha l f s i ne - w a ve s up e r i m p o s e d o n r a t e d l o a d ( J E D E C m e t ho d ) IF S M 30 A M a xi m um F o r w a r d V o l t a g e a t 1 . 0 A ( N o t e 1 ) VF M a xi m um D C R e ve r s e C ur r e nt T A = 2 5 OC a t R a t e d D C B l o c k i ng V o l t a g e T A = 1 0 0 OC IR 0 .5 20 M a xi m um The r m a l R e s i s t a nc e ( N o t e 2 ) Rθ J L Rθ J A 30 95 O p e r a t i n g J u n c t i o n Te m p e r a t u r e R a n g e TJ -5 0 to +1 2 5 O C T S TG -5 0 to +1 5 0 O C S t o r a g e Te m p e r a t u r e R a n g e 0 .5 0 .7 0 .8 5 V mA O C / W NOTES: A.Pulse Test with PW =300µsec, 1% Duty Cycle. B.Mounted on P.C. Board with 5.0mm 2 (.013mm thick) copper pad areas. STAD-SEP.25.2006 PAGE . 1 1.0 SINGLEPHASEHALFWAVE60Hz RESISTIVEORINDUCTIVELOAD P.C.B MOUNTED ON 0.2 X 0.2"( 5.0 X 5. 0mm) COPPERPADAREAS .75 .50 .25 0 0 25 50 75 100 125 150 175 PEAK FORWARDSURGE CURRENT, AMPERES AVERAGEFORWARD RECITIFIED CURRENT AMPERES RATING AND CHARACTERISTIC CURVES 30 25 20 15 10 5 0 1 10 O LEAD TEMPERAURE, C NO. OF CYCLE AT 60HZ Fig.2-MAXIMUMNON-REPETITIVEPEAK FORWARD SURGE CURRENT Fig.1- FORWARD CURRENT DERATING CURVE 10 100 10 5 50-60V 10 3 10 2 10 1 10 0 FORWARD CURRENT, AMPERES REVERSE CURRENT, uA 10 4 T J =125 OC T J =75 OC 20-40V 1.0 80-100V 0.1 T A = 25 OC 10 -1 V RRM =20-60V V RRM =80-100V O T J =25 C 10 -2 20 40 60 80 100 PERCENT OF RATED PEAK REVERSE VOLTAGE,% Fig.3- TYPICAL REVERSE CHARACTERISTIC STAD-SEP.25.2006 0.01 0 0.2 0.4 0.6 0.8 1.0 FORWARD VOLTAGE, VOLTS Fig.4- TYPICAL INSTANTANEOUS FORWARD CHARACTERISTIC PAGE . 2 MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 3K per 13" plastic Reel T/R - 0.5Kper 7” plastic Reel STAD-SEP.25.2006 PAGE . 3 Part No_packing code_Version SK12_R1_00001 SK12_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING STAD-SEP.25.2006 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. STAD-SEP.25.2006 PAGE . 5
