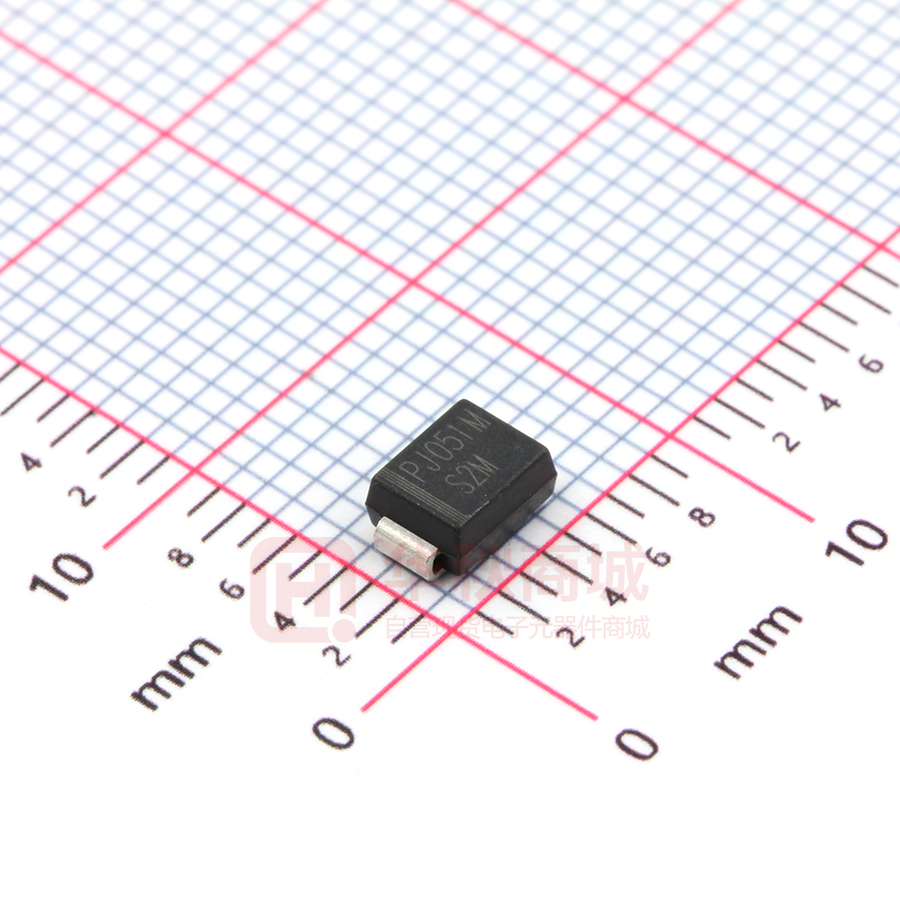

S2M_R1_00001

S2A~S2M SURFACE MOUNT RECTIFIER VOLTAGE 50 to 1000 Volt CURRENT 2 Ampere FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • For surface mounted applications in order to optimize board space • Easy pick and place • Glass passivated iunction • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard MECHANICAL DATA • • • • • Case: JEDEC DO-214AA molded plastic Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Standard packaging: 12mm tape (EIA-481) Weight: 0.003 ounces, 0.092 grams 1 2 Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase , half wave ,60Hz, resistive or inductive load. For capacitive load , derate current by 20%. PAR A M E T E R SY MBO L S2A S2 B S2D S2G S2J S2K S2M UNI T S M a xi mum R e c ur r e nt P e a k R e ve r s e Vo lt a g e V RRM 50 100 200 400 600 800 1000 V M a xi mum R M S Vo l t a g e V RM S 35 70 140 280 420 560 700 V M a xi mum D C B l o c k ing Vo l t a g e V DC 50 100 200 400 600 800 1000 V M a xi mum A ve r a g e F o r w a r d C ur r e nt I F ( AV) 2 A P e a k F o r w a r d S ur g e C ur r e nt : 8 . 3 ms S i ng l e Ha l f S i ne - Wa ve S up e r i mp o s e d O n R a t e d L o a d I FS M 60 A P e a k F o r w a r d S ur g e C ur r e nt : S q ua r e Wa ve , t = 1 ms , No nR e p e t i t i ve 1 C y c l e P e a k Va l ue I FS M 130 A M a xi mum F o r w a r d Vo l t a g e a t 2 A VF 1. 1 V IR 1 125 μA CJ 30 pF R θJ L 16 T J , T ST G -55 to +150 M a xi mum D C R e ve r s e C ur r e nt a t R a t e d D C B l o c k i ng Vo l t a g e M a xi mum J unc t io n C a p a c i t a nc e ( No t e 1 ) Ty p ic a l J unc t i o n R e s i s t a nc e ( No t e 2 ) O p e r a t i ng J unc t i o n a nd S t o r a g e Te mp e r a t ur e R a ng e T J= 2 5 OC T J= 1 2 5 OC O C / W O C NOTES : 1.Measured at 1MHZ and applied V R =4 volts. 2.8 x 8mm 2 pads. May 3,2018­REV.07 PAGE . 1 S2A~S2M AVERAGE FORWARD RECTIFIED CURRENT, AMPERES 3.0 2.5 2.0 1.5 SINGLE PHASE HALF WAVE 60Hz RESISTIVE OR INDUCTIVE LOAD P.C.B MOUNTED ON 0.3 x 0.3" (8.0 x 8.0mm) COPPER PAD AREAS 1.0 0.5 0 0 50 100 150 PEAK FORWARD SURGE CURRENT, AMPERES RATING AND CHARACTERISTIC CURVES 60 50 40 30 20 10 0 1 6 2 10 20 40 60 100 O LEAD TEMPERATURE, C NO. OF CYCLES AT 60Hz Fig.1 FORWARD CURRENT DERATING CURVE Fig.2 MAXIMUM NON REPETITIVE PEAK SURGE CURRENT INSTANTANEOUS FORWARD CURRENT, AMPERES INSTANTANEOUS REVERSE CURRENT m A 100 o TJ = 125 C 10 o T J = 100 C 1.0 o T J = 25 C 0.1 0.01 20 40 60 80 100 120 140 10 1.0 T A = 25 OC 0.1 0.01 0.001 0 0.2 0.4 0.6 0.8 1.0 1.2 INSTANTANEOUS FORWARD VOLTAGE, VOLTS PERCENTAGE OF PEAK REVERSE VOLTAGE, % Fig.3-TYPICAL REVERSE CHARACTERISTIC FIG.2 TYPICAL FORWARD CHARACTERISTICS JUNCTION CAPACITANCE,pF 100 50 20 10 5 T J =25 OC f=1.0MHz Vsig=50m VP.P 2 1 0.1 1.0 10 100 REVERSE VOLTAGE, VOLTS Fig.5 TYPICAL JUNCTION CAPACITANCE May 3,2018­REV.07 PAGE . 2 S2A~S2M MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 3K per 13" plastic Reel T/R - 0.8K per 7" plastic Reel May 3,2018­REV.07 PAGE . 3 S2A~S2M Part No_packing code_Version S2A_R1_00001 S2A_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING May 3,2018­REV.07 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 S2A~S2M Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. May 3,2018­REV.07 PAGE . 5
