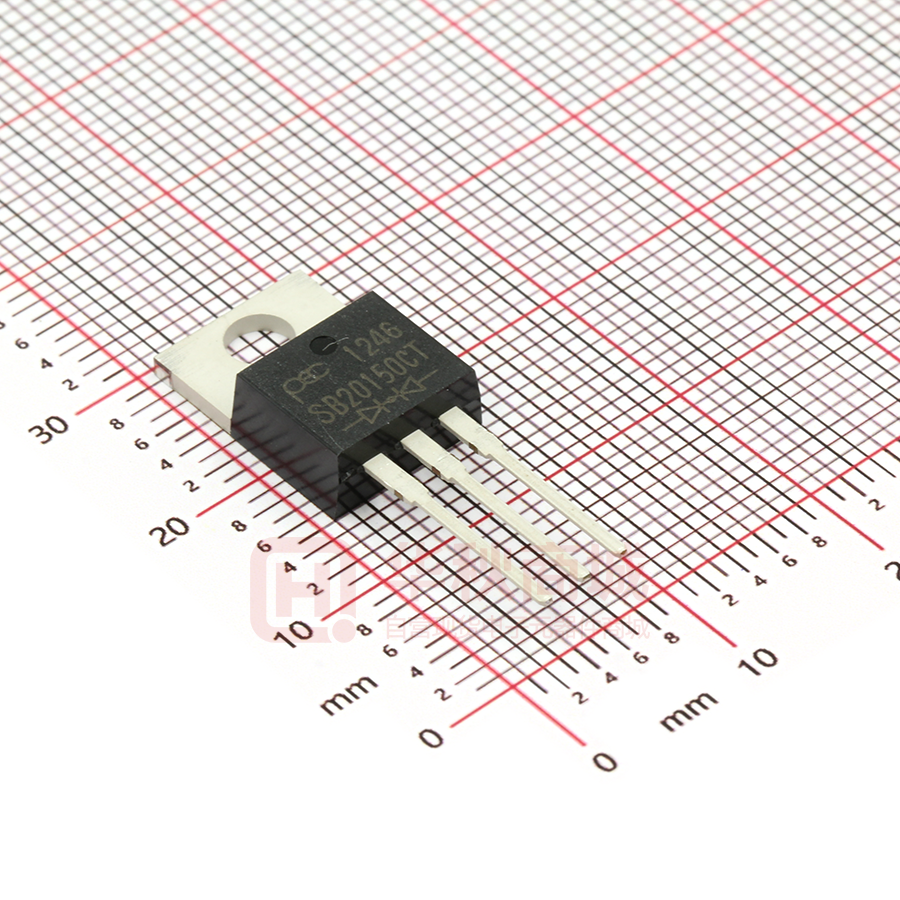

SB20150CT_T0_00001

SB2020CT~SB20200CT SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 200 Volt CURRENT 20 Ampere FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound. • Low power loss, high efficiency. • Low forwrd voltge, high current capability • High surge capacity. • For use in low voltage,high frequency inverters free wheeling , and polarlity protection applications. • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANCAL DATA • Case: TO-220AB Molded plastic • Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 • Polarity: As marked. • Standard packaging: Any • Weight: 0.067 ounces, 1.89 grams. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20% PARA METER SYMBOL SB2020CT SB2030CT SB2040CT SB2045CT SB2050CT S B2060CT S B2080CT SB20100CT SB20150CT SB20200CT UNITS Maximum Recurrent Peak Reverse Voltage V RRM 20 30 40 45 50 60 80 100 150 200 V Maximum RMS Voltage V RMS 14 21 28 31 35 42 56 70 105 140 V Maximum DC Blocking Voltage V DC 20 30 40 45 50 60 80 100 150 200 V Maximum A verage Forward lead length at Tc =90 O C IAV 20.0 A Peak Forward Surge Current : 8.3ms single half sinewave superimposed on rated load IFSM 200 A Maximum Forward Voltage at 10.0A, per leg VF Maximum DC Reverse Current T A =25 O C at Rated DC B locking Voltage T A =100 O C IR 0.5 100 R θ JC 2 TJ -55 to +125 T STG -55 to +150 Typical Thermal Resistance Operating Junction Temperature Range Storage Temperature Range 0.55 0.75 0.85 0.92 1 V mA O C/W O C Note. Both Bonding and Chip structure are available. October 24,2016-REV.06 PAGE . 1 SB2020CT~SB20200CT 25.0 20.0 15.0 10.0 5.0 20~30V 40~200V 0 0 50 150 100 PEAK FORWARD SURGE CURRENT, Amps AVERAGE FORWARD CURRENT, Amps RATING AND CHARACTERISTIC CURVES 240 210 8.3ms Single Half Since-Wave JEDEC Method 180 150 120 90 60 30 0 1 2 5 10 20 50 100 O CASE TEMPERATURE, C NO. OF CYCLE AT 60Hz Fig.1- FORWARD CURRENT DERATING CURVE Fig.2- MAXIMUM NON - REPETITIVE SURGE CURRENT INSTANTANEOUS REVERSE CURRENT, mA 10 40 FORWARD CURRENT, Amps 20,30,40,45V O TJ=100 C 1.0 O TJ=75 C 0.1 0.01 TJ=25 OC 50,60V 10 8 6 4 80,100V 2 1.0 .8 .6 .4 O TJ = 25 C Pulse Width = 300 us 1% Duty Cycle .2 .1 0.001 .3 20 40 60 80 100 120 .4 .5 .6 .7 .8 0.9 1.0 140 PERCENT OF INSTANTANEOUS REVERSE VOLTAGE, % Fig.3- TYPICAL REVERSE CHARACTERISTICS FORWARD VOLTAGE, VOLTS Fig.4- TYPICAL INSTANTANEOUS FORWARD CHRACTERISTICS Percent of Reverse Voltage 120 100 80 60 40 20 0 0 25 50 75 100 125 TJ, Junction Temperature (°C) Fig.5 Operating Temperature Derating Curve October 24,2016-REV.06 PAGE . 2 SB2020CT~SB20200CT Part No_packing code_Version SB2020CT_T0_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING October 24,2016-REV.06 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 3 SB2020CT~SB20200CT Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. October 24,2016-REV.06 PAGE . 4
