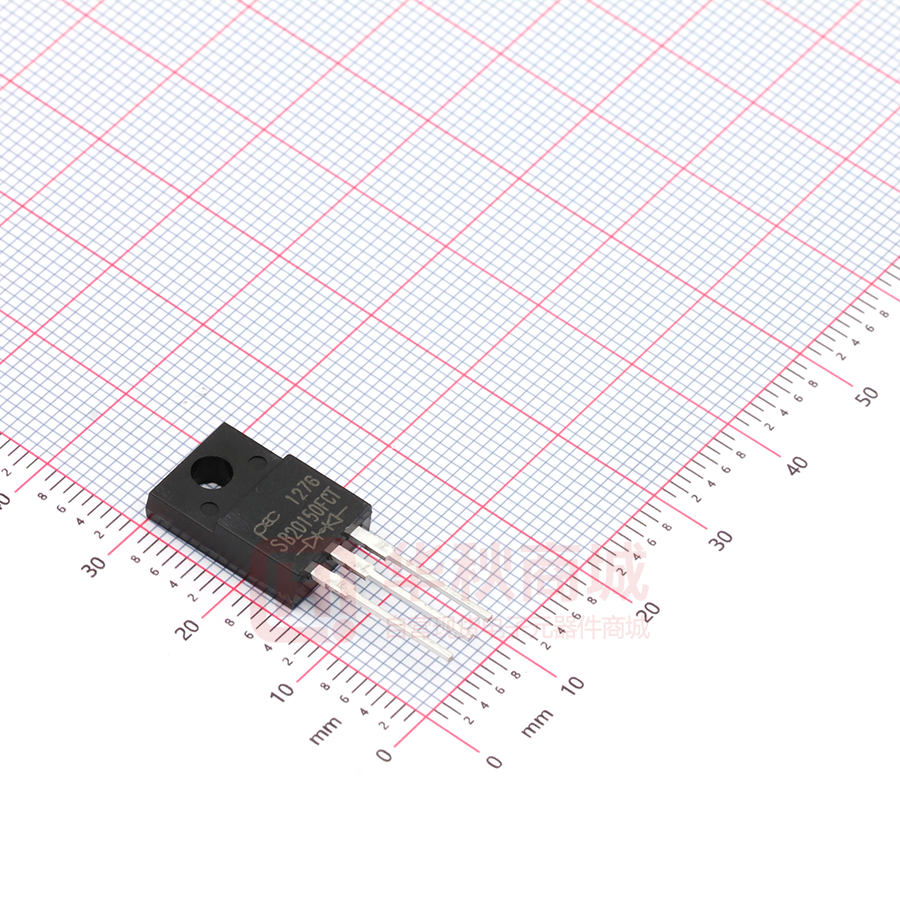

DATA SHEET SB2020FCT~SB20200FCT ISOLATION SCHOTTKY BARRIER RECTIFIERS 20 to 200 Volts VOLTAGE CURRENT 20 Amperes FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound. • Exceeds environmental standards of MIL-S-19500/228 • Low power loss, high efficiency. • Low forwrd voltge, high current capability • High surge capacity. • For use in low voltage,high frequency inverters free wheeling , and polarlity protection applications. • Pb free product : Sn can meet RoHS environment substance directive request MECHANCAL DATA Case: ITO-220AB Molded plastic Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: As marked. Standard packaging: Any Weight: 0.08 ounces, 2.24grams. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20% S YM B O L SB2020 FCT SB2030 FCT SB2040 FCT SB2045 FCT SB2050 FCT SB2060 FCT SB2080 FCT SB20100 FCT SB20150 FCT SB20200 FCT U N IT S M a xi m um R e c ur r e nt P e a k R e ve r s e V o l t a g e V RRM 20 30 40 45 50 60 80 100 150 200 V M a xi m um R M S V o l t a g e V RMS 14 21 28 3 1 .5 35 42 56 70 105 140 V M a xi m um D C B l o c k i ng V o l t a g e V DC 20 30 40 45 50 60 80 100 150 200 V M a xi m um A ve r a g e F o r w a r d C ur r e nt . 3 7 5 " ( 9 . 5 m m ) l e a d l e ng t h a t Tc = 9 0 O C IAV 2 0 .0 A P e a k F o r w a r d S ur g e C ur r e nt : 8 . 3 m s s i ng l e ha l f s i ne w a ve s up e r i m p o s e d o n r a t e d l o a d ( J E D E C m e t ho d ) IFSM 200 A M a xi m um F o r w a r d V o l t a g e a t 1 0 . 0 A , p e r l e g VF M a xi m um D C R e ve r s e C ur r e nt TA = 2 5 O C a t R a t e d D C B l o c k i ng Vo l t a g e TA = 1 0 0 O C IR 0 .5 100 RθJ C 2 TJ - 5 0 TO + 1 2 5 O C T STG - 5 0 TO + 1 5 0 O C PA RA M E TE R 0 .5 5 0 .7 5 0 .8 5 0 .9 2 1 V mA O Ty p i c a l T h e r m a l R e s i s t a n c e O p e r a t i n g J u n c t i o n Te m p e r a t u r e R a n g e S t o r a g e Te m p e r a t u r e R a n g e C/ W Note. Both Bonding and Chip structure are available. STAD-MAY.08.2006 PAGE . 1 25.0 20.0 15.0 10.0 5.0 0 0 50 150 100 PEAK FORWARD SURGE CURRENT, Amps AVERAGE FORWARD CURRENT, Amps RATING AND CHARACTERISTIC CURVES 240 210 8.3ms Single Half Since-Wave JEDEC Method 180 150 120 90 60 30 0 1 2 5 10 20 50 100 O CASE TEMPERATURE, C NO. OF CYCLE AT 60Hz Fig.1- FORWARD CURRENT DERATING CURVE Fig.2- MAXIMUM NON - REPETITIVE SURGE CURRENT 40 20,30,40V FORWARD CURRENT, Amps INSTANTANEOUS REVERSE CURRENT, mA 10 O TJ=100 C 1.0 O TJ=75 C 0.1 0.01 TJ=25 OC 50,60V 10 8 6 4 80,100V 2 1.0 .8 .6 .4 O TJ = 25 C Pulse Width = 300 us 1% Duty Cycle .2 .1 0.001 .3 20 40 60 80 100 120 PERCENT OF INSTANTANEOUS REVERSE VOLTAGE, % Fig.3- TYPICAL REVERSE CHARACTERISTICS STAD-MAY.08.2006 .4 .5 .6 .7 .8 0.9 1.0 140 FORWARD VOLTAGE, VOLTS Fig.4- TYPICAL INSTANTANEOUS FORWARD CHRACTERISTICS PAGE . 2
