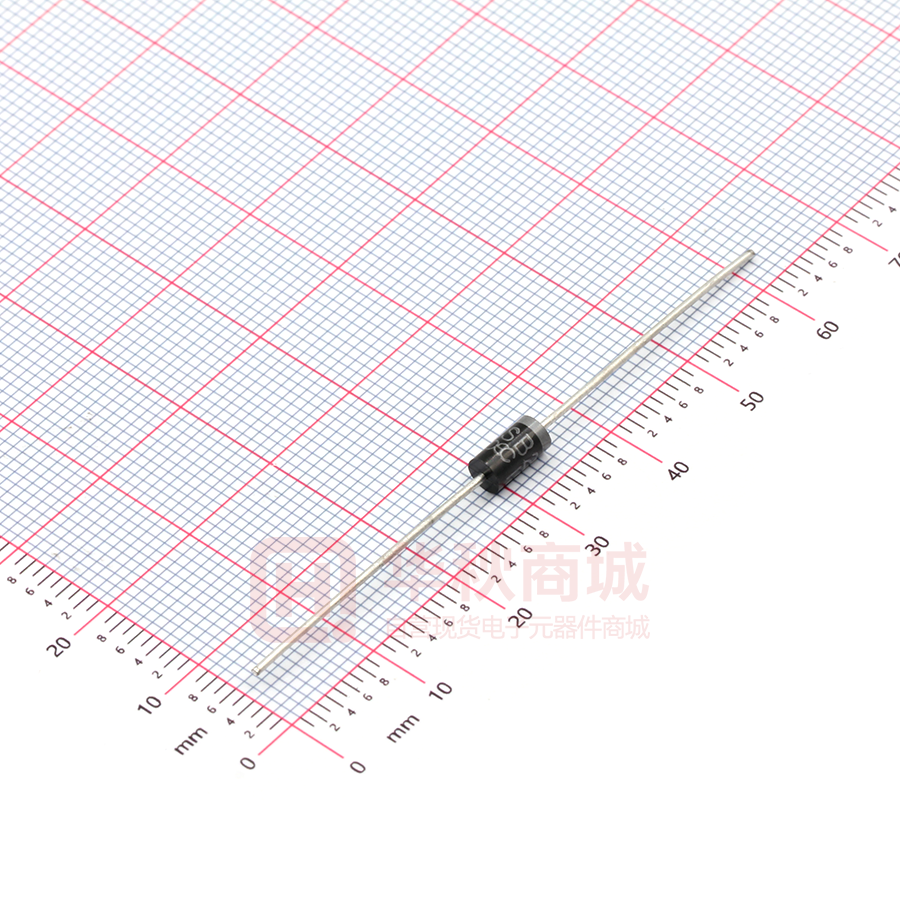

SB260_AY_10001

SB220 SERIES SCHOTTKY BARRIER RECTIFIERS 20 to 60 Volt CURRENT VOLTAGE 2.0 Ampere FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. • Exceeds environmental standards of MIL-S-19500/228 • For use in low voltage,high frequency inverters ,free wheeling , and polarity protection applications. • Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA • Case: DO-15 Molded plastic • Terminals: Axial leads, solderable per MIL-STD-750,Method 2026 • Polarity: Color band denotes cathode end • Weight: 0.014 ounces, 0.397 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. PA RA ME TE R S YMB OL SB220 SB230 SB240 SB250 SB260 UNITS Ma xi mum Re c urr e nt P e a k Re ve r s e Vo lta g e V RRM 20 30 40 50 60 V Ma xi mum RMS Vo lta g e V RMS 14 21 28 35 42 V Ma xi mum D C B lo c k i ng Vo lta g e V DC 20 30 40 50 60 V Ma xi mum A ve r a g e F o rwa r d Re cti fi e d C urre nt 0 .3 7 5 " ( 9 .5 mm) le a d le ng th ( S e e F i g ur e 1 ) I F (AV ) 2 .0 A P e a k F o rwa r d S ur g e C ur re nt : 8 .3 ms s i ng le ha lf si ne -wa ve s up e ri mp o s e d o n r a te d lo a d IF S M 50 A Ma xi mum F o rwa r d Vo lta g e a t 2 .0 A VF 0 .5 0 0 .7 0 V IR 0 .2 20 0 .1 20 mA Ma xi mum D C Re ve r s e C urr e nt a t Ra te d D C B lo c k i ng Vo lta g e Typ i c a l The rma l Re s i s ta nce (No te 2 ) Op e r a ti ng J unc ti o n a nd S to ra g Te mp e r a tur e Ra ng e T J =2 5 O C T J =1 0 0 O C T J ,T S TG O 35 R θJA -5 5 to +1 2 5 - 5 5 to +1 5 0 C / W O C NOTES: 1.Pulse Test :300µsec pulse with, 1% Duty Cycle. 2.Thermal resistance junction to lead P.C. B mounted 0.375”(9.5mm) lead length. April 20,2016-REV.07 PAGE . 1 Percent of Reverse Voltage (%) SB220 SERIES 120 100 80 60 20~30V 40 40~60V 20 0 0 25 50 75 100 125 150 TJ, Junction Temperature (°C) Fig.5 Operating Temperature Derating Curve April 20,2016-REV.07 PAGE . 2 SB220 SERIES Part No_packing code_Version SB220_AX_00001 SB220_AY_10001 SB220_B0_00001 SB220_B0_10001 SB220_R2_00001 SB220_R2_10001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING April 20,2016-REV.07 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 3 SB220 SERIES Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. April 20,2016-REV.07 PAGE . 4
