SB360_AY_10001

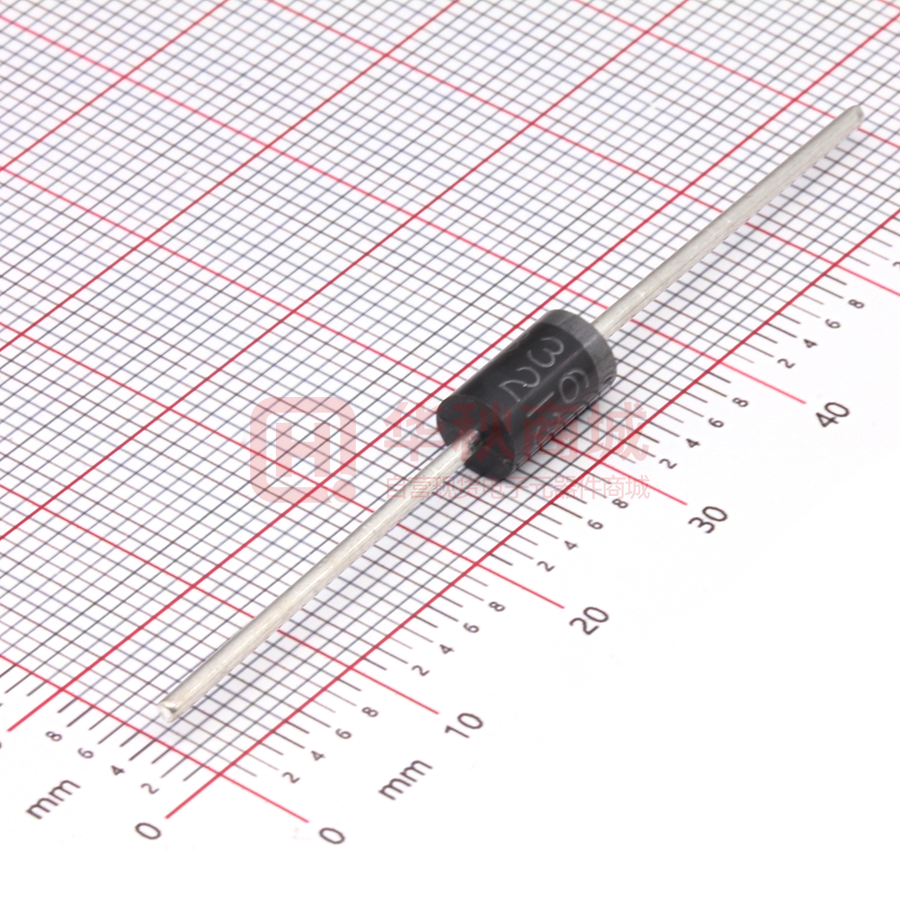

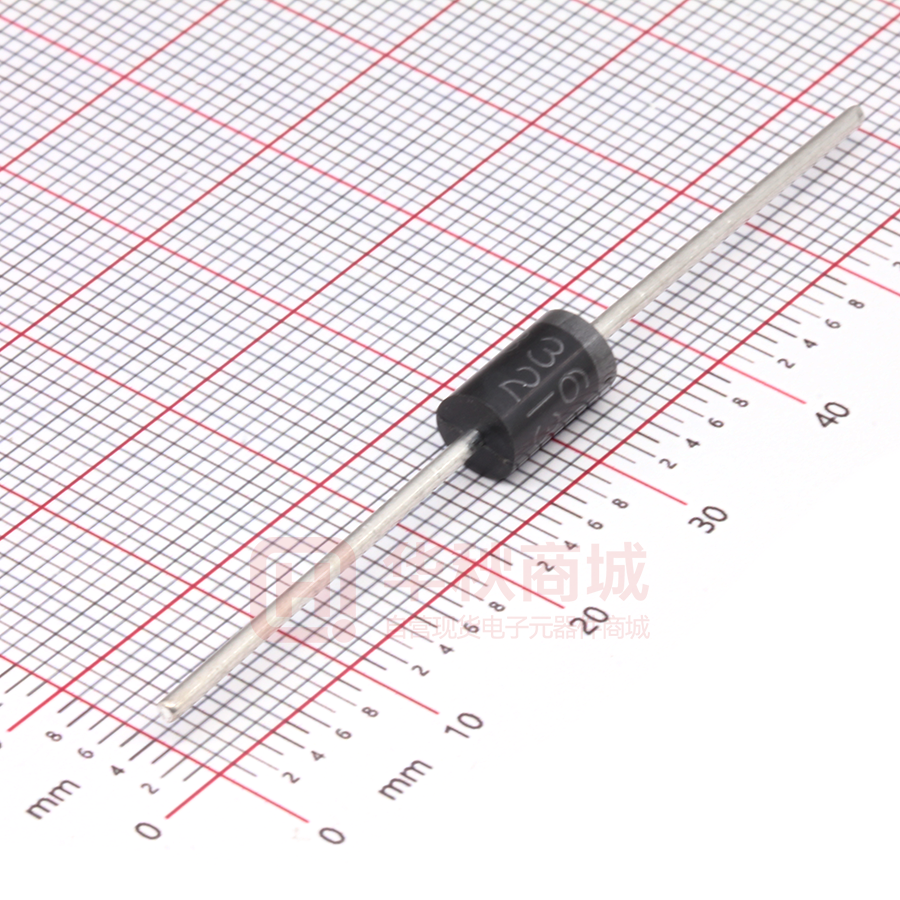

SB320~SB3100 SCHOTTKY BARRIER RECTIFIERS 20 to 100 Volts VOLTAGE CURRENT 3.0 Amperes FEATURES 0.052(1.3) 0.048(1.2) 1.0(25.4)MIN. • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound • Exceeds environmental standards of MIL-S-19500/228 • For use in low voltage,high frequency inverters, free wheeling, and polarity protection applications 0.375(9.5) 0.285(7.2) • In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA • Case: DO-201AD Molded plastic • Terminals: Axial leads, solderable per MIL-STD-750,Method 2026 0.210(5.3) 0.188(4.8) 1.0(25.4)MIN. • Polarity: Color band denotes cathode • Mounting Position: Any • Weight: 0.0395 ounces, 1.122 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. PA RA ME TE R S YMB OL SB320 SB330 Ma xi m um Re c urre nt P e a k Re ve rs e Vo lta g e V RRM 20 30 40 50 60 80 100 V Ma xi m um RMS Vo lta g e V RMS 14 21 28 35 42 56 70 V Ma xi m um D C B lo c k i ng Vo lta g e V DC 20 30 40 50 60 80 100 V Ma xi m um A ve ra g e F o rwa rd Re c ti fi e d C urre nt .3 7 5 " (9 .5 m m) le a d le ng th a t T L =7 5 O C IF (AV ) 3 .0 A P e a k F o rwa rd S urg e C urre nt : 8 .3 ms s i ng le ha lf s i ne -wa ve s up e ri m p o s e d o n ra te d lo a d (J E D E C m e tho d ) IF S M 80 A Ma xi m um F o rwa rd Vo lta g e a t 3 .0 A (No te 3 ) VF 0 .5 0 .7 5 0.85 V IR 0 .2 30 0 .1 30 0.5 30 mA Ma xi m um D C Re ve rs e C urre nt a t Ra te d D C B lo c k i ng Vo lta g e Typ i c a l The rma l Re s i s ta nce (No te 2 ) (No te 1 ) (No te 1 ) Op e ra ti ng J unc ti o n a nd S to ra g e Te mp e ra ture Ra ng e T J =2 5 O C T J =1 0 0 O C SB380 SB3100 50 12 15 R θJ A R θJ C R θJ L T J ,T S TG SB340 SB350 SB360 -5 5 to +1 2 5 UNITS O -5 5 to +1 5 0 C / W O C Notes : 1. Measured at ambient temperature at a distance of 9.5mm from the case 2. Minimum Pad Area 3. Pulse test : 300μs pulse width , 1% duty cycle November 19,2010-REV.01 PAGE . 1 SB320~SB3100 90 5.0 =20-30V =40-100V 4.0 3.0 2.0 RESISTIVE OR INDUCTIVE LOAD 1.0 0 0 20 40 60 80 100 120 140 160 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT AMPERES RATING AND CHARACTERISTIC CURVES 80 70 60 50 40 30 20 10 1 2 LEAD TEMPERATURE, OC Fig.1- FORWARD CURRENT DERATING CURVE 10 20 50 100 Fig.2- MAXIMUM NON - REPETITIVE SURGE CURRENT 10 50 1.0 O TJ = 100 C 0.1 O TJ = 75 C 0.01 O TJ = 25 C V RRM =20-40V V RRM =50-100V .001 0 20 40 60 80 100 PERCENT OF INSTANTANEOUS REVERSE VOLTAGE,(%) Fig.3- TYPICAL REVERSE CHARACTERISTICS November 19,2010-REV.01 INSTANTANEOUS FORWARD CURRENT AMPERES INSTANTANEOUS REVERSE CURRENT, mA 5 NO. OF CYCLE AT 60HZ TJ = 25 OC f = 1.0mHz Vsig= 50mVp-p 10 20-40V 50-60V 80-100V 1.0 0.1 0 .2 .4 .6 .8 INSTANTANEOUS FORWARD VOLTAGE, VOLTS Fig.4- TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS PAGE . 2
