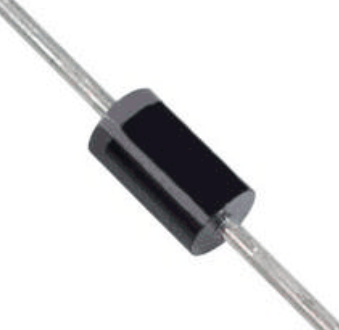

SB560L LOW VF SCHOTTKY BARRIER RECTIFIERS VOLTAGE 60 Volt CURRENT 5 Ampere FEATURES 1.0(25.4)MIN. • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. 0.052(1.3) 0.048(1.2) • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications. 0.375(9.5) 0.285(7.2) • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.210(5.3) 0.188(4.8) 1.0(25.4)MIN. MECHANICAL DATA • Case: DO-201AD Molded plastic • Terminals: Axial leads, solderable per MIL-STD-750,Method 2026 • Polarity: Color band denotes cathode • Weight: 0.04 ounces, 1.142 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. PA RA M E T E R SY MBO L VA L UE UNI TS M a ximum R e c ur r e nt P e a k R e ve r s e Vo lt a g e V RRM 60 V M a ximum R M S Vo lt a g e V RM S 42 V M a ximum D C B lo c k ing Vo lt a g e V DC 60 V M a ximum A ve r a g e F o r w a r d R e c t if i e d C ur r e nt ( S e e F ig 3 ) I F ( AV) 5 A P e a k F o r w a r d S ur g e C ur r e nt : 8 . 3 m s s ing le ha lf s ine - w a ve s up e r imp o s e d o n r a t e d lo a d I FSM 150 A M a ximum F o r w a r d Vo l t a g e a t 5 A VF 0. 49 V IR 0.5 50 mA R θJ L 10 TJ -55 t o + 150 O C T ST G -55 t o + 150 O C M a ximum D C R e ve r s e Cur r e nt a t R a t e d D C B lo c k i ng Vo lt a g e Ty p ic a l The r ma l R e s i s t a nc e ( No t e 1 ) O p e r a t ing J unc t io n Te mp e r a t ur e R a ng e S t o r a g e Te mp e r a t ur e R a ng e TJ= 2 5 OC TJ= 1 00 OC O C / W NOTES : 1. Thermal Resistance Junction to Lead Vertical PC Board Mounting 0.375” (9.5mm) Lead Lengths. May 18,2016­REV.03 PAGE . 1 SB560L IR, Leakage Current (mA) 100 TJ = 100°C 1 TJ = 150°C TJ = 25°C TJ = 75°C 0.1 0 0.1 0.2 0.3 0.4 0.5 0.6 1 TJ = 25°C 0.1 0.01 40 60 80 100 VF, Forward Voltage (V) Percent of Rated Peak Reverse Voltage (%) Fig.1 Typical Forward Characteristics Fig.2 Typical Reverse Characteristics 6 IF, Average Forward Current (A) TJ = 100°C 10 20 5 4 3 2 1 0 0 25 50 75 100 125 150 TC, Case Temperature (°C) CJ, Junction Capacitance (pF) IF, Forward Current (A) 10 10000 1000 100 10 0.1 1 10 100 VR, Reverse Bias Voltage (V) Fig.3 Forward Current Derating Curve Fig.4 Typical Junction Capacitance under Bias Reverse Voltage (V) 80 60 40 20 0 0 25 50 75 100 125 150 TJ, Junction Temperature (°C) Fig.5 Operating Temperature Derating Curve May 18,2016­REV.03 PAGE . 2 SB560L PART NO PACKING CODE VERSION Part No Packing Code Package Type Packing Type Marking Version SB560L_AY_00001 DO-201AD 1.25K pcs / box SB560L Halogen free SB560L_B0_00001 DO-201AD 500 pcs / box SB560L Halogen free SB560L_R2_00001 DO-201AD 1.25K pcs / 13" reel SB560L Halogen free For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING May 18,2016­REV.03 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 3 SB560L Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. May 18,2016­REV.03 PAGE . 4
